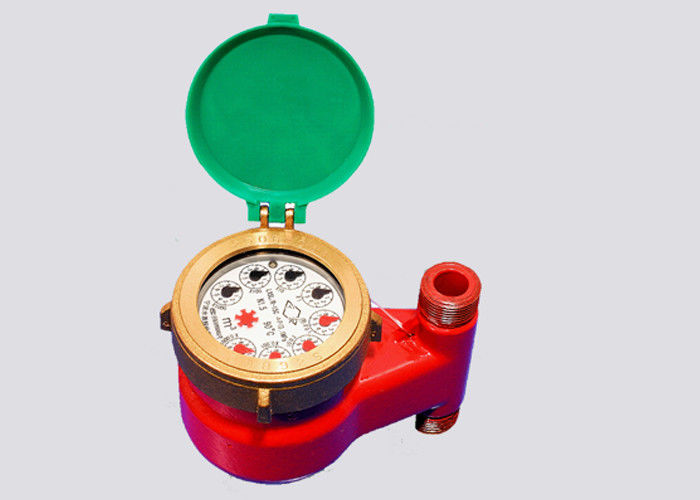

Vertical Type Hot Water Meter Dry Dial For Residential Water Metering

Vertical Type Hot Water Meter Dry Dial For Residential Water Metering

Vertical Type Hot Water Meter Dry Dial For Residential Water Metering

Product Details:

Place of Origin: China
Brand Name: Purescience
Certification: ISO 4064B, GB/T19001
Model Number: LXSGR15

Payment & Shipping Terms:

Minimum Order Quantity: 500 pieces
Price: USD 5 - USD10
Packaging Details: unit pack by brown box, pallet
Delivery Time: 4-5 weeks
Payment Terms: L/C, D/P, T/T
Supply Ability: 2,800,000 sets per year
Contact Now
Detailed Product Description
Description: Heat Water Meter Port Diameter: DN15 - DN50
End Connect: Thread DN15 - 40, Flange DN50 Type: Dry Dial
Accuracy: + / - 2% @ Cold Water Operation Pressure: 150 Psi / 1.0 Mpa
Material: Plastic Function: Totalizer , Flow Rate

Heat water meter for residential water metering, Heat supply, Vertical type multi jet, PN16


Product description:
This high quality multi jet water meter by ISO 4064-2005, are used for heat flow measurement. It is dry dial type, vane wheel. Available in sizes 15mm to 25 mm with nominal flow rates of Qn 1.5m³/h to Qn 15m³/h. It's for cold water volumetric measurement, or hot water up to 90 ℃.

Feature:

  • Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
  • R value is R80
  • Suitable for both cold and warm water applications
  • Replaceable meter inserts available
  • Good readability even at extreme operational conditions
  • Optionally retrofittable with pulse contactors

Working condition:

  • Water temperature:0.1℃~40℃ for cold water
    30℃~90℃ for hot water meter.
  • Water pressure: ≤1.0 Mpa

Note:

  • Measuring accuracy conform to ISO 4064 class B standard..
  • Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:
(1)  Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.


Parameters


DescriptionUnitHydraulic data and dimensions
Nominal sizemm(inch)DN15 (1/2")DN20(3/4")
Overload flow rate (Qs)m3/h23
Permeanent flow rate (Qp)m3/h11.5
Transitional flow rate (Qt)l/h80120
Minimum flow rate (Qmin)l/h2030
Min readingl0.050.05
Max readingl99999.999999999.9999
Max work pressureMPa1.61.6
Pressure difference at QsMpa<0.1<0.1
Lmm165190
Imm245290
Hmm135135
hmm36.536.5
Bmm9494
DinchG3/4BG1B
dinchR1/2R3/4
weightwith connectionskg1.491.75
without connections1.291.45



Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line
Vertical Type Hot Water Meter Dry Dial For Residential Water Metering
Base water meter
Vertical Type Hot Water Meter Dry Dial For Residential Water Metering
