    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO 4064B, GB/T19001
    Model Number: LXSG25P

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pieces
    Price: USD 5 - USD10
    Packaging Details: unit pack by brown box, pallet
    Delivery Time: 4-5 weeks
    Payment Terms: L/C, D/P, T/T
    Supply Ability: 2,800,000 sets per year
    Detailed Product Description
    Product Name: Impeller Type Multi-jet Water Meter Port Size: DN15 - DN50
    Port Connect: Thread Or Flange Meter Reading System: Tele Reading
    Type: Dry Dial Accuracy: + / - 2% @ Cold Water
    Operation Pressure: 150 Psi / 1.0 Mpa Standard: ISO4064 , GBT778 , Q/320700JR05-2003
    Function: Totalizer , Flow Rate

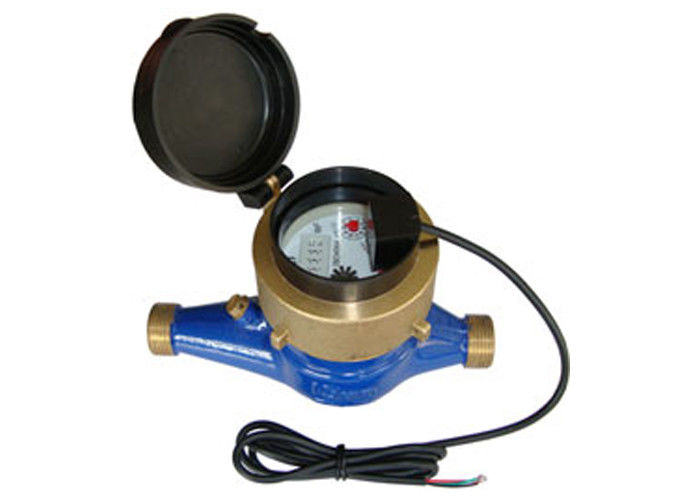

    Multi jet water meter impeller type with pulse output contact for control, metering or remote display DN25



    The impeller type Multi-jet water meter with pulse output contact for control, metering or remote display of flow rate of cold water.



    Feature:

    • Large measuring range, high flow accuracy
    • Steady error curve
    • Long service life
    • Reliable operation
    • Magnetic shield protection
    • Extremely low head loss and extended measureing range
    • Sealed and vaccum runner without condensation problem
    • Be equiped with pulse output (the measured volume per pulse is available with 0.01m3/Pulse and 0.1m3/Pulse)



    Note:

    • Measuring accuracy conform to ISO 4064 class B standard..
    • Available with different length on request. Available in hot water meter on request.

    Working condition:

    • Water temperature:0.1℃~50℃
    • Water pressure: ≤1.6Mpa

    Maximum Permissible Error:

    (1)  Between qt (included) and qs is ±2%;
    (2) Between qmin and qt (excluded) is ±5%.



    Flow error curve

    Peller Type Dry Dial Water Meterim With Thread / Flange Port Connect , DN15 - DN50 Port Size



    Data sheet

    Description Unit Hydraulic data and dimensions
    Nominal size mm DN15 DN20 DN25 DN32 DN40 DN50
    inch 1/2 3/4 1 1-1/4 1-1/2 2
    Overload flow rate (Qs) m3/h 3 5 7 12 20 30
    Permeanent flow rate (Qp) m3/h 1.5 2.5 3.5 6 10 15
    Transitional flow rate (Qt) l/h 120 200 280 480 800 3000
    Minimum flow rate (Qmin) l/h 30 50 70 120 200 450
    Min reading l 0.05 0.05 0.05 0.05 0.05 0.05
    Max reading l 99999 99999 99999 99999 999999 999999
    Max work pressure MPa 1.6 1.6 1.6 1.6 1.6 1.6
    Pressure difference at Qs Mpa <0.08 <0.08 <0.08 <0.08 <0.08 <0.08

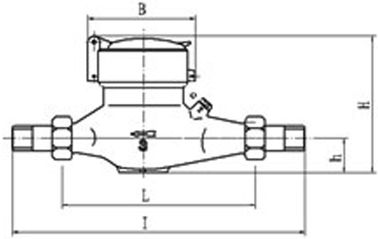

    L mm 145 190 260 260 245 300
    165 300
    I mm 225 292 380 384 373 428
    245 428
    H mm 123 123 128 128 182 182
    h mm 27 27 29 29 65 65
    B mm 90 90 90 90 130 130
    weight with connections kg 1.09 1.24 1.74 2.07 3.40 5.30
    1.15 3.60
    without connections 1.22 1.51 2.17 2.79 4.35 6.60
    1.32 4.55



    Flow curve.

    Peller Type Dry Dial Water Meterim With Thread / Flange Port Connect , DN15 - DN50 Port Size

    Competitive Advantage:

    • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
    • Strict process control
    • Advanced calibration equipment
    • Engineer team

    Production line

    Peller Type Dry Dial Water Meterim With Thread / Flange Port Connect , DN15 - DN50 Port Size

    Base water meter

    Peller Type Dry Dial Water Meterim With Thread / Flange Port Connect , DN15 - DN50 Port Size
