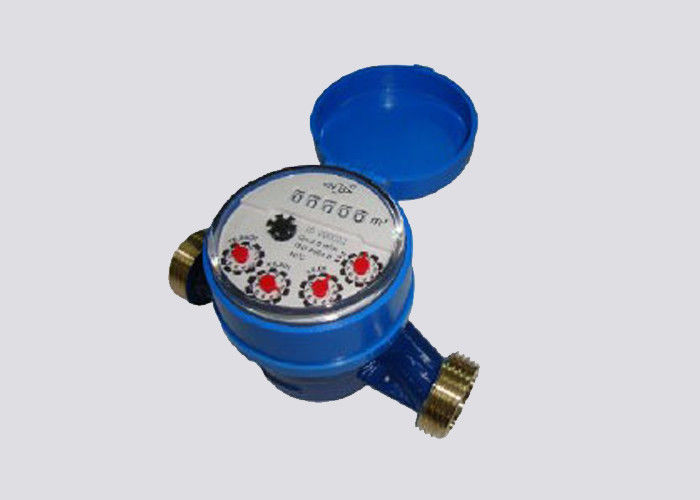

ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch

ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch

    • ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch
  • ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO 4064, GB/T19001
    Model Number: LXSG-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pieces
    Price: USD 5 - USD10
    Packaging Details: unit pack by brown box, pallet
    Delivery Time: 4-5 weeks
    Payment Terms: L/C, D/P, T/T
    Supply Ability: 2,800,000 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Multi Jet Cold Water Meter Port Size: 1/2" - 2"
    Port Connect: Thread 1/2" Remote Reading: Pulse Emitter
    Type: Dry Dial Accuracy: + / - 2% @ Cold Water
    Operation Pressure: 150 Psi / 1.0 Mpa Material: Brass
    Function: Totalizer , Flow Rate
    High Light:

    multijet water meter

    ,

    Dry Dial water meter

    ISO4064 Class B multi jet water meter for utility volumetric flow measurement port 1/2 inch



    Our multi jet water meter is made of brass, plastic or iron as requested, we produce high quality multi jet water meter, it is dry dial type, vane wheel. Available in sizes 15mm to 50 mm with nominal flow rates of Qn 1.5m³/h to Qn 15m³/h. It's for cold water volumetric measurement, or hot water up to 90 ℃.



    Key Features:

    • The Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
    • R value is R80 / 100 / 125 / 160 as requested
    • Suitable for both cold and warm water applications
    • Replaceable meter inserts available
    • Good readability even at extreme operational conditions
    • Optionally retrofittable with pulse contactors

    Operate condition:

    • Water temperature:0.1℃~40℃ for cold water
      30℃~90℃ for hot water meter.
    • Water pressure: ≤1.0 Mpa

    Note:

    • Measuring accuracy conform to ISO 4064 class B standard..
    • Available with different length on request. Available in hot water meter on request.

    Maximum Permissible Error:

    (1)  Between qt (included) and qs is ±2%;
    (2) Between qmin and qt (excluded) is ±5%.



    Flow error curve

    ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch 0

    Flow curve

    ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch 1



    Data sheet

    Description Unit Hydraulic data and dimensions
    Nominal size mm(inch) DN15 (1/2") DN20(3/4")
    Overload flow rate (Qs) m3/h 2 3
    Permeanent flow rate (Qp) m3/h 1 1.5
    Transitional flow rate (Qt) l/h 80 120
    Minimum flow rate (Qmin) l/h 20 30
    Min reading l 0.05 0.05
    Max reading l 99999.9999 99999.9999
    Max work pressure MPa 1.6 1.6
    Pressure difference at Qs Mpa <0.1 <0.1
    L mm 165 190
    I mm 245 290
    H mm 135 135
    h mm 36.5 36.5
    B mm 94 94
    D inch G3/4B G1B
    d inch R1/2 R3/4
    weight with connections kg 1.49 1.75
    without connections 1.29 1.45



    Competitive Advantage:

    • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
    • Strict process control
    • Advanced calibration equipment
    • Engineer team

    Production line

    ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch 2

    Base water meter

    ISO4064 Class B Multi Jet Water Meter For Utility Volumetric Flow Measurement Port 1/2 Inch 3
