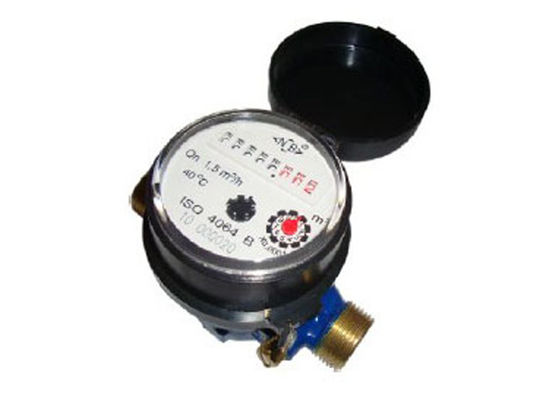

Plastic Vane Wheel Multi Jet Water Meter For Residential Volumetric Measurement

Plastic multi jet water meter for residential volumetric measurement of water flow R=80 super dry

This plastic vane wheel water meter is a super dry dial register with optional a pulse emitter for tele reading. Available in sizes 15mm to 20 mm with nominal flow rates of Qn 1.5m³/h to Qn 15m³/h. It's for cold water volumetric measurement, or hot water up to 90 ℃.

Feature:

• Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
• R value is R80
• Suitable for both cold and warm water applications
• Replaceable meter inserts available
• Good readability even at extreme operational conditions
• Optionally retrofittable with pulse contactors

Working condition:

• Water temperature:0.1℃～40℃ for cold water
  30℃～90℃ for hot water meter.
• Water pressure: ≤1.0 Mpa

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1)  Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

Flow error curve

Flow curve

Data sheet

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Production line

Base water meter
