Clear Water Filter Cartridge Replacement For Counter Top Water Filter 1/4" Inlet / Outlet

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	FS10-04C

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	4 weeks
Payment Terms:	L/C, T/T, D/P

Contact Now

Detailed Product Description

Product Name:	PP Cartridge Filter Housing	Material Of Construction:	Polypropylene PP
Operation Pressure:	0.8 Mpa	Seal:	Single O-ring
Port Connect:	Threaded BSP , NPT	Gasket:	Buna-N , EPDM
Filter Element:	Dia. 2.5" X 20",	Application:	5 Stage RO 50GPD
High Light:	industrial filter cartridges , stainless steel filter cartridges

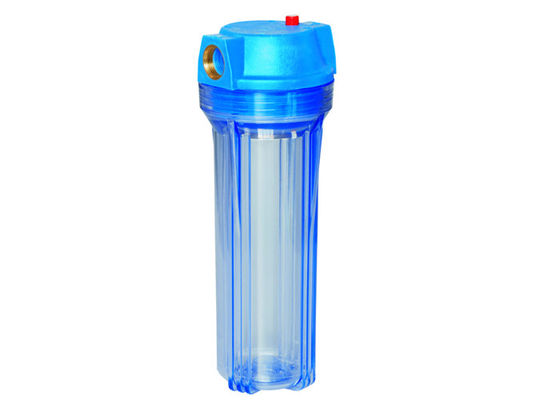

Clear cartridge filter housing for counter top water filter 1/4" inlet/outlet

Operation conditions

The highest pressure can be withstanded by the residential water filter: 125 psi / 8.8 kg / cm2
The highest tempearature: 50
Don't keep the filter from the sunshine, not used in buildings over 20th floor.

Data sheet

Part No.	Inlet/outlet	Thread	Cartridge Length	Housing color	Cap color	Dimensions (mm)	Pack
FS-CB14	1/4"	NPT	9-7/8" (10")	clear	black	300 x 120	12 pcs
FS-CW14	1/4"	NPT	9-7/8" (10")	clear	white	9-7/8" (10")	12 pcs
FS-WB14	1/4"	NPT	9-7/8" (10")	white	black	9-7/8" (10")	12 pcs
FS-WW	1/4"	NPT	9-7/8" (10")	white	white	9-7/8" (10")	12 pcs

Technical Parameters

Contents	Value
Contents	Value
Operate Pressure (Max)	1.0 Mpa
Operate emperature (Max)	50℃
Materials of construction	Housing body: polypropylene, cover: ABS
Port of Inlet/outlet	NPT, or FNPT, BSP, Flange, grooved, Tri-clamp
Ventilation	1/4" NPT
Drain out	1/4" NPT

Descriptions

The 10" slim PP cartridge filter housings, are designed to be compativle with most standard filter cartridge element in 9-3/4" and 9-7/8" (usually as 10"), and 20" lengths. The standard diameter is 2-1/2" (slim line), or 4-1/2" big blue line.

Accessories

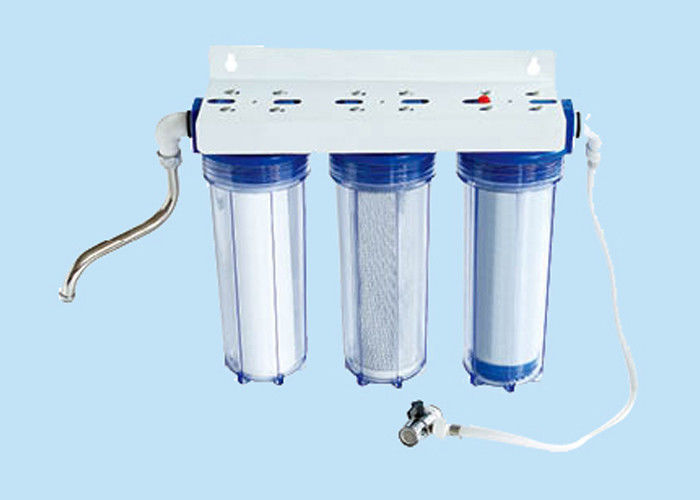

-Count top water filter

Clear Water Filter Cartridge Replacement For Counter Top Water Filter 1/4" Inlet / Outlet 0

Mount Bracket

Clear Water Filter Cartridge Replacement For Counter Top Water Filter 1/4" Inlet / Outlet 1

Filter cartridge element

Clear Water Filter Cartridge Replacement For Counter Top Water Filter 1/4" Inlet / Outlet 2

Features:

Polypropylene molded construction
FNPT / BSP thread connection
Suitable for PP spun filter cartidge, string wound filter cartridge, membrane pleated filter cartridge
Double o-ring seals
Cover vent and drain valve

Applications:

Water Treatment	Oil & Gas	Automobiles	Cement
Refineries	Textiles	Petro Chemicals	Power Plant
Pharma & Biotech	Steel Industries	Dyes & Intermediates	Paints & Inks
Sugar Industry	Electronics	Mining	Food & beverage
Edible Oil	Aeronautics	Fertilizers	Pipe
Pulp & Paper	Electoplating	Aerospace	Chemicals
Dairy, Food & Beverage		Aerospace , Defence & Marine

Competitive advantage

Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
