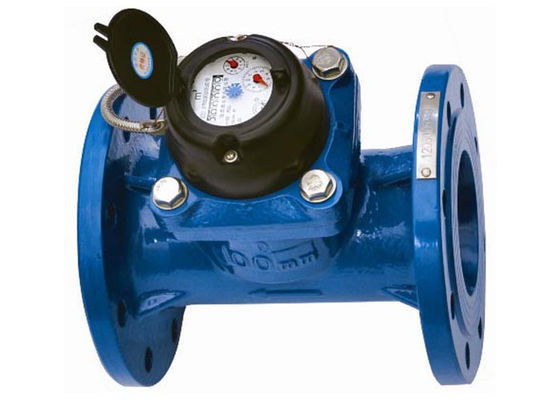

Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement

Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement

    • Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement
    • Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement
  • Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO 4064B, GB/T19001
    Model Number: IXLS300

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pieces
    Price: USD 5 - USD10
    Packaging Details: unit pack by brown box, pallet
    Delivery Time: 4-5 weeks
    Payment Terms: L/C, D/P, T/T
    Supply Ability: 2,800,000 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Woltman Water Meter Positive Displacement Port Connect: Flange
    Port Size: DN50 - DN300 Magnetic: Permanent
    Seal: Vacuum Accuracy: + / - 2% @ Cold Water
    Operation Pressure: 150 Psi / 1.0 Mpa Standard: ISO4064 , GBT778 , Q/320700JR05-2003
    Function: Totalizer , Flow Rate
    High Light:

    totalizing water meter

    ,

    woltman type water meter



    Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement



    The dry dial woltman water meter can be used for a remote reading transmission system as equipped with a built-in sensor.



    Application

    --Measuring the volume of cold (hot) water passing through the pipeline

    Feature:

    --Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;

    --Dry-dial, Magnetic drive sensitive action, small pressure loss;

    --Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;

    --Selected high quality materials for steady & reliable characteristic;

    --Technical data conform to international standard ISO 4064.

    Working condition

    Water temperature: 0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)

    Water pressure: ≤1Mpa (1.6MPa for special requirement)

    Maximum permissible errors

    • in the lower zone from qmin inclusive up to but excluding qt is ±5%
    • in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

    MAIN TECHNICAL SPECIFICATIONS

    Type

    Size

    (mm)

    Class

    qs Overload

    Flow

    qp Permanent

    Flow

    qt Transitional

    Flow

    qmin

    Min.Flow

    Min.

    Reading

    Max.

    Reading

    m3/h m3
    LXLC-50 50 A 30 15 4.5 1.2 0.0002 999,999
    B 3.0 0.45
    LXLC-65 65 A 50 25 7.5 2.0 0.0002 999,999
    B 5 0.75
    LXLC-80 80 A 80 40 12 3.2 0.002 999,999
    B 8.0 1.2
    LXLC-100 100 A 120 60 18 4.8 0.002 999,999
    B 12 1.8
    LXLC-125 125 A 200 100 30 8 0.002 999,999
    B 20 3
    LXLC-150 150 A 300 150 45 12 0.002 999,999
    B 30 4.5
    LXLC-200 200 A 500 250 75 20 0.002 999,999
    B 50 7.5
    LXLC-250 250 A 800 400 120 32 0.002 999,999
    B 80 12
    LXLC-300 300 A 1200 600 180 48 0.02 9,999,999











































    DIMENSIONS

    Type Size

    L

    Length

    H

    Height

    Connecting flange
    φD1 OD

    φD2 Bolt circle

    diameter

    Connecting

    Bolts (n-M)

    mm
    LXLC-50 50 200 261 165 125 4-M16
    LXLC-65 65 200 271 185 145 4-M16
    LXLC-80 80 225 279 200 160 8-M16
    LXLC-100 100 250 289 220 180 8-M16
    LXLC-125 125 250 299 250 210 8-M16
    LXLC-150 150 300 319 285 240 8-M20
    LXLC-200 200 350 346 340 295 8-M20(1.0MPa)
    12-M20(1.6MPa)
    LXLC-250 250 400 434 395 350 12-M20(1.0MPa)
    450 434 405 355 12-M24(1.6MPa)
    LXLC-300 300 450 459 445 400 12-M20(1.0MPa)
    500 459 460 410 12-M24(1.6MPa)

































    NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.
