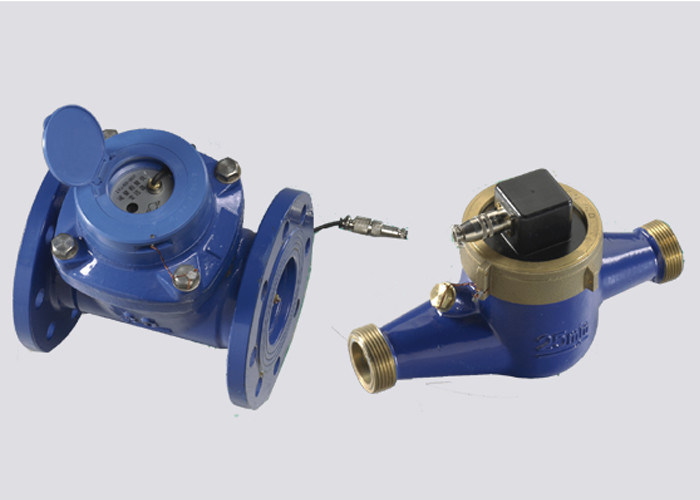

PN 16 DN300 Ductile Iron Housing Turbine Water Meter For Irrigation Hydrometer

PN 16 DN300 Ductile Iron Housing Turbine Water Meter For Irrigation Hydrometer

    • PN 16 DN300 Ductile Iron Housing Turbine Water Meter For Irrigation Hydrometer
    • PN 16 DN300 Ductile Iron Housing Turbine Water Meter For Irrigation Hydrometer
  • PN 16 DN300 Ductile Iron Housing Turbine Water Meter For Irrigation Hydrometer

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO 4064B, GB/T19001
    Model Number: LXXG-300FX

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 pieces
    Price: USD30 - USD300
    Packaging Details: unit pack by brown box, pallet
    Delivery Time: 4-5 weeks
    Payment Terms: L/C, D/P, T/T
    Supply Ability: 2,800,000 sets per year
    Contact Now
    Detailed Product Description
    Type: Remote Reading Irrigation Hydrometer Drive: Turbine Impeller
    Port Size: DN50 - DN500 Pressure: PN16
    Signal: Pulse (optional) Accuracy: + / - 2% @ Cold Water
    Protection: IP65 Standard: ISO4064 , GBT778 , Q/320700JR05-2003
    Function: Totalizer , Flow Rate
    High Light:

    woltman flow meter

    ,

    totalizing water meter

    Turbine water meter for irrigation hydrometer, DN300 ductile iron housing, PN 16, with pulse emitter for remote reading



    The irrigation water meters are less accurate than positive displacement and jet type meters at lower flow rates, however the flow path is straight through the meter, allowing for higher flow rates and less pressure loss than displacement style meters. The measuring assembly does not occupy or severely restrict the flow path resulting in a low pressure drop acrosss the meter. They are the meter of choice along with mag meters for larger commercial users and as master meters for water distribution system. Filters or strainers are generally required to be installed up-stream of the meter to protect the measuring element from sand, ice crystal or other debris that could enter the water distribution system.
    The irrigation water meters available in sizes: DN 50 / 2" - DN500 / 20" with various pulse output options. Suitable for water irrigation applications. A removable Mechanical counter assembly ensures fast and easy servicing.



    Feature:

    • Suitable for sandy/ dirty irrigation water
    • MID approved ≤R40
    • Replaceable "drop-in" mechanism
    • Low Head Loss
    • IP68 Ingress Protection
    • Tamper Resistant design




    Note:

    • Measuring accuracy conform to ISO 4064 class B standard..
    • Available with different length on request. Available in hot water meter on request.

    Working condition:

    • Water temperature:0.1℃~40℃( 0.1℃~90℃ for hot water meter)
    • Water pressure: ≤1.0Mpa

    Maximum Permissible Error:

    (1) in the lower zone from qmin inclusive up to but excluding qt is ±5%

    (2) in the upper zone from qt inclusive up to and including qs is ±2%

    (3) Hot water meter ±3%



    Data sheet

    Model

    Dia

    (mm)

    Class

    ISO4064

    Overload

    flow (Qs)

    Permanent

    flow (Qp)

    Transitional

    flow (Qt)

    Min flow

    Qmin

    Min reading

    Max reading

    m3/h

    M3

    IXLC-50

    50

    A

    30

    15

    4.5

    1.2

    0.0002

    999,999

    B

    3.0

    0.45

    IXLC-65

    65

    A

    50

    25

    7.5

    2.0

    0.0002

    999,999

    B

    5.0

    0.75

    IXLC-80

    80

    A

    80

    40

    12

    3.2

    0.0002

    999,999

    B

    8.0

    1.2

    IXLC-100

    100

    A

    120

    60

    18

    4.8

    0.0002

    999,999

    B

    12

    1.8

    IXLC-125

    125

    A

    200

    100

    30

    8

    0.0002

    999,999

    B

    20

    3

    IXLC-150

    150

    A

    300

    150

    45

    12

    0.0002

    999,999

    B

    30

    4.5

    IXLC-200

    200

    A

    500

    250

    75

    20

    0.0002

    999,999

    B

    50

    7.5

    IXLC-250

    250

    A

    800

    400

    120

    32

    0.0002

    999,999

    IXLC-300

    300

    A

    1200

    600

    180

    48

    0.0002

    999,999













































    Dimension (LXLC)

    Model

    Dia.

    L

    H

    Flange (mm)

    (mm)

    D1 (OD)

    D2 (hole)

    Bolt(n-M)

    IXLC-50

    50

    200

    253

    165

    125

    4-M16

    IXLC-65

    65

    200

    268

    185

    145

    4-M16

    IXLC-80

    80

    225

    284

    200

    160

    8-M16

    IXLC-100

    100

    250

    295

    220

    180

    8-M16

    IXLC-125

    125

    250

    310

    250

    210

    8-M16

    IXLC-150

    150

    300

    339

    285

    240

    8-M20

    IXLC-200

    200

    350

    382

    340

    295

    8-M20(1.0Mpa)

    12-M20(1.6Mpa)

    IXLC-250

    250

    400

    433

    395

    350

    12-M20(1.0Mpa)

    450

    438

    405

    355

    12-M24(1.6Mpa)

    IXLC-300

    300

    450

    483

    445

    400

    12-M20(1.0Mpa)

    500

    488

    460

    410

    12-M24(1.6Mpa)































    Competitive Advantage:

    • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
    • Strict process control
    • Advanced calibration equipment
    • Engineer team
