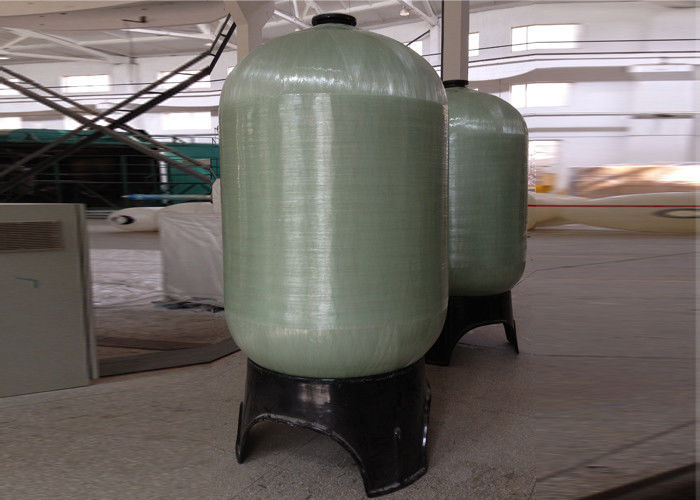

Grey Industrial Water Filter FRP Pressure Tanks 1.0Mpa Dia. 30" To 48"

Grey Industrial Water Filter FRP Pressure Tanks 1.0Mpa Dia. 30" To 48"

    • Grey Industrial Water Filter FRP Pressure Tanks 1.0Mpa Dia. 30" To 48"
  • Grey Industrial Water Filter FRP Pressure Tanks 1.0Mpa Dia. 30" To 48"

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: NSF/ISO9001/SGS
    Model Number: 3672

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: negotiable
    Packaging Details: carton
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Diameter: 36" To 48" Operate Pressure: 1 Mpa / 10 Bar / 150psi
    MOC: Fiberglass Reinforced Plastic Connect Port: 4" UN Top & Bottom Open
    Color: Natural / Grey / Blue / Transparent Standard: NSF / ISO9001 / SGS
    Liner: FRP , PE Operation Temperature: 40 ℃
    High Light:

    water filter tank

    ,

    water tank filter

     FRP Pressure Tanks for industrial water filter 1.0Mpa Size Dia. 30" to 48"



    Specification

    Specification A B C Top Bottom Volume Flow rate Operation Pressure
    (In) (mm) (In) (mm) (In) (mm) (In) (mm) G L m3/hr PSI Mpa Bar
    14×65 350×1620 14.1  360 63.8  1620 65.6  1665 2.5" NPSM / 40.6  154.0  2.5~3.0 150 1 10
    14×65 350×1620 14.1  360 63.8  1620 65.6  1640 4" UN / 40.6  154.0  2.5~3.0 150 1 10
    16×65 400×1620 16.0  405 63.8  1620 64.6  1640 2.5"NPSM / 49.0  185.0  3.2~4.5 150 1 10
    16×65 400×1620 16.0  405 63.8  1620 64.6  1640 4" UN / 49.0  185.0  3.2~4.5 150 1 10
    16×65 400×1620 16.0  405 63.8  1620 64.6  1640 4" UN 4" UN 49.0  185.0  3.2~4.5 150 1 10
    18×65 450×1650 17.7  450 63.8  1620 72.3  1835 4" UN / 66.8  253.0  3.5~4.8 150 1 10
    18×65 450×1650 17.7  450 63.8  1620 72.3  1835 4" UN 4" UN 66.8  253.0  3.5~4.8 150 1 10
    20*72 500 × 1800 19.7 500 69.9 1775 78.8 2000 4" UN / 89.0  337.0  4.1~5.6 150 1 10
    20*72 500 × 1800 19.7 500 69.9 1775 78.8 2000 4" UN 4" UN 89.0  337.0  4.1~5.6 150 1 10
    21×62 530×1600 20.9  530 63.0  1600 72.5  1840 4" UN / 88.0  333.0  4.0~5.5 150 1 10
    21×62 530×1600 20.9  530 63.0  1600 72.5  1840 4" UN 4" UN 88.0  333.0  4.0~5.5 150 1 10
    24*72 600×1800 23.6  600 69.9  1775 78.4  1990 4" UN / 127.0  480 6.2~8.2 150 1 10
    24*72 600×1800 23.6  600 69.9  1775 78.4  1990 4" UN 4" UN 127 480 6.2~8.2 150 1 10



    Drawing

    Grey Industrial Water Filter FRP Pressure Tanks 1.0Mpa Dia. 30" To 48" 0

    Main technical data

    • Material of construction: FRP fiberglass reinforced plastic with PE polyethylene inner shell liner
    • Operating parameters:
      Maximum operating pressure: 1.0 Mpa ( 10 Bar / 150 psi)
      Maximum operation temperature: 40 ℃ ( 104 ℉)
    • Design parameters: 100, 000 cycle test ( stressing test ) , no leakage

    Description

    FRP pressure filter tanks are made of high performance composite materials: FRP liner and FRP filament winding outer shell. Our design provides a continuous seamless inner liner shell with a GF PP inlet for higher strength, temperature and pressure capabilities. High quality PE liner with FRP filament winding.



    Full choice of pressure tanks:

    1. Residential tanks ( 6" to 13" diameter)

    2. Commercial tank ( 14" to 24" diameter)
    3. Industrial tanks (30" to 63" diameter)
    4. Operating Pressure: 150 psi ( 10.5 bars , 1.0 Mpa)
    5. Operating temperature: 120F (40 ℃)



    Applications:

    Residential tanks (Dia.: 6"-13”)

    Water filter, water softener

    Commercial tank (Dia.: 14"-24”)

    Water filter, water softener, prefilter for water treatment and storage

    Industrial tanks (Dia.: 30"-63”)

    Water filter, water softener, prefilter for water treatment and storage



    Competitive advantage

    Our filter tanks offer you fiberglass construction with polyethylene inner shell for outstanding performance and

    durability in harsh chemical environments. The non-destructive, cost-effective solution for commercial/industrial

    water treatment and storage. Each filter tank is 100% factory pressure tested as well as quality inspected

    before leaving. FRP tanks have secure bases and are available in many different configurations depending

    on your application and space requirements. Product are NSF certified.
