Horizontal Ultraviolet Tianium Water Disinfection Products 52GPM 11.8m3 / hour

Horizontal Ultraviolet Tianium Water Disinfection Products 52GPM 11.8m3 / hour

    • Horizontal Ultraviolet  Tianium  Water Disinfection Products 52GPM 11.8m3 / hour
    • Horizontal Ultraviolet  Tianium  Water Disinfection Products 52GPM 11.8m3 / hour
  • Horizontal Ultraviolet  Tianium  Water Disinfection Products 52GPM 11.8m3 / hour

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: CE/cULus/WQA/RoHS
    Model Number: VAL

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pieces
    Price: Negotiable
    Packaging Details: carton with foam insert
    Delivery Time: 3 weeks
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 2000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Ultraviolet Water Disinfection Titanium Model: TI
    Max Operating Pressure: 125 Psi / 8.35bar Min Operating Pressure: 14.5 Psi / 1bar
    Pressure Drop: 0.2bar @ 30 MJ/cm2 Ambient Water Temperature: 2-40˚C ( 36-104˚F )
    Installation: Horizontal Chamber Material: SUS304 / 316L / Titanium
    High Light:

    uv water disinfection system


    ultraviolet water purification

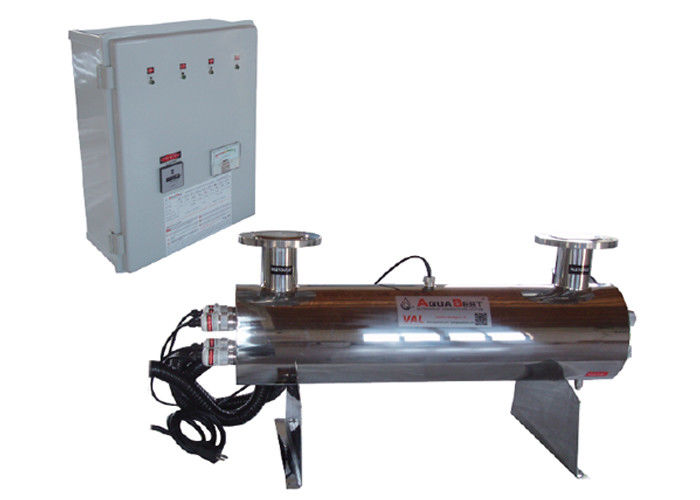

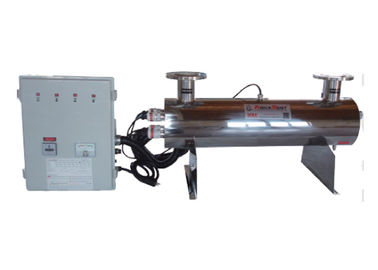

    Tianium UV Disinfection system for seawater desalination RO plant 52GPM 11.8m3/hour 110Watts



    Model ST201 ST321 ST411 ST601 ST741 ST951
    Flow rate ( gpm / m3/hour ) 10 / 2.3 18 / 4.1 24 / 5.5 35 / 7.9 42 / 9.5 52 / 11.8
    Inlet/outlet port ( FNPT/ BSP / DIN) 3/4" 3/4" 1" 1" 1 1/2" 1 1/2"
    Reactor size (cm ) 30 x 9 52 x 9 61 x 9 80 x 9 94 x 9 115 x 9
    Lamp watts (W) 30 36 45 65 80 100
    Power consumption ( W ) 39 42 52 73 88 110
    Ballasts controller 17.6 x 7.4 x 5.3 cm / 6.9" x 2.9" x 2.1"
    Max current 1.1Amp


    Operation parameters:

    • Max operating pressure: 125psi ( 8.62bar )
    • Ambient water temperature: 2℃ - 40℃ ( 36℉ - 104℉ )
    • Hardness: < 7 gpg ( 120 mg/L )
    • Iron: < 0.3ppm ( 0.3 mg/L)
    • Turbidity: < 1NTU
    • UV transmittance: > 75%


    • Lamp life time countdown
    • Lamp replacement reminder
    • Total running / operating days
    • Reset timer
    • Audible alarm
    • Lamp operation indicators
    • 4-log ( 99.99% ) Reduction of bacteria, viruses , protozoan Cysts
    • Reactor chamer: Mirror polished SUS304 / 316L / Titanium
    • Intallation type: vertical / Horizontal upon request


    UV is versatile technology used for disinfecting water, other opaque liquids, hard surfaces and air. Using the same germicidal rays as the sun, but hundreds of times stronger UV offers a reliable, cost effective, environmentally friendly alternative to chemicals and their resulting biproducts. UV Sterilization is a purely physical process not a chemical one so it doesn’t alter water’s chemistry, taste, smell or pH.


    What is ultraviolet?
    Ultraviolet light is part of the light spectrum, which is classified into three wavelength ranges:
    UV-C, from 100 nanometers (nm) to 280 nm
    UV-B :from 280 nm to 315 nm
    UV-A :from 315 nm to 400 nm

    Horizontal Ultraviolet  Tianium  Water Disinfection Products 52GPM 11.8m3 / hour 0

    The Science of Applying UV for Water Treatment
    All living organisms contain DNA (Deoxyribonucleic Acid). DNA provides the mechanism  for all functions needed to sustain life. UV disinfection systems emit UV light that penetrates the outer cell membrane of microorganisms, passes through the cell body, reaches the DNA and alters the genetic material. The microorganism is thereby destroyed in a non-chemical manner and is unable to reproduce.When organisms absorb UV light in the range of 200-300nm, DNA and RNA molecules absorb the UV. The DNA molecule contains all the genetic information needed for replication. UV absorption causes disruption of the nucleic material of the double helix strands. This prevents replication, which is lethal to the cell. The absorption of UV radiation at 254nm causes the formation of dimers along the DNA strands. Dimers are A_A (adenine - adenine), GG (guanine -guanine), T-T (thymine-thymine) compounds as opposed to the normal formation of A-T-G-C- etc.

    Horizontal Ultraviolet  Tianium  Water Disinfection Products 52GPM 11.8m3 / hour 1

    If the dosage is not optimized, then complete inhibition of replication WILL NOT occur. On the other hand, an insufficient UV dosage may cause limited damage to the DNA, which then can, under favorable conditions, repair using repair enzymes. That's why it is extremely critical to impart the OPTIMUM UV dosage to prevent repair. While bacteria have built-in repair enzymes, viruses do not. Therefore, they have to rely on the enzymes of the host cell.


    TOC reduction:

    In ultrapure water applications, Our UV systems are used for the effective reduction of organics, commonly referred to as TOC otherwise known as Total Oxidizable Carbon.

    Horizontal Ultraviolet  Tianium  Water Disinfection Products 52GPM 11.8m3 / hour 2

    UV light in a 185nm wavelength promotes the formation of free radicals, leading to the oxidation of organics into CO2 and H2O and is more powerful than the 254nm used in disinfection applications. Efficient in high volume ultrapure, waste or reclaim applications, Our TOC systems have the flexibility to serve indoor or outdoor installations . Our stainless ultraviolet systems are a safe and effective alternative for TOC destruction, providing low maintenance costs and utilizing non-toxic UV light with minimal byproducts.



    Drinking water


    Underder sink installs and water
    Vending Machines
    Aircraft, boats & recreational
    School & hotels

    Machine water disinfection
    Cosmetics and electronics
    Pond and lake reclamation
    Laundry water

    Food processing


    Soft drinks, fruit drinks and juices
    Pure wash water
    Liuqid sugars, sweeteners and edible oils
    Water based lubricats
    Brewery & windery
    Beverage, bottled water

    Pharmaceuticals, pharmacy
    Laboratory, hospital and clinics
    Maternity labor and delivery area
    Animal husbandry

    Other industires

    Water treatment

    Swimming pool
    Water features

    Waste water treatment
    Water treatment
    Effluent treatment plant
    Seawater deslination
    Brackish water reverse osmosis system


    Competitive advantage

    The Stainless Steel Series UVs are ideal for ponds, aquariums, and water features. These units are constructed of SUS304 or 316L Stainless Steel electropolished and passivated. Stainless steel units have features that allow for quick installation and easy maintenance.  Our Ultraviolet / UV will clear your water in 3-5 days, sometimes overnight, and keep  it that way. Performance is guaranteed when sized, installed and operated according to our instructions.
