Place of Origin: | China |
Brand Name: | Purescience |
Certification: | NSF/ISO9001/SGS |
Model Number: | Residential 06 |
Minimum Order Quantity: | 200 |
---|---|
Price: | negotiable |
Packaging Details: | carton |
Payment Terms: | L/C, T/T, D/P |
Supply Ability: | 100000 pcs per month |
Diameter: | 6" To 13" | Operate Pressure: | 1 Mpa / 10 Bar / 150psi |
---|---|---|---|
MOC: | Fiberglass Reinforced Plastic | Connect Port: | 2.5" NPSM Top Oepn |
Color: | Natural / Grey / Blue / Transparent | Standard: | NSF / ISO9001 / SGS |
Liner: | FRP , PE | Operation Temperature: | 40 ℃ |
High Light: | water filter tank,water tank filter |

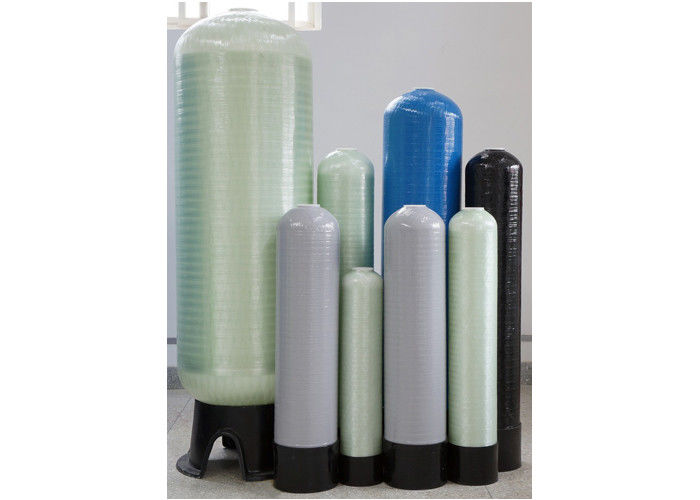

Top open 2.5" NPSM FRP pressure filter tanks for water treatment 1.0Mpa Dia. 6" to 13"
Specification
No | Specification | A | B | C | Top | Bottom | Volume | Flow rate | Operation Pressure | |||||||
(In) | (mm) | (In) | (mm) | (In) | (mm) | (In) | (mm) | G | L | m3/hr | PSI | Mpa | Bar | |||
1 | 06×18 | 150*460 | 6.0 | 150 | 18.0 | 460 | 19.3 | 490 | 2.5" NPSM | / | 2.1 | 8.1 | 0.1~0.3 | 150 | 1 | 10 |
2 | 07×13 | 170*330 | 7.0 | 181 | 12.8 | 325 | 13.0 | 330 | 2.5" NPSM | / | 2.2 | 8.3 | 0.1~0.3 | 150 | 1 | 10 |
3 | 07×24 | 170×610 | 7.0 | 181 | 24.0 | 610 | 25.4 | 645 | 2.5" NPSM | / | 3.8 | 15.0 | 0.1~0.3 | 150 | 1 | 10 |
4 | 07×35 | 170×890 | 7.0 | 181 | 35.0 | 890 | 36.4 | 925 | 2.5" NPSM | / | 5.2 | 19.7 | 0.1~0.4 | 150 | 1 | 10 |
5 | 08×17 | 200×430 | 8.1 | 206 | 16.9 | 430 | 18.3 | 465 | 2.5" NPSM | / | 3.1 | 11.7 | 0.1~0.3 | 150 | 1 | 10 |
6 | 08×20 | 200×500 | 8.1 | 206 | 18.5 | 470 | 19.5 | 495 | 2.5" NPSM | / | 3.5 | 13.4 | 0.1~0.3 | 150 | 1 | 10 |
7 | 08*22 | 200*560 | 8.1 | 206 | 22.1 | 560 | 22.9 | 580 | 2.5" NPSM | 3.9 | 14.7 | 0.1~0.3 | 150 | 1 | 10 | |
8 | 08*24 | 200*600 | 7.9 | 200 | 24.0 | 600 | 24.8 | 630 | 2.5" NPSM | 4.2 | 15.9 | 0.1~0.3 | 150 | 1 | 10 | |
9 | 08×35 | 200×890 | 8.1 | 206 | 35.1 | 890 | 36.2 | 920 | 2.5" NPSM | / | 6.6 | 25.0 | 0.2~0.4 | 150 | 1 | 10 |
10 | 08×44 | 200×1115 | 8.0 | 210 | 43.9 | 1115 | 44.9 | 1140 | 2.5" NPSM | / | 8.7 | 32.9 | 0.2~0.5 | 150 | 1 | 10 |
11 | 09×35 | 220×890 | 9.1 | 232 | 35.1 | 890 | 35.7 | 905 | 2.5" NPSM | / | 8.3 | 31.4 | 0.2~0.5 | 150 | 1 | 10 |
12 | 09×40 | 220×1005 | 9.1 | 232 | 39.6 | 1005 | 40.4 | 1025 | 2.5" NPSM | / | 9.5 | 36.0 | 0.2~0.5 | 150 | 1 | 10 |
13 | 09×42 | 220×1065 | 9.1 | 232 | 42.0 | 1065 | 42.9 | 1090 | 2.5" NPSM | / | 9.5 | 36.0 | 0.2~0.5 | 150 | 1 | 10 |
14 | 09×48 | 220×1215 | 9.1 | 232 | 47.9 | 1215 | 48.5 | 1230 | 2.5" NPSM | / | 12.7 | 48.0 | 0.3~0.6 | 150 | 1 | 10 |
15 | 10×17 | 250×430 | 10.1 | 257 | 16.9 | 430 | 18.1 | 460 | 2.5" NPSM | / | 4.8 | 18.2 | 0.2~0.4 | 150 | 1 | 10 |
16 | 10×35 | 250×890 | 10.1 | 257 | 35.1 | 890 | 36.1 | 915 | 2.5" NPSM | / | 10.2 | 38.6 | 0.5~1.0 | 150 | 1 | 10 |
17 | 10×44 | 250×1115 | 10.1 | 257 | 43.9 | 1115 | 45.1 | 1145 | 2.5" NPSM | / | 13.1 | 49.6 | 0.5~1.4 | 150 | 1 | 10 |
18 | 10×54 | 250×1370 | 10.1 | 257 | 54.2 | 1375 | 55.2 | 1400 | 2.5" NPSM | / | 16.4 | 62.0 | 0.6~1.5 | 150 | 1 | 10 |
19 | 12*48 | 300×1215 | 12.1 | 308 | 47.9 | 1215 | 48.4 | 1225 | 2.5" NPSM | / | 20.6 | 78.0 | 1.6~2.0 | 150 | 1 | 10 |
20 | 12×52 | 300×1320 | 12.1 | 308 | 52.0 | 1320 | 53.3 | 1355 | 2.5" NPSM | / | 22.2 | 84.0 | 1.6~2.2 | 150 | 1 | 10 |
21 | 12×52 | 300×1310 | 12.1 | 308 | 51.6 | 1320 | 53.3 | 1345 | 4.5"Buttress | / | 22.2 | 84.0 | 1.6~2.2 | 150 | 1 | 10 |
22 | 12×65 | 300×1610 | 12.1 | 308 | 63.4 | 1650 | 65.9 | 1675 | 2.5" NPSM | / | 22.6 | 112.0 | 1.8~2.4 | 150 | 1 | 10 |
23 | 13×54 | 330×1370 | 13.2 | 334 | 54.0 | 1370 | 55.3 | 1405 | 2.5" NPSM | / | 27.5 | 104.0 | 2.0~2.5 | 150 | 1 | 10 |
Drawing
Description
FRP pressure filter tanks are made of high performance composite materials: FRP liner and FRP filament winding outer shell. Our design provides a continuous seamless inner liner shell with a GF PP inlet for higher strength, temperature and pressure capabilities. High quality PE liner with FRP filament winding.
Full choice of pressure tanks:
1. Residential tanks ( 6" to 13" diameter)
2. Commercial tank ( 14" to 24" diameter)
3. Industrial tanks (30" to 63" diameter)
4. Operating Pressure: 150 psi ( 10.5 bars , 1.0 Mpa)
5. Operating temperature: 120F (49 ℃)
Applications:
Residential tanks (Dia.: 6"-13”) |
Water filter, water softener |
Commercial tank (Dia.: 14"-24”) |
Water filter, water softener, prefilter for water treatment and storage |
Industrial tanks (Dia.: 30"-63”) |
Water filter, water softener, prefilter for water treatment and storage |
Competitive advantage
Our filter tanks offer you fiberglass construction with polyethylene inner shell for outstanding performance and
durability in harsh chemical environments. The non-destructive, cost-effective solution for commercial/industrial
water treatment and storage. Each filter tank is 100% factory pressure tested as well as quality inspected
before leaving. FRP tanks have secure bases and are available in many different configurations depending
on your application and space requirements. Product are NSF certified.
