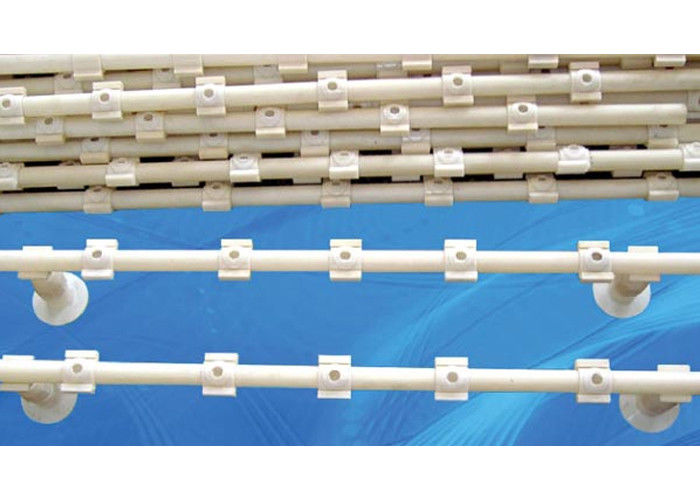

Waste Water Treatment Plant Single membrane aeration diffisuer for fish farming

Fine bubble disc diffuser in effluent treatment plant 260mm | 10inch Diameter

1. Specification:

Air branch pipe diameter: 0.25mm

Top&bottom pipe fitting: 43 x 43 mm

Single porous membrane diameter: 33mm

Pore diameter: 1mm

Air pipe size: depend on airflow.

2. Features:

• High shelf and service life
• Very fine bubble aeration
• Efficient oxygen transfer rate
• Non-clogging
• Low maintenance
• Good Mechanical strength
• High temperature resistance

3. Descriptions

For aeration of biological filter water treatment, it usually supply oxygen for creature consumption  by ventilation on the bottom of the bil-filter, this is natural ventilation. It has many disadvantages in this way: uneven air distribution, short flow, partly blocked, since the ventilation is related to bio-filter temperature, height, filter media tension, and air flow. The single porous membrane aeration diffuser push air flow into bio-fliter tank, which can provide stable oxygen required by the creatures.

Technical data (@4.5m deepth)

• Airflow capacity:  0.20-0.45 m3/piece*hour
• Oxygen efficiency: 22%
• Pressure loss: <3000 Pa
• Mounting density: 36-49 / m2
• Mounting height: 100-200 mm

4. Applications:

• Waste water treatment
• Effluent treatment plant
• Aeration
• Fish farming

5. Competitive advantage

We make available to the clients exceptional quality Fine Bubble Disc Diffuser, which is manufactured using highly advanced technology. The Fine Bubble Disc Diffuser offered by us is precisely engineered to suit the specifications of various clients. Additionally, clients can avail this Fine Bubble Disc Diffuser at most discounted prices.
