Transit Time Fixed Insertion Ultrasonic Magnetic Flow Meter For Slurry / Sewage

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
Model Number:	YE-TUF2000FI

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	USD150-USD900
Packaging Details:	carton
Delivery Time:	3 weeks
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	Ultrasonic Flowmeters	Principle:	Transit Time
Accuracy:	+ / - 1%FS	Operation:	Key Boards
Output Signal:	4-20 MA / OCT Pulse / Relay	Input:	3-way 4-20 MA (temperature, Pressure And Level)
Communication:	RS485 / Modbus	Media Temperature:	-30 - 160 ℃
Power Supply:	8-36 VDC / 10-30 VAC	Enclosure Protection:	IP68
High Light:	electromagnetic flow meter , water flow meter

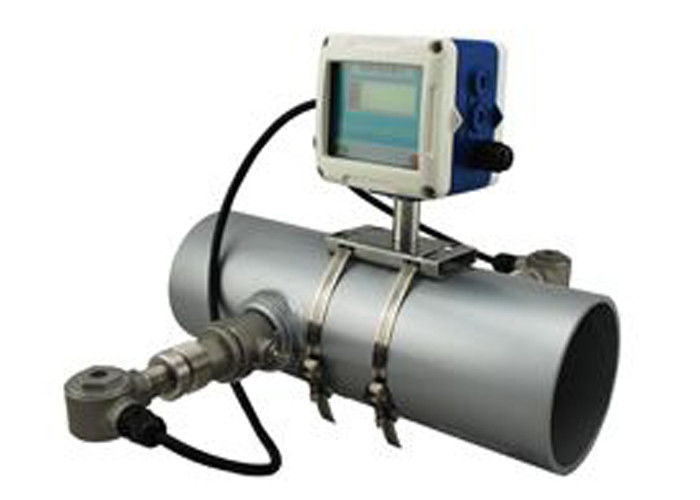

Transit time Fixed insertion ultrasonic flow meters with transducer for flow velocity of waste water | slurry | sewage

General

The in-line ultrasonic flowmeter for liquids applications, including but not limited to the metering of cooling water and demineralised water, control of batching and blending operations, mass flow measurement, allocation

measurement, district heating, irrigation, energy measurement, effluent, etc.

Independant of conductivity, viscosity, temperature, density and pressure
No moving or intruding parts, therefore no pressure loss or wear
Minimal operational and maintenance costs
Excellent long-term stability and reliability

Data sheet

Items	Performance & Parameter
Convertor	Principle	Transit-time ultrasonic flow meter
	Accuracy	+ 1%
	Operation	4 keyboards operation
	Output signal	1 channel 4-20mA, resistance 0-1K , accuracy 0.1%
		1 way OCT pulse (Pulse width: 6-1000ms, default: 200ms)
		1 channel relay output
	Input signal	3 way 4-20mA, accuracy: 0.1%, (temp., pressure, level)
	Input signal	Temperature transducer Pt100, heat / energy measurement
	Communication	Galvanic isolation RS485, software upgrade by PC, MODBUS
Signal cable	Twisted-pair cable, 50m; RS485, transmission distance 1000m or above.
Connect port	Pipe material	Steel, stainless, cast iron, copper, cement, PVC, aluminum, etc
	Pipe Dia	15 - 6000 mm
	Straight pipe	Upstream: 10xDia, or downstream: 5xDia, and 30xDia from pump
Metering	Liquid type	Single sonic wave transmittable liquid, such as municipal water, cooling water, seawater water, waste water, pure water, Sewage with particle content, such as oil, crude oil, lubrication oil, diesel oil, fuel oilChemicals, petrochemicals, heating, ventilation ,air conditioner, power plants,
	Temperature	-30-160℃
	Turbidity	Up to 10000 ppm and less bubble
	Flow velocity	0-7 m/s
Work environment	Temperature	Convertor: -20-60 ℃, Transducer: -30-160℃
Work environment	Humidity	Convertor: 85%RH, Transducer: submersible up to depth 2m
Power supply	DC8-36V or AC10-30V / 1.5W
Dimension	Convertor: 959535mm

Description:

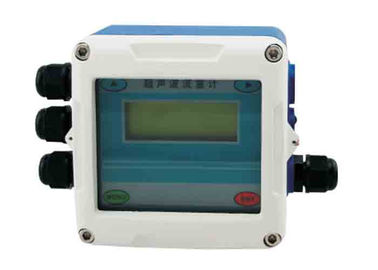

The pipe type inline ultrasonic flowmeter is a precision instrument designed for linear, bi/directional volumetric flow

measurement of liquids. Flow measurement values can be output via the standard analog and-or pulse/frequency

outputs. Through a user friendly operator interface (HMI) the unit can be set up for a wide range of applications.

Next to actual volumetric flow measurement the unit can be configuredto perform flow totalization (plus, minus and

sum). Also measurement and output of the liquid sonic velocity can be configured. Optionally the unit can be set to

perform one of the following additional functions:

Calculate and output corrected standard volumetric or mass flow using external pressure & temperature inputs
Batch function
Heat function, combining T1, T2 and volume

Metering Diagram

Flow measurement Heat measurement

Transit Time Fixed Insertion Ultrasonic Magnetic Flow Meter For Slurry / Sewage 0

Reference chart

Type	Model	Pipe dia (mm)	Temperature	Dimension (mm)
Clamp on	TS-2	DN15-100	-30-90℃	45x25x32
	TM-1	DN50-700	-30-90℃	64x39x44
	TL-1	DN300-6000	-30-90℃	97x54x53
Clamp on (high temperature)	TS-2-HT	DN15-100	-30-90℃	45x25x32
	TM-1-HT	DN50-700	-30-90℃	64x39x44
	TL-1-HT	DN300-6000	-30-90℃	97x54x53
Insertion type	TC-1	DN80-6000	-30-90℃	190x80x55
Insertion type	TC-2(lengthen)	DN80-6000	-30-90℃	335x80x55
Pipe type	G3 (π type)	DN15-25	-30-160℃
	G2	DN32/DN40	-30-160℃
	G3	DN50-6000	-30-160℃

Optional temperature transducer

Specification	Model	Dia	Temp.	Water cut	Accuracy
Clamp-on temp. transducer Pt100	CT-1	>DN50	-40-160℃	No	100+ 0.8℃
Insertion temp. Transducer Pt100	TCT-1			Yes
Insertion temp. Pt100 with pressure	PCT-1			No
Insertion temp.Pt100 for small pipe D	SCT-1	<DN50		Yes

Industries

Chemicals
Petrochemicals
Oil & Gas
Heating, Ventilation & Air Conditioning (HVAC)
Power Plants
Water treatment

Applications

Metering of cooling water
Demineralisedwater
Control of batching and blending operations
Mass flow measurement
Allocation measurement
District heating
Irrigation
Energy measurement

Model Selection

I	Model
	YF	Electromagnetic flowmeter
	TF	Turbine
	VF	Votex
	LX	Vane wheel
	T	Ultrasonic
		E/F display mode	E: compact/local display, F: remote display
			Pipe Dia	Type (mm)
			xxxx	10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 400, 500, 600, 800, 1000
			Code	Accuracy
			1	+ 0.5% FS
			2	+ 1.0% FS
			3	+ 0.2% FS
				Code	Type
				N	Converter: 12 / 24 VDC, pulse output
				A	Transmitter: 24VDC, 4-20mA outpt
				B	Intelligent, Lion battery, no local display
				G	Smart, local display, 4-20mA output
				C1	Smart, local display, RS485
				C2	Smart, local display, HART
					Code	Type
					S	Carbon steel housing
					L	Stainless steel housing
					G	High pressure housing
					HL	316L electrode
					HTi	Titanium electrode
					HTa	Tantlum electrode
					HC	Hastelloy-C electrode
					L1	Liquid media
					L2	Gas media
					P	Pressure compensation
					T	Temperature compensation
					PT	Pressure&Temp. Compensation
					F	PTFE liner
					X	Rubber liner
Sample: IYF-E-0100-1-C1-S-HL-L1-F, Magmeter, local display, Dia: 100mm, + 0.5%FS, carbon steel housing, smart, 4-20mA outpt, RS485, 316L electrode, liquid media meter, PTFE liner

Competitive Advantage:

Compliance to international standards: ISO9001-2008 / GB/T19001 / MC00000-044/507
CE approval
Strict process control
Advanced calibration equipment
Engineer team

Calibration

Transit Time Fixed Insertion Ultrasonic Magnetic Flow Meter For Slurry / Sewage 1

Work shop

Transit Time Fixed Insertion Ultrasonic Magnetic Flow Meter For Slurry / Sewage 2
