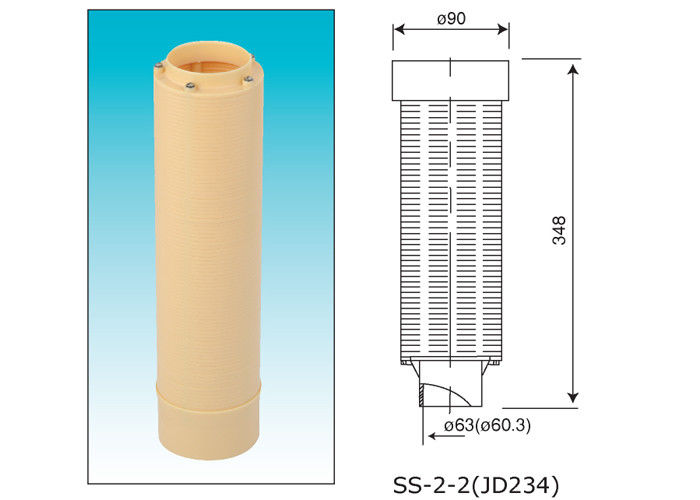

Top stack screen for Fleck 3150 valve Riser pipe Diameter 2"

Top stack screen for Fleck 3150 valve Riser pipe Diameter 2"

    • Top stack screen for Fleck 3150 valve Riser pipe Diameter 2"
    • Top stack screen for Fleck 3150 valve Riser pipe Diameter 2"
  • Top stack screen for Fleck 3150 valve Riser pipe Diameter 2"

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: NSF/ISO9001/SGS
    Model Number: JD234

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: negotiable
    Packaging Details: carton
    Delivery Time: 4-6 weeks
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Top Water Filter Screen Riser Tube Dia.: 2"
    Suitable Tank Dia.: 30" - 60" Connect: Glue / Quick Connect
    Standard: NSF / ISO9001 / SGS Suitable Control Valve: Top Mount Control Valve
    Model: JD230
    High Light:

    water filter tank

    ,

    water tank filter

    Top stack screen for Fleck 3150 valve Riser pipe Diameter 2"



    Specification

    Model No. Description Suitable tank Diameter (in/mm)
    SS-2F-2 Fleck valve top stack distributor 30" - 60" ( Dia. 750mm - 1500mm)

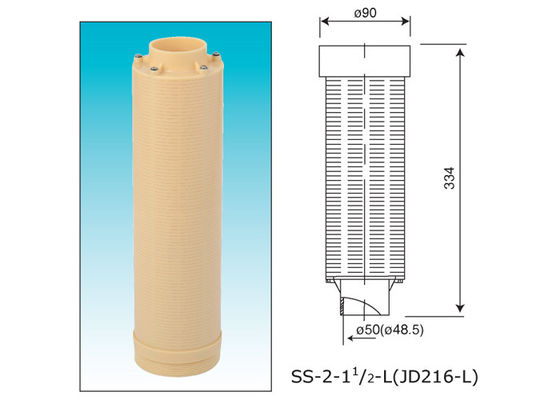

    SS-2-1 1/2L Top stack distributors 30" - 60" ( Dia. 750mm - 1500mm)



    Riser pipe openning options:

    - 3/4" Solvent welded

    - 3/4" Quick connect

    - 1" Solvent welded

    - 1" Quick connect



    Description

    The top and bottom distributors are designed for use with top and bottom mount water softeners or filter valves.

    The standard slot size is 0.010 - 0.013. The distributors are designed for use with 6" - 36" diameter fiberglass

    reinforced tanks with a 2.5" - 4" top openings. The bottom distributors are designed to accommodate a number of

    different size riser pipes which can be solvent welded or threaded directly into the distributors. To install, solvent

    weld or thread the riser pipe directly into the distributor and extend the distributor to the bottom of the mineral tank.





    Applications:



    Residential tanks (Dia.: 6"-13”)

    Water filter, water softener

    Commercial tank (Dia.: 14"-24”)

    Water filter, water softener, prefilter for water treatment and storage

    Industrial tanks (Dia.: 30"-63”)

    Water filter, water softener, prefilter for water treatment and storage



    Competitive advantage

    We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
