All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | NSF/ISO9001/SGS |
Model Number: | JD207 |
Minimum Order Quantity: | 500 |
---|---|
Price: | negotiable |
Packaging Details: | carton |
Delivery Time: | 4-6 weeks |
Payment Terms: | L/C, T/T, D/P |
Supply Ability: | 100000 pcs per month |
Product Name: | Top And Bottom Water Distributor | Riser Tube Dia.: | 3/4" & 1" |
---|---|---|---|
Suitable Tank Dia.: | 6" - 12" | Connect: | Glue / Quick Connect |
Standard: | NSF / ISO9001 / SGS | Suitable Control Valve: | Autotrol |
High Light: | water filter tank,water purification tank |
Top & bottom water distributors for top mount autotrol filter & softener control valves Riser pipe Dia 3/4"
Specification
Model No. | Description | Suitable tank Diameter (in/mm) |

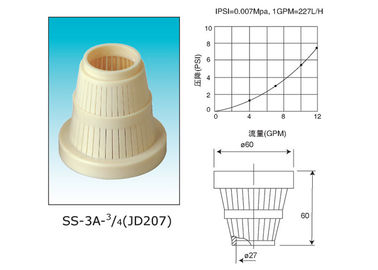

SS-3A-3/4 | Autorol Top distributor 3/4" | 6" - 12" ( Dia. 150mm - 300mm) |

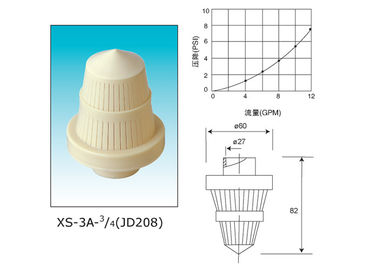

XS-3A-3/4 | Autorol Bottom distributor 3/4" | 6" - 12" ( Dia. 150mm - 300mm) |
Riser pipe openning options:
-3/4" Solvent welded
-3/4" Quick connect
Description
The top and bottom distributors are designed for use with top and bottom mount water softeners or filter valves. The standard slot size is 0.010 - 0.013. The distributors are designed for use with 6" - 16" diameter fiberglass reinforced tanks with a 2.5" - 4" top openings. The bottom distributors are designed to accommodate a number of different size riser pipes which can be solvent welded or threaded directly into the distributors. To install, solvent weld or thread the riser pipe directly into the distributor and extend the distributor to the bottom of the mineral tank.
Applications:
Residential tanks (Dia.: 6"-13”) |
Water filter, water softener |
Commercial tank (Dia.: 14"-24”) |
Water filter, water softener, prefilter for water treatment and storage |
Industrial tanks (Dia.: 30"-63”) |
Water filter, water softener, prefilter for water treatment and storage |
Competitive advantage
We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
