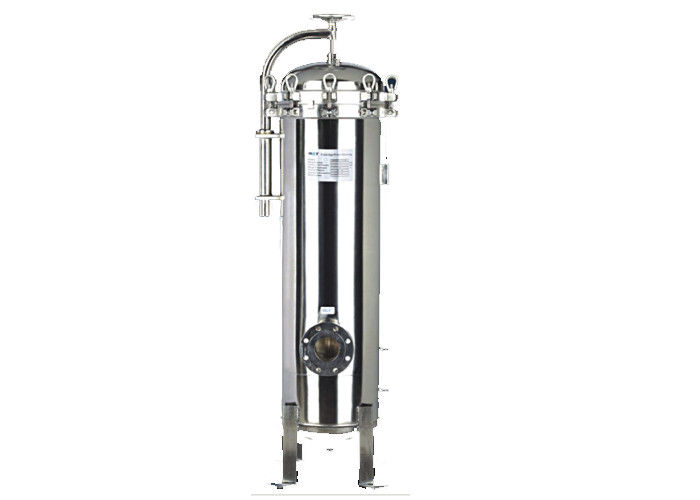

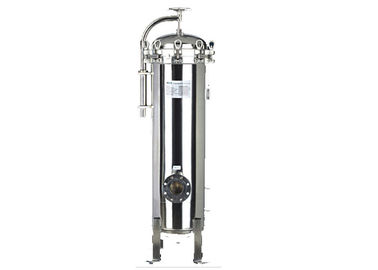

Swing bolt top closure Cartridge Filter Vessels for chemical filtration 40" 52 filter cartrdiges 1.0Mpa

Swing bolt top closure Cartridge Filter Vessels for chemical filtration 40" 52 filter cartrdiges 1.0Mpa

    • Swing bolt top closure Cartridge Filter Vessels for chemical filtration 40" 52 filter cartrdiges 1.0Mpa
  • Swing bolt top closure Cartridge Filter Vessels for chemical filtration 40" 52 filter cartrdiges 1.0Mpa

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: BY5240

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: Negotiable
    Packaging Details: carton
    Delivery Time: 3 weeks
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: Single Cartridge Filter Vessels Material Of Construction: SS304 , 316L ,
    Operation Pressure: 150 Psi , 1.0 Mpa Relief Valve: Pressure Relief Valve
    Port Connect: Threaded BSP , NPT, Flange, Grooved Coupling Vent Port: 1/4"
    Drain Port: 1/2" Nos Of Cartridge: Up To 52 Cartridges
    Top Closure: Swing Bolt
    High Light:

    cartridge filter housing

    ,

    industrial filter cartridges

    Swing bolt top closure cartridge filter housing for RO system pretreatment 40" 28 cartrdiges 1.0Mpa



    Specification



    Parameters

    Data

    Max. operation pressure

    150PSI

    Max. design temperature

    150℃

    Construction materials

    House body: 304SS or 316L;  Gasket: Buna-N

    Inlet/outlet

    NPT, or FNPT, BSP, Flange, Tri-clamp

    Vent

    1/4" NPT, BSP

    Drain

    1/2" NPT, BSP



    Descriptions

    Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.



    Swing bolt top closure Cartridge Filter Vessels for chemical filtration 40" 52 filter cartrdiges 1.0Mpa 0



    Operation

    Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.



    Features:

    • Low pressure drop and high dirt holding capacity

    • Permanently piped housing are opened without special tools and without disturbing the piping

    • Machined cover gasket groove provide positive O-Ring sealing

    • Suitable for double open end (DOE), Code 7 (226 O'-Ring) & 222 O'-Ring type filter cartridge

    • Accommodates 10", 20", 30", 40" length filter cartridges

    • End connections for ¾" to 24" pipe

    • Quick opening tri clovers design, V posts or threaded center posts

    • Flow rate up to 240 m3/hr or customized

    • High temperature & high pressure design are available

    • Positive sealing arrangement to avoid bypassing

    • Easy to operate & low maintenance

    • All housings made from SS 316 L, SS 316 & SS304 are mirror polished & electro polished to resist adhesion of dirt and scale

    Options

    • Sanitary fittings and construction

    •  Higher pressure rating

    • Housings of alloy steel

    • Steam jackets

    • Special outlet locations

    • Optional cartridge sealing methods for  226, NPT, etc

    • High temperature gasket designs

    Cartridge filter housing suitable for filter cartridges of

     Double Open End (DOE) Type

    Code 3 (222 O' Ring) Design

    Code 7 (226 O' Ring) Design

    NPT Threaded Connection Type



    End connections available

    • NPT / BSP Threaded
    • Flanged Table E / Table F
    • ANSI B 16.5 Flanged
    • DIN Standard
    • Tri Clover Adaptors
    • SMS /Dairy End Connection

    Applications

    Water Treatment

    Oil & Gas

    Automobiles

    Cement

    Refineries

    Textiles

    Petro Chemicals

    Power Plant

    Pharma & Biotech

    Steel Industries

    Dyes & Intermediates

    Paints & Inks

    Sugar Industry

    Electronics

    Mining

    Food & beverage

    Edible Oil

    Aeronautics

    Fertilizers

    Pipe

    Pulp & Paper

    Electoplating

    Aerospace

    Chemicals

    Dairy, Food & Beverage

    Aerospace , Defence & Marine



    Competitive advantage

    Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 120 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
