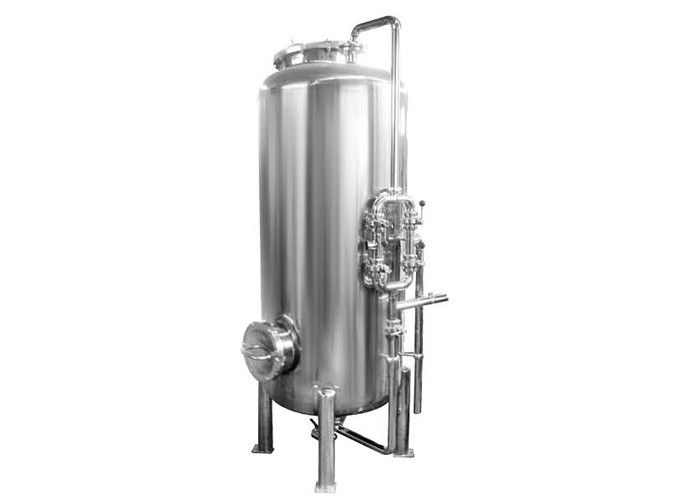

Stainless mechanical multi media filter housing system for pretreatment RO 0.6Mpa 70m3 / hour

Stainless mechanical multi media filter housing system for pretreatment RO 0.6Mpa 70m3 / hour

    • Stainless mechanical multi media filter housing system for pretreatment RO 0.6Mpa 70m3 / hour
    • Stainless mechanical multi media filter housing system for pretreatment RO 0.6Mpa 70m3 / hour
  • Stainless mechanical multi media filter housing system for pretreatment RO 0.6Mpa 70m3 / hour

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: MF2400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: foam wrapped
    Delivery Time: 4-6 weeks
    Payment Terms: T/T, L/C, D/P
    Supply Ability: 50 pieces per month
    Contact Now
    Detailed Product Description
    Material Of Construction: Stainless Steel SS304, Diameter: 600 / 800 To 3000mm
    Height: 1500mm / 2000mm Flow Rate: 1.4 - 2.8 M3/hour To 35-70 M3/hour
    Operation Pressure: 0.6Mpa Test Pressure: 0.75Mpa
    High Light:

    industrial filter cartridges

    ,

    stainless steel filter cartridges

    Stainless mechanical multi media filter housing system for pretreatment of reverse osmois 0.6Mpa 70m3/hour



    Specification:

    Content Data
    Max operate pressure 0.6Mpa
    Max operate temperature 110℃
    Pressure tolerance on weld seam 0.85
    Corrosion by acid 0
    Port connection Flange
    Material of construction stainless steel SS304, carbon steel



    Description:

    Pressure filters clarify water by removing sediment, turbidity, iron, unpleasant tastes and odors, suspended particles, and unwanted color, all of which are commonly found in surface water. We supply full line of standard and fully customizable water filtration systems, all of which are engineered using advanced 3D computer modeling software for accurate and customized solutions.


    Standard Features
    -Filter vessel material: Carbon steel, outernal is powerder coated
    -Optional construction material: Ss304, 316L, FRP
    -Anticorrosion treatment by inner rubber line. No dead angle inside tank
    -Pipe fittings are readily accessible for easy installation.
    -Sightglass and manhole
    -Max operation pressure: 0.6Mpa
    -Max work temperature: 49C
    -Protective poly-coat over the standard finis

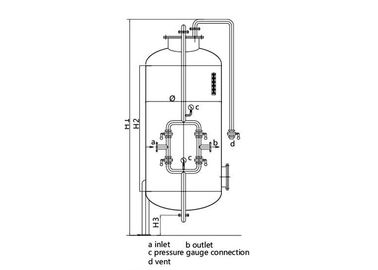

    Main parameters:

    Model Dia. H1 H2 H3 Flow rate

    Operate

    pressure

    Test

    pressure

    MF600 600 2520 1500 400 1.4-2.8m3/h 0.6Mpa 0.75Mpa
    MF800 800 2640 1500 400 2.5-5.0m3/h 0.6Mpa 0.75Mpa
    MF1000 1000 2690 1500 400 4.0-8.0m3/h 0.6Mpa 0.75Mpa
    MF1200 1200 2790 1500 400 5.5-11m3/h 0.6Mpa 0.75Mpa
    MF1600 1600 3505 2000 400 10-20m3/h 0.6Mpa 0.75Mpa
    MF1800 1800 3585 2000 400 13-25m3/h 0.6Mpa 0.75Mpa
    MF2000 2000 3685 2000 400 16-30m3/h 0.6Mpa 0.75Mpa
    MF2200 2200 3785 2000 400 25-49m3/h 0.6Mpa 0.75Mpa
    MF2400 2400 3847 2000 400 35-70m3/h 0.6Mpa 0.75Mpa



    Applications:

    • Multi media filter
    • Activated carbon filter
    • Silica sand filter
    • Prefilter for Water treatment RO system
    • Waste water treatment
    • Seawater desalination equipment

    Competitive advantage

    The mechanical water filter through the activated carbon bed or other filtration media to retain solid particles from raw feed water. The filter bed is composed of many microporous and enormous specific surface with strong physical absorption capacity such as activated carbon, silicon sand. Water flow through the filter bed, organic and other impurities, pollutants in water was absorbed by activated carbon effectively. The backwash restore its absorption capacity. The reasonable structure, easy to use, applicable to a variety of higher quality requirement areas.
