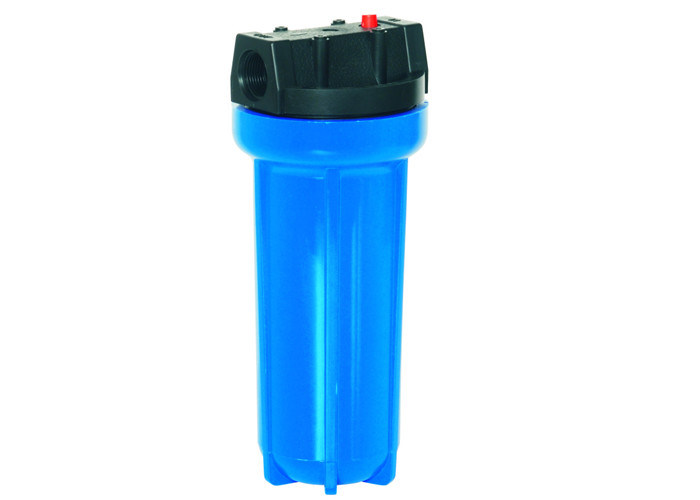

Slim Plastic Water Cartridge Replacement Filter 10" PP Double O Ring Vent Valve For Depth Water Filter PP

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	FS-08

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	4 weeks
Payment Terms:	L/C, T/T, D/P

Contact Now

Detailed Product Description

Product Name:	Slim Cartridge Filter Housing	Material Of Construction:	Polypropylene PP
Operation Pressure:	150 Psi , 1.0 Mpa	Relief Valve:	Pressure Relief Valve
Port Connect:	Threaded BSP , NPT	Vent Port:	1/4"
Drain Port:	1/4"	Gasket:	Buna-N , EPDM
Filter Element:	Dia. 2.5" X 10", DOE, 222/fin, 226 Oring
High Light:	industrial filter cartridges , stainless steel filter cartridges

slim plastic cartridge filter housing 10" PP double O-ring vent valve for depth water filter PP

Specification

Parameters	Data
Parameters	Data
Max. operation pressure	150PSI
Max. design temperature	50℃
Construction materials	Housing body: polypropylene, cover: ABS
Inlet/outlet	NPT, or FNPT, BSP, Flange, grooved, Tri-clamp
Vent	1/4" NPT
Drain	1/4" NPT

Descriptions

The slim plastic cartridge filter housing are widely used for water filtration, reverse osmosis, under sink water filter, count top water filter. It can be with Dia. 2.5" x L 10" melt blown PP filter cartidge, wound filter cartridge, membrane filter cartridge. End seal type: DOE, 222 O-ring, 226 O-ring, 226 Fin.

Accessories

-Wrench

Mount Bracket

Slim Plastic Water Cartridge Replacement Filter 10" PP Double O Ring Vent Valve For Depth Water Filter PP 1

Filter cartridge element

Slim Plastic Water Cartridge Replacement Filter 10" PP Double O Ring Vent Valve For Depth Water Filter PP 2

Features:

Polypropylene molded construction
FNPT / BSP thread connection
Suitable for PP spun filter cartidge, string wound filter cartridge, membrane pleated filter cartridge
Double o-ring seals
Cover vent and drain valve

Applications:

Water Treatment	Oil & Gas	Automobiles	Cement
Refineries	Textiles	Petro Chemicals	Power Plant
Pharma & Biotech	Steel Industries	Dyes & Intermediates	Paints & Inks
Sugar Industry	Electronics	Mining	Food & beverage
Edible Oil	Aeronautics	Fertilizers	Pipe
Pulp & Paper	Electoplating	Aerospace	Chemicals
Dairy, Food & Beverage		Aerospace , Defence & Marine

Competitive advantage

Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
