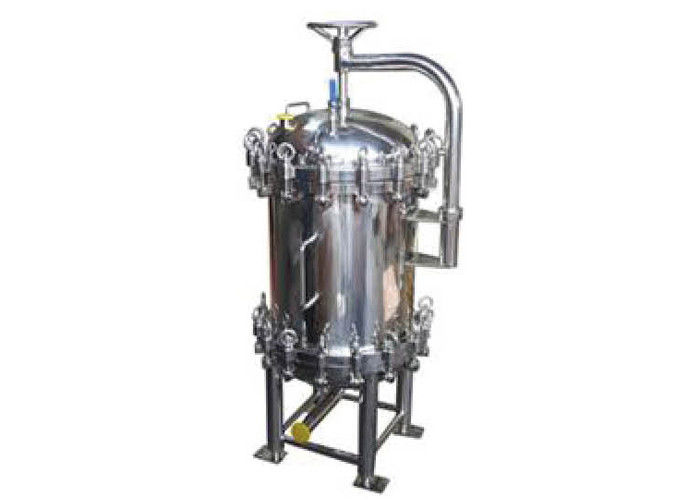

Sanitary Precision Cartridge Filter Vessels for refineries and petro chemicals 150psi 1Mpa

 Sanitary Precision filter vessels for refineries and petro chemicals  150psi 1Mpa

Specification

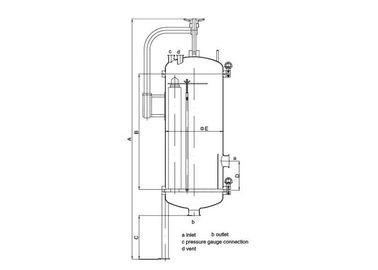

Product Dimensions:

Descriptions

Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Operation:

Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.

Features:

• Low pressure drop and high dirt holding capacity

• Permanently piped housing are opened without special tools and without disturbing the piping

• Machined cover gasket groove provide positive O-Ring sealing

• Suitable for double open end (DOE), Code 7 (226 O'-Ring) & 222 O'-Ring type filter cartridge

• Accommodates 10", 20", 30", 40" length filter cartridges

• End connections for ¾" to 24" pipe

• Quick opening tri clovers design, V posts or threaded center posts

• Flow rate up to 240 m3/hr or customized

• High temperature & high pressure design are available

• Positive sealing arrangement to avoid bypassing

• Easy to operate & low maintenance

• All housings made from SS 316 L, SS 316 & SS304 are mirror polished & electro polished to resist adhesion of dirt and scale

Options

• Sanitary fittings and construction

•  Higher pressure rating

• Housings of alloy steel

• Steam jackets

• Special outlet locations

• Optional cartridge sealing methods for  226, NPT, etc

• High temperature gasket designs

Cartridge filter housing suitable for filter cartridges of

End connections available

• NPT / BSP Threaded
• Flanged Table E / Table F
• ANSI B 16.5 Flanged
• DIN Standard
• Tri Clover Adaptors
• SMS /Dairy End Connection

Applications:

Competitive advantage

Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 120 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
