Potable ultrasonic Magnetic Flow Meter with mounting bracket transducer

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
Model Number:	TUF-2000P

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	USD150-USD900
Packaging Details:	carton
Delivery Time:	3 weeks
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Name:	Potable Ultrasonic Flow Meter	Type:	Potable
Operation:	Key Pad	Printer:	Yes
Output Signal:	4-20 MA / OCT Pulse / Relay	Input:	3-way 4-20 MA (temperature, Pressure And Level)
Communication:	RS485 / Modbus	Power Supply:	8-36 VDC / 10-30 VAC
Pipe Type:	Closed Pipe	Pipe Mount Material:	Weld Steel, Stainless Steel, Cast Iron, Copper / Brass, Cement Pipe, Aluminum
Accuracy:	+ / - 1%FS
High Light:	magnetic flowmeter , water flow meter

Potable ultrasonic flow meter with mounting bracket transducer for non-contact volume measurement

Product Description

The portable ultrasonic flow meter realizes non-contact volumetric flow measurement. It is ideal for flow management in closed-pipe applications where non-invasive measurement of liquid is required.Temperature and heat can also be measured by connect clamp on temperature transducer. It's widely used in municipal tap water supply, heat supply, chemical industry, machinery and energy resource.

Data sheet

Contents	Specifications
Main unit	2 line & 20 digits LCD with backlit Work temperature: -25 - 60 Mini thermal printer with 24 line digit output 4x4+2 key button RS485 interface for remote control
Input/output signal	1 channel 4-20 mA output 1 channel OCT output 1 channel relay output 3 channel 4-20 mA input
Liquid media	hot water, cold water, municipal tap water, seawater, waste water sewage with small particle content Oil, crude oil, lubrication oil, diesel, fuel, chemicals, alcohol, acid, effluent, beverage, food, ultra pure liquid, solvents
Flow rate range	0 - 10 m/s bi-directional
Accuracy	1%
Battery	Built in rechargeable Ni-MH battery, 20 hours continuously operation
Consumption	1.5 W
Dimensions	225x180x67mm, 2.5kg

Features

High Accuracy measuring:
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Wide measuring range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Chinese & English menu
Chinese & English display, easy to operate.
Built-in printer
Built-in mini thermal printer with instant and timing print function
Built-in data logger
Uplink over 20 measuring data to computer or SD card, convenient for the data processing and applications
Multi-signal input &output
Multiple signal interface easy for input and output signals

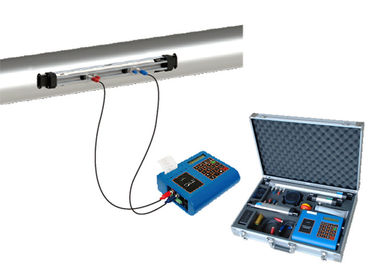

Metering Diagram

Flow measurement Heat measurement

Potable ultrasonic Magnetic Flow Meter with mounting bracket transducer 0

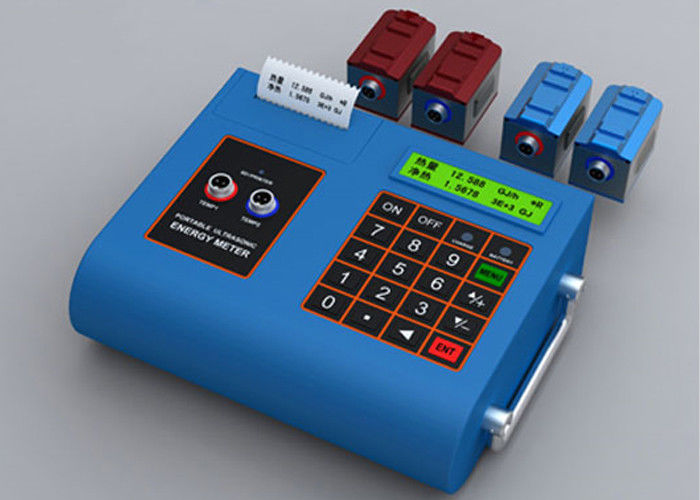

Parts configuration

Potable ultrasonic Magnetic Flow Meter with mounting bracket transducer 1

Optional transducer

Potable ultrasonic Magnetic Flow Meter with mounting bracket transducer 2

Industries

Chemicals
Petrochemicals
Oil & Gas
Heating, Ventilation & Air Conditioning (HVAC)
Power Plants
Water treatment

Applications

Metering of cooling water
Demineralisedwater
Control of batching and blending operations
Mass flow measurement
Allocation measurement
District heating
Irrigation
Energy measurement

Competitive Advantage:

Compliance to international standards: ISO9001-2008 / GB/T19001 / MC00000-044/507
CE approval
Strict process control
Advanced calibration equipment
Engineer team

Calibration

Potable ultrasonic Magnetic Flow Meter with mounting bracket transducer 3

Work shop

Potable ultrasonic Magnetic Flow Meter with mounting bracket transducer 4
