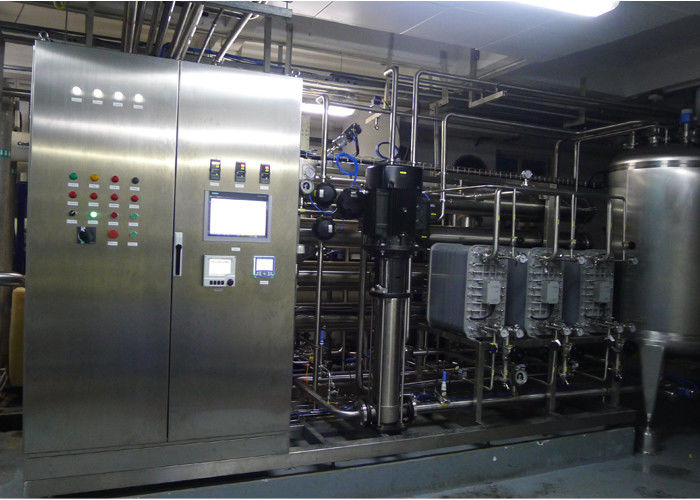

Pharmaceutical GMP ultra pure water RO EDI Water Treatment With Automatic PLC controller

Pharmaceutical GMP ultra pure water RO EDI Water Treatment With Automatic PLC controller

Pharmaceutical GMP ultra pure water RO EDI Water Treatment With Automatic PLC controller

Product Details:

Place of Origin: China
Brand Name: Purescience
Certification: ISO9001/SGS
Model Number: PURO-30K

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Container or wooden pallet
Delivery Time: 40 working days after receipt of payment
Payment Terms: T/T or LC
Supply Ability: 20pcs per month
Contact Now
Detailed Product Description
Product Name: Pure Water System GMP Production Capacity: 30000 Liters/hour
Feed TDS: Below 300 Ppm Application: Pharmaceutical
Material: Stainless Steel Electric Control: PLC & HMI Touch Screen
Permeate Resistivity: 18 Mega Ohms Purpose: Ultra Pure Water Production
Piping And Valves: 316L
High Light:

CEDI water treatment


RO EDI water treatment

GMP ultra pure water Reverse omosis system with EDI hot water sterilize 30m3/h
1. Specifications

Model Chem500 Chem1000 Chem2000 Chem3000
Process flow Booster pump+sand/softener/activated carbon+precision filter+RO+EDI
Raw water municipal water: TDS<300ppm, 5-35℃, 2.0-4.0 Kgf/cm2
Feed flow L/h 1000 1500 3000 4500
Permeate water capacity L/h 500 1000 2000 3000
Recovery rate % 62.5 66.7 66.7 66.7
Resisvity >5
Power KW 2 3 4 6.5
Pretreatment filteration system
Head Pressure m 40
Multi-media filter size mm 300x1500 450x1500 500x1500 600x1500
Automatic control valve
Activated carbon filter mm 300x1500 450x1500 500x1500 600x1500
Automatic control valve
Water softener mm 300x1500 450x1500 500x1500 600x1500
twin-softener, uninterrupted service flow, automatic control valve regeneration
Valves and piping SS304/UPVC depend on application purpose
RO main water treatment system
High pressure pump flow m3/h 1 1.6 3.2 5
Head pressure m 180 (inverter control)
Power kw 1.5 2.2 3 4
RO membrane element 4040x3 4040x6 4040x10 4040x15
Instrument Flow transmitter, pressure gauge, conductivity meter, resistivity meter
Electric control system Siemens PLC & touchscreen, Schneider

DQ/IQ/OQ, and assist clients to fulfill PQ, FAT/SAT report
Operation manuals
Engineer drawing, electric schematic
welding records/deactivation, pressure test records,
Certificate of Quality


2. Description:

Our commercial and Industrial Reverse Osmosis water treatment equipment / Systems are pre-engineered to economically produce high purity water by removal of dissolved minerals, bacteria, particles, and organic impurities from tap, well, underground water.
2.1 Standard Features
  • High rejection membrane elements
  • 5-micron sediment security filter / big blue
  • Automatic inlet solenoid valve
  • Product water conductivity monitor | meter
  • Operating pressure gauges
  • Product and concentrate flow meters
  • Concentrate and recycle flow control valves
  • Low inlet pressure switch with shutdown alarm
  • Corrission resistant high pressure pumps
  • FRP / SS pressure vessel
  • Automatic PLC controller
  • Factory tested
2.2 Options
  • Online hardness monitor
  • PH / ORP meter
  • Water Disinfection system: Ozonization / UV sterilizer
  • Post DI polishers
2.3 Construction materials
  • Skid frame: Stainless steel 304ss or exposy coated carbon steel
  • High pressure pumps: stainless steel 304ss or 316L
  • Pressure vessel / membrane housing: Fiberglass Reinforced Plastic / stainless steel
  • High pressure pipings and valves: stainless steel
  • Low pressure pipings: stainless steel

3. Applications:

Potable water

Ice manufacturing

Cooling tower

Plating operations

Rinse water

Power plants


Beverage production

Metal finishing

Mining industry

Bottled water

Safe drinking water

WFI ( water for injection) Pharmacy / Pharmaceutical Dialysis

4. Competitive Advantage:

  • Technical advantage: years of experience in ultrapure water industry for electronics, pharmcy, etc. We've accumulated lots of know-how in this industry.
  • Our engineer team has rich experience in pharmaceutical water treatment system, automatic welding, engineering, GMP, which enable us to meet even the toughest requirement from different clients. We design and manufacture the most tailored equipment at competitive cost.
