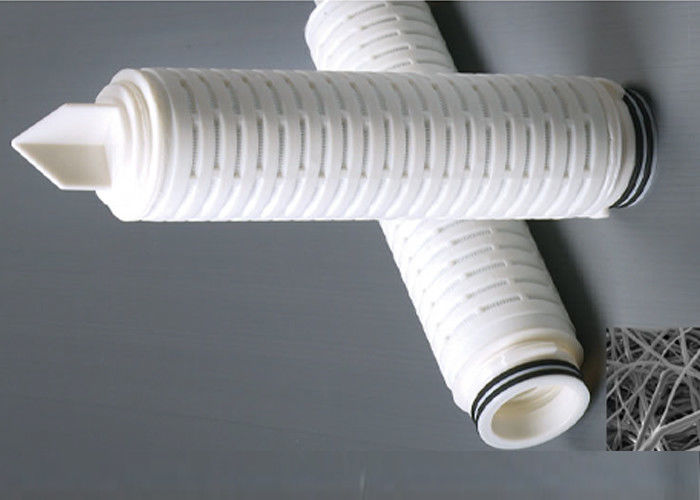

Melt blown Polybutylene membrane filter cartridge absolute filtration for oxidize water OD 68mm

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	PBT

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	20
Packaging Details:	carton
Delivery Time:	10 days
Payment Terms:	L/C, T/T, D/P

Contact Now

Detailed Product Description

Product Name:	Membrane Pleated Filter Cartridge	Filter Media:	Meltblown PBT
Support Layer:	Polyester	Core/Cage/End Caps:	PBT
End Cap Type:	DOE, 222 O-ring, 222/Fin, 226 O-ring	Temperature:	120 ℃
Dia / Length:	68mm / 5" , 10" , 20", 30", 40"	Seal:	Silicone, EPDM, Viton, PFA / Viton
High Light:	industrial filter cartridges , stainless steel filter cartridges

Melt blown Polybutylene membrane filter cartridge absolute filtration for oxidize water OD 68mm

Description

Pleated PBT Meltblown Filter Cartridges (APBT), utilizing Polybutylene Terephthalte membranes and polyester nonwove support material, will offer good performance of liquid filtration.

The oxide resistance, high temperature resistance, high flow rate membrane assures PBT to be widely used in oxide water filtration. The pleated design maximizes filtration area for longer service life.

Features and Benefits

Excellent oxide resistance;
High particle removal efficiency;
Good temperature resistance;
Low pressure lose;
Good GEL removal capability;
High surface area design provides excellent flow rates and extended service life;
Thermally welded, eliminating adhesive extractables;
Manufactured in a cleanroom environment.

Materials of construction

Filter media	PBT meltblown
Support layer	Polyester
Core / Cage / End caps	PBT
O-rings	Silicone / EPDM / Viton / PFA-viton
End type	DOE , 222 O-ring, 222/Fin, 226 O-ring/fin

Operation conditions

Max operate temperature	120 ℃
Max operate Pressure	58 psi (4 bar) / 70℉(21℃)

Applications

Oxide water
Pure water
Corrosive fluids
Medicine

Specifications

Model

Micron rating

End cap

Length

Seals

APBT

0020 - 0.2μm

0045 - 0.45μm

0100 - 1.0 μm

0500 - 5.0μm

1000 - 10.0μm

2500 - 25μm

5000 - 50μm

DOE - double open flat

TC - 222 O-ring flat

TF - 222 / Fin

SF - 226 / Fin

05 - 5 inch

10 - 10 inch

20 - 20 inch

30 - 30 inch

40 - 40 inch

S - Silicone

E - EPDM

V - Viton

Workshop

Melt blown Polybutylene membrane filter cartridge absolute filtration for oxidize water OD 68mm 0

Competitive advantage

Our membrane pleated filter cartridge are absolute-rated filtration media for prefiltration. All components are thermally bonded without adhesives or hot-melts. These filter cartridges deliver high flow rates with low pressure drops. They can withstand repeated heat & steam sterilizations and sanitizations, while providing extremely low extractables and high dirt-holding capacity. The graded-density microfiber filters are distinguished by their absolute particulate ratings, which are maintained even under the most severe process conditions. Fully automated production gives our filter cartridges the most uniform, consistent construction and performance available anywhere. Assembly, testing and packaging are in cleanroom. Pleated membrane filter cartridges are available in PVDF, PES, PP, PTFE. Pleated prefilter cartridges are also available in PP microfiber media and glass microfiber media, as well as PP microfiber depth media.
