Irrigation LCD DN50 IP68 Ultrasonic Water Meter Housing

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO 4064B, GB/T19001
Model Number:	UWM1000

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Packaging Details:	unit pack by brown box, pallet
Delivery Time:	4-5 weeks
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2,800,000 sets per year

Contact Now

Detailed Product Description

Product Name:	Digital Ultrasonic Flow Meter Housing	Medium:	Cold Water/hot Water
Size:	DN50-1000	Type:	Transit Time Single Channel, Dual Channel, Four Channel
Communication:	Wireless Nb-IoT / MBus / RS485 / Lorawan / Pulse Emitter	Accuracy:	+ / - 2% @ Cold Water
Protection:	IP68	Standard:	ISO4064 , GBT778 , Q/320700JR05-2003
High Light:	IP68 Ultrasonic Water Meter Housing , DN50 Ultrasonic Water Meter Housing , Irrigation Ultrasonic Water Meter Cover

LCD Digital ultrasonic water meter housing for industrial/commercial/irrigation 2" - 48" single channel/dual channel

Product introduction
Large diameter ultrasonic water meter housing for ultrasonic hot water meter and cold water meter DN50-1000 mm. It includes the transit time or dopper ultrasonic water meter, are widely used in municpal water supply, commercial, industrial, irrigation. It's for transit time type ultrasonic water meter, single channel, dual channel or four channel.

Our advantage:

1) Up and down hydraulic molded, ensures the sensor body no oil mark, not crackable under pressure.

2) The sensor body surfacae will be under dual steel ball polishing, remove oxidized by first polish, and finely secondary polish.

3) High temperature annealing, it can reduce the hardness of material for easily processing, remove stress to stablize the shape, clear the defect, improve the material performance.

4) Imported CNC and numerical machine beds ensures the processing precision.

Features:
-The reasonable reflecting structure design ensures no swirl.
-Finely internal treatment, no pressure loss, evenly velocity gradient

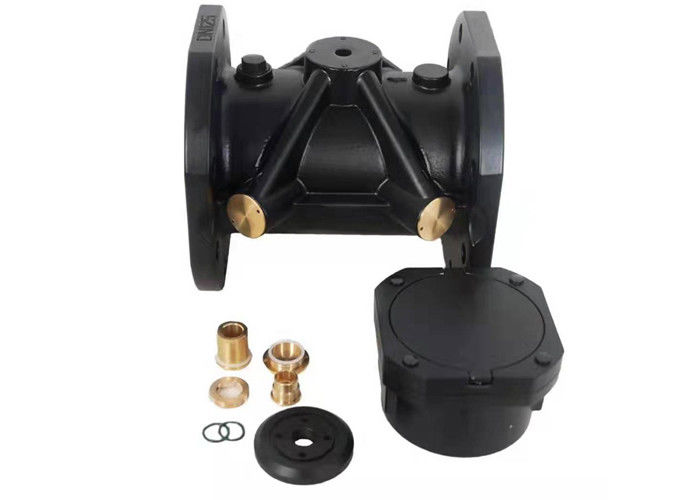

Irrigation LCD DN50 IP68 Ultrasonic Water Meter Housing 0

Technical data (LGS)

Dia (mm)	L (mm)	Flange	Diversion inner hole	Remarks
DN50	200	D165	50	Large diameter, single channel, dual channel, quadru channel ultrasonic water meter housing
DN65	195	D185	65
DN80	225	D200	76
DN100	250	D220	100
DN125	275	D250	125
DN150	300	D285	150
DN200	350	D340	200
DN250	450	D405	250
DN300	500	D460	300
