FRP Pressure Tanks Hub and lateral for Bottom mount 6 laterals control valves

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	NSF/ISO9001/SGS
Model Number:	JD314N

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	negotiable
Packaging Details:	carton
Delivery Time:	4-6 weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Hub And 6 Laterals For Bottom Mount	Riser Openings:	6
Suitable Tank Dia.:	13" - 48"	Connect:	6" Flange
Standard:	NSF / ISO9001 / SGS	Mount:	Bottom Mount
Model:	JD314N
High Light:	water filter tank , water tank filter

Hub and lateral for Bottom mount 6 laterals control valves 6" Flange 3" Riser tube

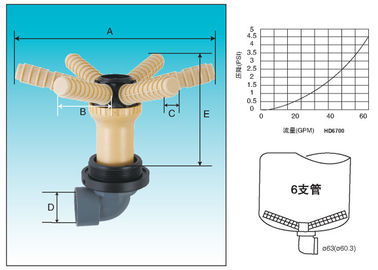

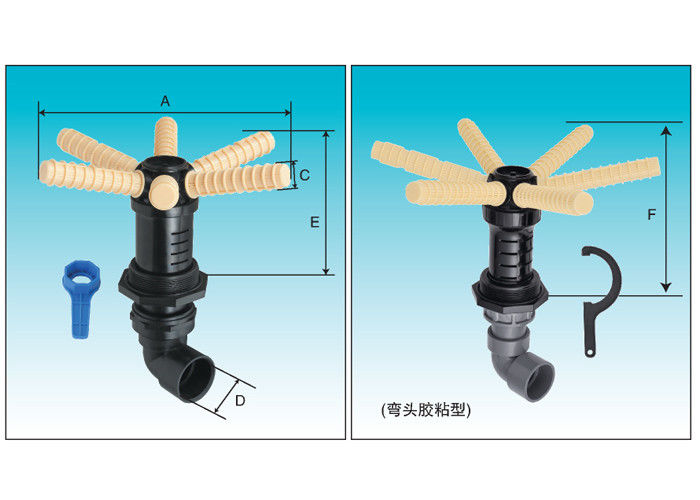

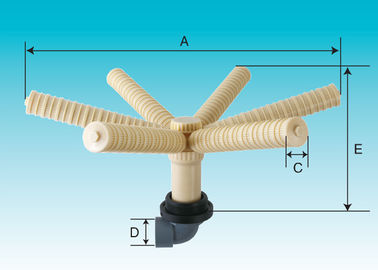

Specification

Model	A	B	C	D	E	Slot	Tank Dia.	Top opening
JD314N	253	98	35	63 / 60.3	179	0.2/0.25/0.4	12"-16" (Dia. 300mm - 400mm)	4" - 8" Threaded
JD315N	350	153	35	63 / 60.3	193	0.2/0.25/0.4	12"-16" (Dia. 300mm - 400mm)	4" - 8" Threaded
JD316N	445	200	35	63 / 60.3	208	0.2/0.25/0.4	24" (Dia. 600mm)	4" - 8" Threaded
JD317N	590	281	35	63 / 60.3	228	0.2/0.25/0.4	30" (Dia. 750mm)	4" - 8" Threaded
JD318N	680	327	35	63 / 60.3	238	0.2/0.25/0.4	36" (Dia. 900mm)	4" - 8" Threaded
JD331N	680	327	35	63 / 60.3	255	0.2/0.25/0.4	40" (Dia. 1000mm)	4" - 8" Threaded
JD325N	235	99	53	63 / 60.3	216	0.2/0.25/0.4	13"-16" (Dia. 350mm - 400mm)	4" - 8" Threaded
JD319N	350	161	53	63 / 60.3	233	0.2/0.25/0.4	18"-20" (Dia. 450mm - 500mm)	4" - 8" Threaded
JD320N	465	223	53	63 / 60.3	250	0.2/0.25/0.4	24" (Dia. 600mm)	4" - 8" Threaded
JD321N	585	283	53	63 / 60.3	266	0.2/0.25/0.4	30" (Dia. 750mm)	4" - 8" Threaded
JD322N	705	348	53	63 / 60.3	285	0.2/0.25/0.4	36" - 40" (Dia. 900mm-1000mm)	4" - 8" Threaded
JD323N	825	416	53	63 / 60.3	303	0.2/0.25/0.4	48" ( Dia. 1200mm)	4" - 8" Threaded

Riser pipe openning options:

-Solvent welded

-F NPT / BSP thread

Description

The hub and lateral distributors systems are designed specifically to fit into a bottom FRP tank opening eliminating

the need for a 6” bottom hole where a greater possibility of leaks exist. The hub and lateral series is designed for use

in 14” - 65” diameter fiberglass mineral tanks. The hub and lateral series consist of an ABS hub, eight (8) PVC slotted

laterals with 3⁄4” threaded adapters, 4”-8 adapter and 2” CPVC socket elbow. Installation is quick and simple with the

use of a 1⁄2” blind socket molded right into the top of the hub. For installation, simply thread a long 1⁄2” rod into the

1⁄2” blind socket in the hub, extend through the top of the tank to the bottom and thread the laterals into the hub from

the bottom of the tank. After installing the 4”-8 adapter and threading the 2”
ABS socket elbow into the hub, simply unthread the 1⁄2” rod.

Applications:

Residential tanks (Dia.: 6"-13”)	Water filter, water softener
Commercial tank (Dia.: 14"-24”)	Water filter, water softener, prefilter for water treatment and storage
Industrial tanks (Dia.: 30"-63”)	Water filter, water softener, prefilter for water treatment and storage

Competitive advantage

We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
