DC3.6V DN32mm Motorized Mechanism Stepper Motors

Electric Motorized Mechanism Stepper Motors/DC Brush Motor Actuators For Prepaid/Lorawan/AMR Water Meters/HVAC DN15-32

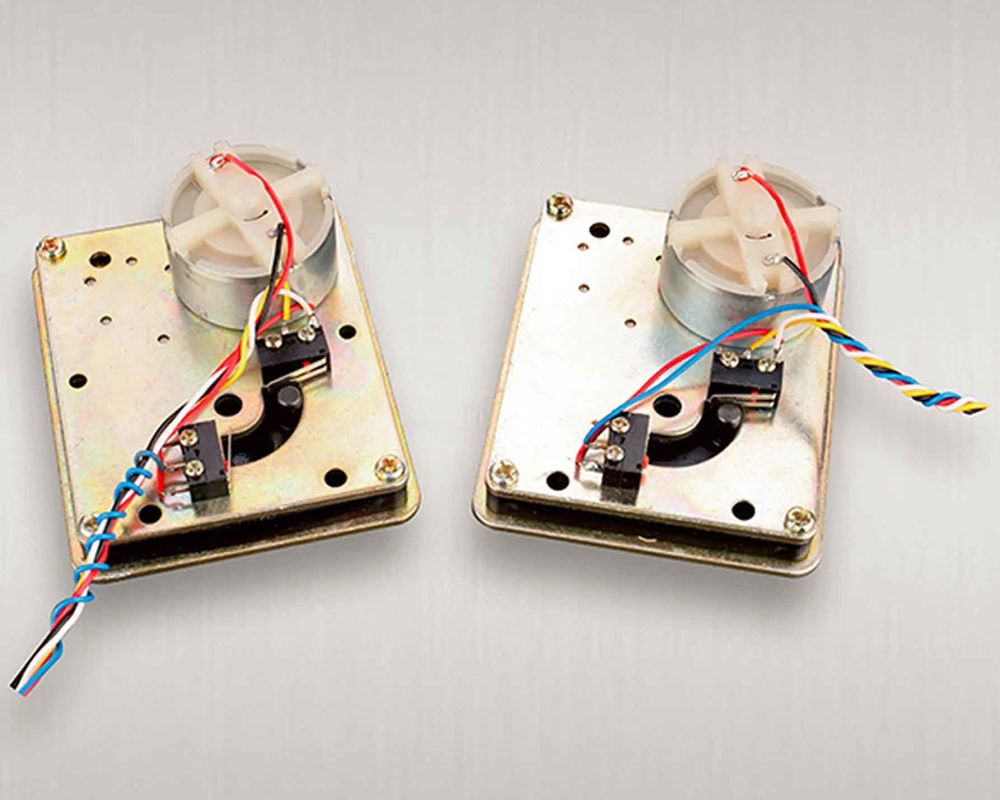

The K09 brass ball valve actuator is driven by DC2.5-5V power. It can be used on DN32-50 large diameter mini motorized ball valve. It has low electric consumption: maximal 50 mA at empty run, and about 1100 mA at full load run. The motor is DC5V #500. The electric ball valve actuator is designed for driving mini motorized ball valve. It's widely used for closing or opening small water meter with built-in control shut off valve. The applicable industries are: prepay water meter, ultrasonic water meter, heat meter, HVAC, flow control, etc.

Applications:

-Central heat supply system with radiator of hot water

-Central air conditioner in commercial building, hospital

-HVAC, prepay water meter, ultrasonic water meter, ultrasonic heat meter

-Smart city by IOT technology

Model K09 Technical data
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idling: <50 mA @ 3.6V, 23ºC
3. Current with loading: <1100 mA (motor #500)
4. Torque: >9 NM (2400:1)
5. Open/close time: <50S
6. Velocity reduction ratio: 6000:1 (DN32/40/50mm)
7. Protection: 0

Wiring diagram
