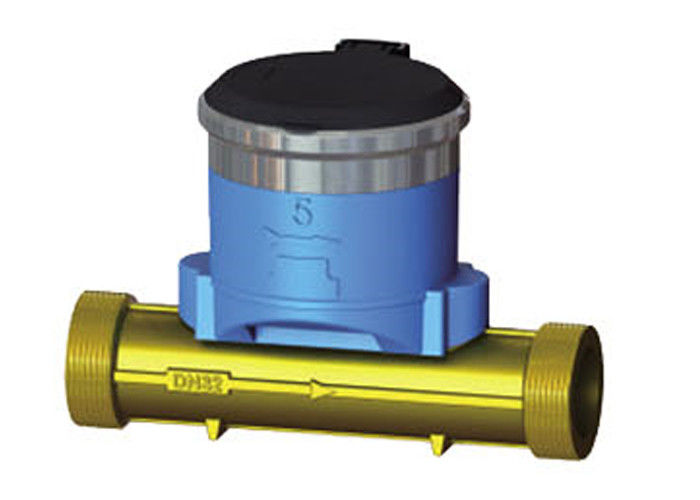

Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter

Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter

  • Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter
  • Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter
Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter
Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: ISO4064-1 / GBT778-2007 / JJG162-2009
Model Number: IT3-1C
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: USD300 - USD 800 / set
Packaging Details: carton
Delivery Time: 3-6 weeks
Payment Terms: L/C, T/T, D/P
Supply Ability: 10000 pieces per month
Contact Now
Detailed Product Description
Principle: Transit Time Accuracy: + / - 1%FS
Liquid Media Temp.: 0.1 - 30 ℃ (media), -10 - 45 ℃ (Ambient) Operation Pressure: 1.6 Mpa, 2.5 Mpa As Option
Upstream Sensor: U3 Downstream Sensitivity: D0
Data Store: EEPROM / Flahs, For Last 512 Days Accumulative Flow Record Power Consumption: 6 Years Battery Life
Communication: RS485 / USART / Infrared Output Signal: 2-way OCT Pulse / TTL Pulse / 1-way 4-20mA
Highlight:

electromagnetic flow meter

,

water flow meter

Ultrasonic water meter for waste water treatment | ETP, made of brass | copper DN15



Description

The dual channel ultrasonic water meter is designed and developed according to ISO4064-1:2005 / GBT778-2007

JJG162-2009. It has advantages of low power consumption, stable and reliable operation. Enclosure protection is

IP68. They’re widely applied in municipal water supply, water resourse management, agricultrual, irrigation,

garden management.

  • Designed strictly according to  GBT 778.1-2007,ISO-4064,JJG162-2009 standard.
  • Low starting flow rate(Q1), avoid missing the small flow rate.
  • No pressure loss, IP68 of protction leve, suitable for varieties of work environment
  • High accuracy make the water fees accurate and reliable.
  • No rotate abrasion, long service time.

Data sheet

Description

Specifications

Standard

ISO 4064-2005 , GBT 778.1-2007

Liquid media

Liquid is full of pipe line, such as water, sewage, seawater, effluent, waste water, slurry, etc.

Media temperature

0.1 - 30℃

Work environment

Temperature: -10-45℃ , Relative Humidity: <100%

Operate pressure

1.6Mpa (optional 2.5Mpa)

Upstream sensivity

U3

Downstream sensitivity

D0

Climatic and mechanical

Class C

EMC class

E2

Communication

RS485 / USART / Infrared

Signal output

Two way OCT pulse / TTL pulse / One-way 4-20mA

Power supply

Built-in Lithium battery, (3.6V @ 19Ah) / DC8-36V

Protection

IP68 (submersible up to 2 meters depth)

Display

Multiline 9 digit accumulative flow, 4 digit velocity,

Data storage

EEPROM / Flash, automatically record 512 days accumulative flow

Metering cycle

Measure: 1 times/second ; Verificaiton: 4times/second

Power consumption

<2.7Ah/year, 6 years battery life













































Overview

  • Enclosure protection IP68
  • Built in batch controller and time accumulator
  • Heat measurement for refigeration and air conditioning system
  • Double beam ultrasonic sensor for high accuracy
  • No moving parts, no rotation

Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter 0

Display and operation

  • LCD display of instantaneous flow, accumulative flow, time
  • Bi-directional flow measurement
  • Display in different units, volume: cubic meter, ft, gallon, liter & velocity: m3/h, GPM, LPM.
  • Touch key panel
  • Infrared communication interface

Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter 1

Communication and signal output

RS485

OCT1 (open collector output 1)

M-BUS

OCT2 (open collector output 2)

DC8-36V

C1 (TTL level pulse output 1)

Two-way 4-20mA output

C2 (TTL level pulse output 2)











Material

DN15-DN40 Single channel ultrasonic water meter (copper)

DN50-DN40 Dual channel bulk ultrasonic water meter (cast iron)

DN200-DN300 Dual channel large ultrasonic water meter (welded carbon steel)

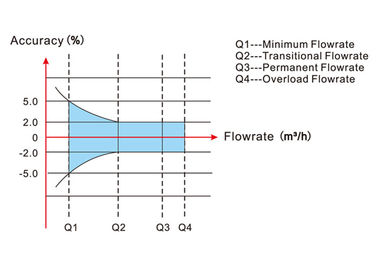

Flow range

Nominal D

R

Flow (m3/h)

Starting flow

Minimal flow (Q1)

Transitional flow (Q2)

Normal flow (Q3)

Overload flow (Q4)

DN15

200

0.003

0.0125

0.020

2.500

3.125

DN20

200

0.0035

0.016

0.026

3.200

4.000

DN25

200

0.007

0.020

0.032

4.000

5.000

DN32

200

0.010

0.032

0.050

6.300

7.875

DN40

200

0.015

0.100

0.160

20.000

25.000

DN50

100

0.030

0.400

0.640

40.000

50.000

DN65

100

0.059

0.630

1.008

63.000

78.750

DN80

100

0.064

1.000

1.600

100.000

125.000

DN100

100

0.094

1.600

2.560

160.000

200.000

DN125

100

0.120

2.000

3.200

200.000

250.000

DN150

100

0.270

2.500

4.000

250.000

312.500

DN200

100

0.315

4.000

6.400

400.00

500.00

DN250

100

0.508

4.000

6.400

400.00

500.00

DN300

100

0.770

6.300

10.080

630.00

787.500







































Competitive Advantage:

  • Compliance to international standards: ISO 4064-2005 , GBT 778.1-2007
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line

Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter 2Brass / Copper DN15 Multi Jet Water Meter Ultrasonic Wastewater Meter 3

Calibration equipment
