All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001/SGS |
Model Number: | EPD10 |
Minimum Order Quantity: | 1000 |
---|---|
Price: | negotiable |
Packaging Details: | carton |
Delivery Time: | 20 working days |
Product Name: | Fine Bubble Disc Diffuser | Connect: | Quick Fitting |
---|---|---|---|
Membrane Color: | Black | Shelf Material: | ABS |
Diameter: | 260mm 10inch | Membrane Material: | EPDM |
High Light: | sewage treatment plants,industrial waste water treatment |

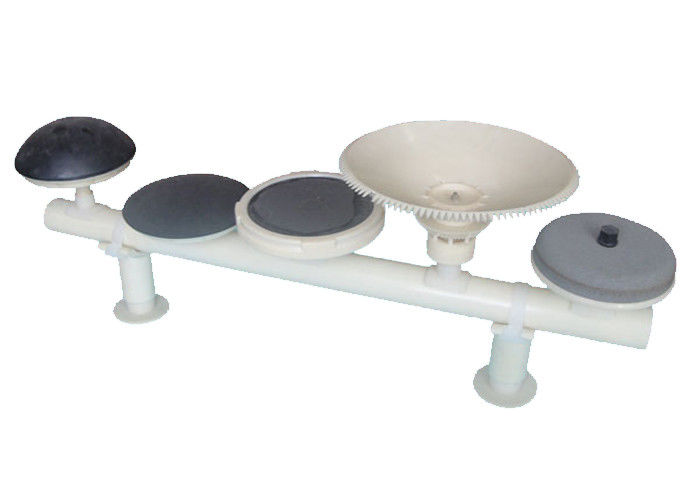

Fine bubble disc diffuser in effluent treatment plant 260mm | 10inch Diameter
1. Specification:
Membrane material |
EPDM |
Membrane pore size |
80-100 micron |
Oxygen kia |
0.204 - 0.337 min-1 @ 20℃ |
Oxygen capability |
0.112-0.185 kg/m3.h |
Surface area |
0.25 - 0.75 m2 |
Air flow |
1.5 - 3 m3N/h |
Peak air flow |
4.7-9.5 m3N/h |
Aeration resistance |
180-280 mm H2O |
Oxygen efficiency |
18.4-27.7% @3.2meter deep |
2. Descriptions
Our fine Bubble membrane disc diffusers are compression molded and made with less than 10% extractable oils to ensure strength and longer product life. The base and retaining ring are designed to seal tightly and made of polypropylene having properties of higher temperature resistance and greater ductility. The membrane has an integral O-ring seal which is tightly compressed by the retaining ring keeps water out and air inside. The disc diffusers offer a perfect balance of high oxygen transfer and modest headless with small bubble size as required by customers. Our membranes are of standard sizes and prices are competitive.
We make available to the clients exceptional quality Fine Bubble Disc Diffuser, which is manufactured using highly advanced technology. The Fine Bubble Disc Diffuser offered by us is precisely engineered to suit the specifications of various clients. Additionally, clients can avail this Fine Bubble Disc Diffuser at most discounted prices.
3. Features:
4. Applications:
5. Competitive advantage
We make available to the clients exceptional quality Fine Bubble Disc Diffuser, which is manufactured using highly advanced technology. The Fine Bubble Disc Diffuser offered by us is precisely engineered to suit the specifications of various clients. Additionally, clients can avail this Fine Bubble Disc Diffuser at most discounted prices.
