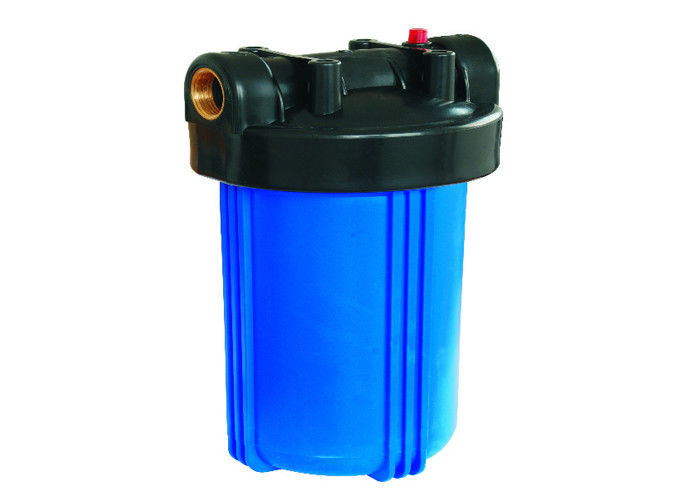

Big Blue Plastic Cartridge Filter Vessels Housing Dia 4-1/2" L 10 Inch With Vent Valve For Pretreatment Of RO

big blue plastic cartridge filter housing Dia. 4-1/2" L: 10 inch with vent valve for pretreatment of RO

Specification


Descriptions
Our big blue, or the big black heavy duty Filter Housings, offers the versatility to meet all of your large-capacity filtration needs, include but not limited to highflow and heavy-sediment applications. The extra large housing allows for greater filter cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available with length in both 10" and 20". The High-Flow Polypropylene cap is available with 3/4", 1" or 1-1/2" NPT / BSP thread inlet and outlet ports. The 1-1/2" internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly. The BB housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges: spun PP, string wound, etc.

Accessories
-Wrench

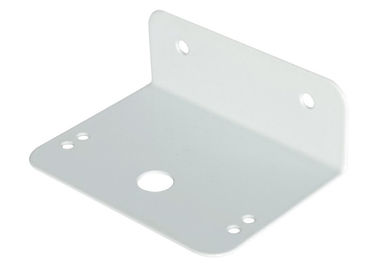

Mount Bracket

Filter cartridge element

Features:

• Large capacity housing suitable for high flow applications
• Available in 10" and 20" lengths
• Pressure relief/bleed on inlet side of cap
• Accepts up to 4-1/2" diameter filter cartridges
• O-ring seals: EPDM, Buna-N

Applications:



Competitive advantage
Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
