6" Flange 3" Riser tube ABS socket elbow Hub and lateral for Water filter

6" Flange 3" Riser tube ABS socket elbow Hub and lateral for Water filter

  • 6" Flange 3" Riser tube ABS socket elbow  Hub and lateral for Water filter
6" Flange 3" Riser tube ABS socket elbow  Hub and lateral for Water filter
Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: NSF/ISO9001/SGS
Model Number: JD408
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: carton
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: Hub And 16 Laterals For Top Mount Riser Openings: 16
Suitable Tank Dia.: 24" - 80" Connect: 6" Flange
Standard: NSF / ISO9001 / SGS Mount: Top Mount
Model: JD408
Highlight:

water filter tank

,

water tank filter

Hub and lateral for Top mount 16 laterals control valves 6" Flange 3" Riser tube

Specification

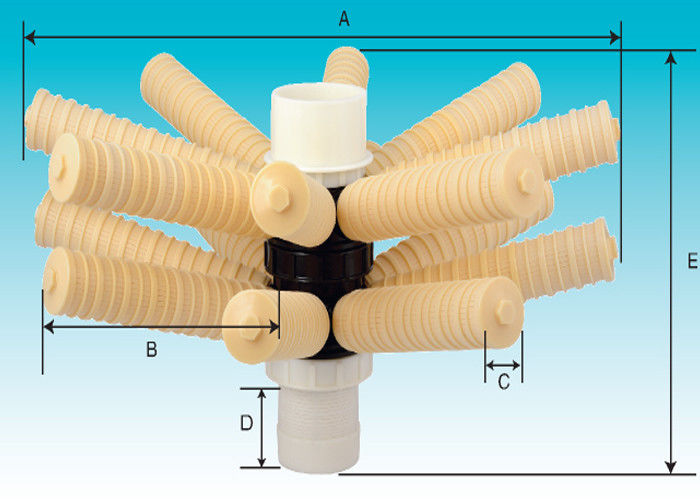

ModelABCDESlotTank Dia.Top opening
JD408510228531043100.2/0.25/0.4mm24" (Dia. 600mm)6" Flange
JD409630290531043250.2/0.25/0.4mm30" (Dia. 900mm)6" Flange
JD410750350531043400.2/0.25/0.4mm36" (Dia. 900mm)6" Flange
JD411870412531043600.2/0.25/0.4mm40" (Dia. 1000mm)6" Flange
JD412985475531043750.2/0.25/0.4mm48" (Dia. 1200mm)6" Flange
JD4131225600531044000.2/0.25/0.4mm56"-65" (Dia. 1400mm-1600mm)6" Flange
JD4141345660531044150.2/0.25/0.4mm65"-80" (Dia. 1600mm-2000mm)6" Flange


Riser pipe openning options:
-Solvent welded
-F NPT / BSP thread

Description
The hub and lateral distributors systems are designed specifically to fit into a bottom FRP tank opening eliminating
the need for a 6” bottom hole where a greater possibility of leaks exist. The hub and lateral series is designed for
use in 14” - 65” diameter fiberglass mineral tanks. The hub and lateral series consist of an ABS hub, eight (8)
PVC slotted laterals with 3⁄4” threaded adapters, 4”-8 adapter and 2” CPVC socket elbow. Installation is quick
and simple with the use of a 1⁄2” blind socket molded right into the top of the hub. For installation, simply thread
a long 1⁄2” rod into the 1⁄2” blind socket in the hub, extend through the top of the tank to the bottom and thread
the laterals into the hub from the bottom of the tank. After installing the 4”-8 adapter and threading the 2”
ABS socket elbow into the hub, simply unthread the 1⁄2” rod.


Applications:

Residential tanks (Dia.: 6"-13”)

Water filter, water softener

Commercial tank (Dia.: 14"-24”)

Water filter, water softener, prefilter for water treatment and storage

Industrial tanks (Dia.: 30"-63”)

Water filter, water softener, prefilter for water treatment and storage


Competitive advantage
We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
