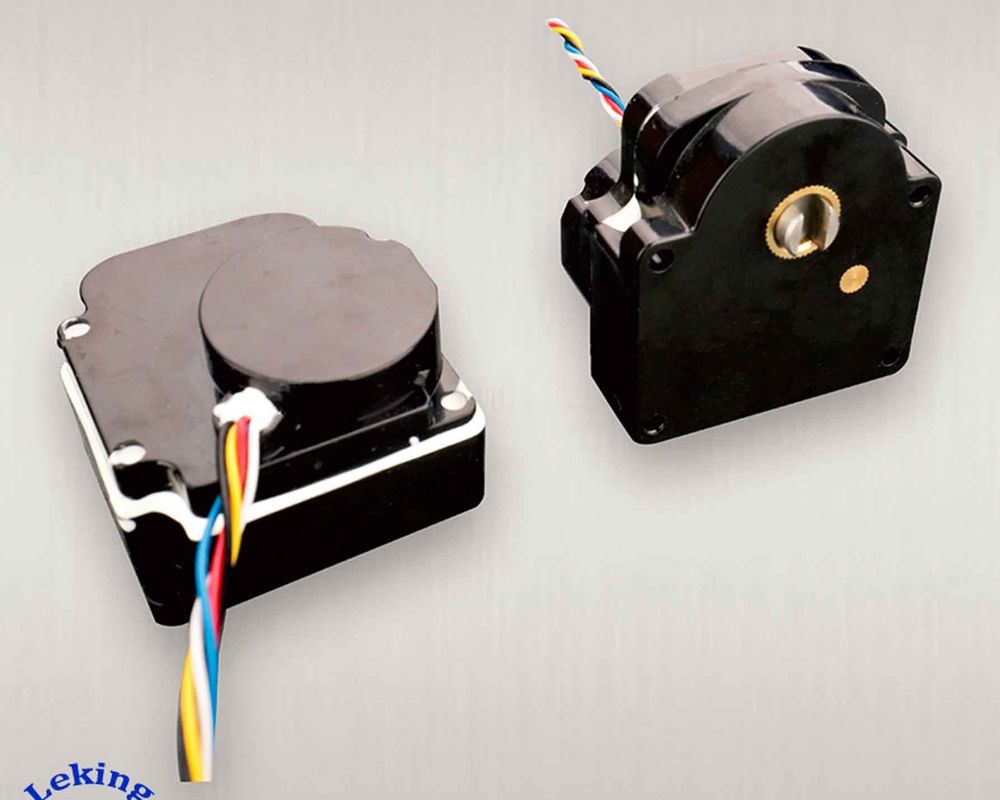

20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator

20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator

    • 20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator
    • 20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator
    • 20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator

    Product Details:

    Place of Origin: Hangzhou,China
    Brand Name: Lekin
    Certification: ISO9001/SGS
    Model Number: K06

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pieces
    Packaging Details: carton
    Delivery Time: 20 working days
    Payment Terms: T/T, L/C
    Supply Ability: 200000 sets/month
    Contact Now
    Detailed Product Description
    Type: Electric Actuator Power: DC 2.5 - 5V
    Current At Empty Run: 25 MA At 3.6V, 23 C Torque: 1.8NM
    Valve Open/close Time: 10 S Velocity Reduction Ratio: 2000:1 For DN15/20mm
    High Light:

    DC 3.6V Electric Motorized Actuator

    ,

    1.8NM Torque Electric Actuator

    ,

    20mm Electric Motorized Actuator

    DC 3.6V electric Motorized Actuator/automatic electronic motor mechanism to shut off valve of prepaid Water Meter AMR /aerosol dispenser/fan

    The DC3.6V lithium battery powered electric motorized valve actuator, is usde for closing or opening small water meter with built-in control shut off valve.

    Technical data-Model K06
    1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
    2. Current at idling: <25 mA @ 3.6V, 23ºC
    3. Current with loading: <550 mA (motor #320)
    4. Torque: >1.8 NM (2400:1); >4.5 NM (5000:1)
    5. Open/close time: <10S (2400:1); <20s (5000:1)
    6. Velocity reduction ratio: 1500:1 (DN15/20mm)
    7. Protection: 0

    Wiring diagram

    Wire color Description
    Blue signal of switch on position, open valve
    White signal of public terminal
    Yellow signal of switch off position, close valve
    Red power terminal, + positive
    Black power terminal, - negative


    Factory overview
    -Production facilities

    20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator 0    20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator 1   20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator 2
