All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO 4064B, GB/T19001 |
Model Number: | 006-2 |
Minimum Order Quantity: | 200 pieces |
---|---|
Packaging Details: | unit pack by brown box, pallet |
Delivery Time: | 4-5 weeks |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 2,800,000 sets per year |
Product Name: | LCD Display Ultrasonic Water Meter | Liquid: | Residential Water/municipal Water Supply |
---|---|---|---|
Power Supply: | DC 3.6V | Type: | Mass Flow Meter |
Communication: | Nb-IoT / MBus / RS485 / Lorawan / Wireless | Accuracy: | + / - 2% @ Cold Water |
Flow Range: | 0-10 M/s, R100/160/250/400/500 | Standard: | ISO4064 , GBT778 , Q/320700JR05-2003 |
Display: | LCD Display In Chinese And English | ||
High Light: | Ultrasonic Water Meter Brass Pipe,Mass Flow Meter Brass Pipe,RS485 Ultrasonic Sensor Tube |

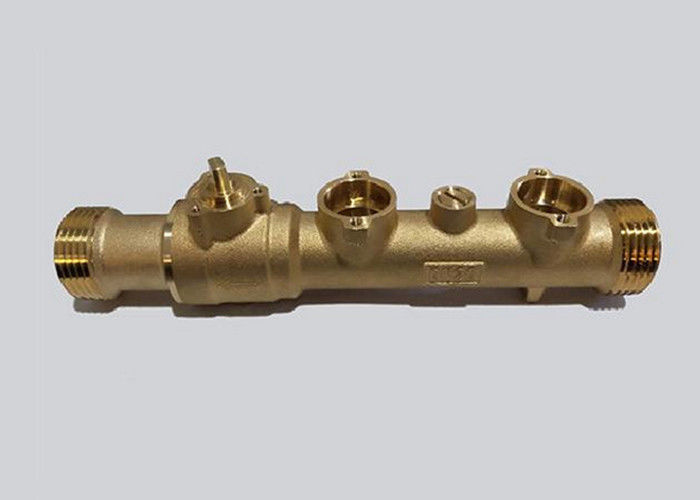

Ultrasonic flow meter, Lorawan ultrasonic water meter brass pipe, ultrasonic sensor tube DN15-40 mm, PN16, Brass
Product Features:
- Good pipe structure ensures small and even velocity gradient
- Unreasonable structure of reflecting column will produce swirl
- Good structure of reflecting column will avoid swirl
- Unreasonable pipe structure leads to large velocity gradient
General Introduction
The Ultrasonic heat water meter with Brass Pipe, which can be with a pair of ultrasonic sensors to detect the fluid flow in the pipe. When the ultrasonic wave and liquid flow direction runs in the same or reverse direction, the speed of the ultrasonic wave in liquid may be accelerated or decelerated accordingly. By this principle ,the ultrasonic flow sensor detects the liquid flow speed in the pipe, and thus obtains the flow data for energy metering.
Technical Parameter
Diameter | Tube length (mm) | Thread (inch) | Transducer hole size (mm) | Core (mm) | remarks |
DN15 | 110 | G3/4B | Φ21x9.2mm (17.2x1.5) | - | customized available |
DN20 | 130 | G1B | Φ21x9.2mm 17.2x1.5 |
Φ14x46mm |
customized available |
DN25 | 160 | G1-1/4B | Φ21x9.2mm 17.2x1.5 | Φ17x60mm | customized available |
DN32 | 180 | G1-1/2B | Φ21x9.2mm 17.2x1.5 | Φ22.5x60mm | customized available |
DN40 | 200 | G2B | Φ21x9.2mm 17.2x1.5 | Φ28.5x60mm | customized available |
Process equipment
-numerical machining bed
-CNC center
-Various numerical machining and drilling equipments
Question and Answers:
-Q: What is the most accurate flow meter, and what is the most popular used water meter?
-A: In terms of accuracy or precision of a flow meter, it depends on the application, a wide range of intelligent flow meters type are for selection: electromagnetic flow meter, ultrasonic flow meter, turbine flow meter, coriolis flow meter, etc. From the point of volumetric water metering, it's mechanical water meter, voumetric water meter, ultrasonic water meter, etc.
