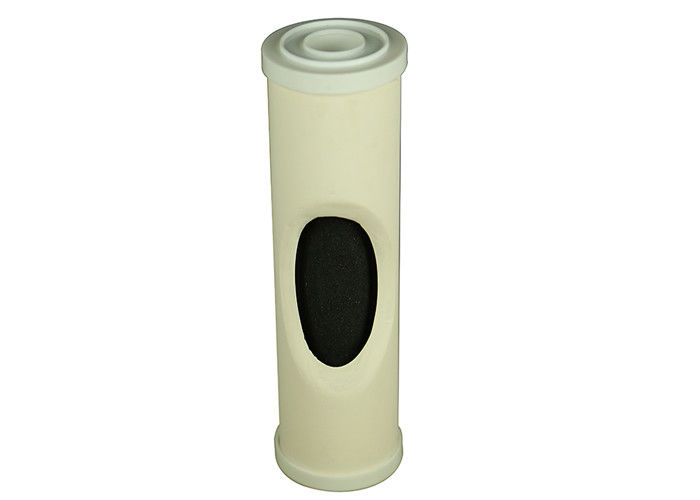

Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch

Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch

    • Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch
  • Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: B-BS

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: 2
    Packaging Details: carton
    Delivery Time: 10 days
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: Pottery Filter Cartridge Filter Media: Ceramic, Optional GAC Or CTO Insert
    Micron Rating: 0.2 - 0.5 µm Work Pressure: 0.15 - 0.3 Mpa
    PH Range: 5.5 - 9.5 Flow Rate: 1.5 L/H - 3 L/H @ 10" Length
    Diameter: Standard 25 - 250mm Length: 7", 10"
    High Light:

    industrial filter cartridges

    ,

    stainless steel filter cartridges

    Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch



    Description

    This silver impragnated ceramic cartridge, which contains a specially formulated self-sterilizing silver compound, hence, the sterasyl element is permanately sterilized even after cleaning. The cartridge offers benefit to your health for cyst, turbidity, particulate reduction, and self-sterilizing effects.



    Features and Benefits

    • Ceramic cartridge elements are Double-Open-Ends (DOE).
    • 2x9.75 inch ceramic cartridges is designed to fit industry standard 10 inch housing.
    • Ideal prevention for reverse osmosis (RO) membrane microbiological fouling.
    • Additional safety for UV systems in reduction of turbidity down to 0.07 NTU.
    • Cleanable up to 60 times.

    Materials of construction

    Description B-B Normal B-B Steryl B-B CTO B-B + GAC
    Filter precision 0.2 - 0.5 µm 0.2 - 0.5 µm 0.2 - 0.5 µm 0.2 - 0.5 µm
    Work pressure 0.15 - 0.3 Mpa 0.15 - 0.3 Mpa 0.15 - 0.3 Mpa 0.15 - 0.3 Mpa
    Temperature () 5 - 38 5 - 38 5 - 38 5 - 38
    PH range 5.5 - 9.5 5.5 - 9.5 5.5 - 9.5 5.5 - 9.5
    Gravity filter yes yes yes yes
    Normal replacement cycle 12 monthes 12 monthes 12 monthes 12 monthes
    Flow rate at 0.3 Mpa / 3 bar 1.5 - 3 LPM 1.5 - 3 LPM 1 - 2.5 LPM 1 - 2.5 LPM
    Treatment capacity 10000 L 10000 L 6000 L 6000 L
    Bacteria removal rate % 99.99 % 99.99 % 99.99 % 99.99 %
    Cyst removal rate % 99.99% 99.99 % 99.99 % 99.99 %
    Chlorine removal rate % No no 96% 96%
    Heavy metal (Lead) removal % No no 80% 80%



    Customized available

    Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 0Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 1Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 2

    For gravity filter - undersink, counter top, or water mount water filter housing

    Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 3Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 4
