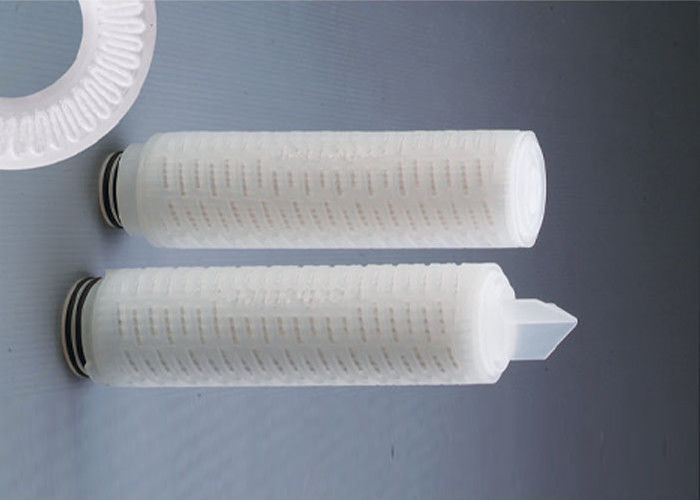

Polyestersulfone Double Layered PES Filter Cartridge For Microelectronic

Polyestersulfone Double Layered PES Filter Cartridge For Microelectronic

    • Polyestersulfone Double Layered PES Filter Cartridge For Microelectronic
  • Polyestersulfone Double Layered PES Filter Cartridge For Microelectronic

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: DPS

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: 20
    Packaging Details: carton
    Delivery Time: 10 days
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: PES Pleated Filter Cartridge Element Filter Media: Polyestersulphone
    Support Layer: Polypropylene Core/Cage/End Caps: Polypropylene
    End Cap Type: DOE, 222 O-ring, 222/Fin, 226 O-ring Temperature: 90 ℃
    Max Pressure: 58 Psi (4 Bar) @ 21 ℃ Seal: Silicone, EPDM, Viton, PFA / Viton
    Dia / Length: 68mm / 5" , 10" , 20", 30", 40"
    High Light:

    industrial filter cartridges

    ,

    stainless steel filter cartridges

    Polyestersulfone double layered PES filter cartridge for microelectronic



    Description

    Double-layered Polyethersulfone PES Filter Cartridges delivers out superior flow rates. The pleated construction featuresa high-surface area design, that allows for excellent flow rates and high particle removal efficiency.

    Hydrophilic polyethersulfone membrane cartridges require no prewetting and are ready to use. The DPS Series of filter cartridges meets or exceed requirements for the filtration of liquids in the fabrication of microelectronic devices and other recirculation applications.



    Features and Benefits

    • Double-layered polyethersulphone membrane provides excellent reliability of sterilization
    • Double-layered provides grade pore size to improve life time
    • Provides broad chemical compatibility
    • Specially designed to ensure cleanliness

    Materials of construction

    Filter media double layered polythersulphone
    Support layer Polypropylene
    Core / Cage / End caps Polypropylene
    O-rings Silicone / EPDM / Viton / PFA-viton
    End type DOE , 222 O-ring, 222/Fin, 226 O-ring/fin



    Operation conditions

    Max operate temperature 194 ℉( 90 ℃ )
    Max operate Pressure 58 psi (4 bar) / 70℉(21℃)
    34.8 psi (2.4 bar) / 158℉(70℃)
    Steaming sterilize 121 ℃ / 30min



    Applications

    • Bottled water
    • Biological
    • DI wate
    • Electronic
    • Food & Beverage
    • Process water
    • Medicine
    • Vinegar
    • Edible oils





    Specifications

    Model Micron rating End cap Length Seals
    DPS

    2210 - 0.22 /  0.1 μm

    2222 - 0.22 / 0.22 μm

    4522 - 0.45 / 0.22 μm

    6545 - 0.65 / 0.45 μm

    DOE - double open flat

    HTC - 222 O-ring flat

    HTF - 222 / Fin

    HSF - 226 / Fin

    05 - 5 inch

    10 - 10 inch

    20 - 20 inch

    30 - 30 inch

    40 - 40 inch

    S - Silicone

    E - EPDM

    V - Viton

    P - PFA / Viton





    Competitive advantage

    Our membrane pleated filter cartridge are absolute-rated filtration media for prefiltration. All components are thermally bonded without adhesives or hot-melts. These filter cartridges deliver high flow rates with low pressure drops. They can withstand repeated heat & steam sterilizations and sanitizations, while providing extremely low extractables and high dirt-holding capacity. The graded-density microfiber filters are distinguished by their absolute particulate ratings, which are maintained even under the most severe process conditions. Fully automated production gives our filter cartridges the most uniform, consistent construction and performance available anywhere. Assembly, testing and packaging are in cleanroom. Pleated membrane filter cartridges are available in PVDF, PES, PP, PTFE. Pleated prefilter cartridges are also available in PP microfiber media and glass microfiber media, as well as PP microfiber depth media.
