Glass Microfiber Cartridge Filter Vessels For Air And Gas Filter , Steaming Sterilize

Glass Microfiber Cartridge Filter Vessels For Air And Gas Filter , Steaming Sterilize

    • Glass Microfiber Cartridge Filter Vessels For Air And Gas Filter , Steaming Sterilize
  • Glass Microfiber Cartridge Filter Vessels For Air And Gas Filter , Steaming Sterilize

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: GGFP

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: 20
    Packaging Details: carton
    Delivery Time: 10 days
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: Glass Microfiber Filter Media: Polypropylene
    Support Layer: Polypropylene Core: SS304 Or Polypropylene
    End Cap Type: Polypropylene Temperature: 90 ℃
    Dia / Length: 68mm / 5" , 10" , 20", 30", 40" Seal: Silicone, EPDM, Viton, PFA / Viton

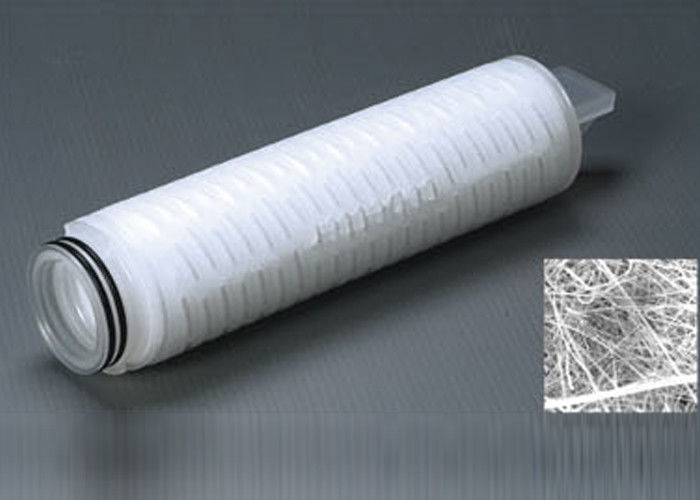

    Glass microfiber filter cartridge for air and gas filter, steaming sterilize



    Description

    Glass Microfiber Filter Cartridge for Gas, made with high voidage glass fiber media for enhanced filter life. Due to the high particulate removal efficiency and low pressure drops consistent with glass fiber media, GGFP filters effectively protect sterilizing-grade filters in air and gas applications. The glass fiber media provide high dirt-holding capacity.



    Features and Benefits

    • Fine adsorptive effect make sure excellent particle retention efficiency
    • High surface area and high voids volume filter media
    • Reliable efficient protection of final sterilization filters
    • Exceptionally high flow rates with low pressure drops
    • High-capacity for long-life
    • Repeatedly steam sterilisable

    Materials of construction

    Filter media Glass microfiber
    Support layer Polypropylene
    Core / Cage Polypropylene or SS304
    End caps Polypropylene
    O-rings Silicone / EPDM / Viton / PFA-viton



    Operation conditions

    Max operate temperature 120 ℃
    Max operate Pressure

    58 psi (4 bar) / 70℉(21℃)

    34.8 psi (2.4 bar) / 158 ℉(70 ℃)

    Steaming sterilize 121 ℃ / 30min



    Applications

    • Process gas
    • Food & beverage
    • Sterile air
    • Microbial control of compressed air

    End cap

    Glass Microfiber Cartridge Filter Vessels For Air And Gas Filter , Steaming Sterilize



    Specifications

    Model Micron rating End cap Length Seals
    APBT

    0001 - 0.1μm

    0003 - 0.3μm

    0050 - 0.5 μm

    DOE - double open flat

    TC - 222 O-ring flat

    TF - 222 / Fin

    SF - 226 / Fin

    05 - 5 inch

    10 - 10 inch

    20 - 20 inch

    30 - 30 inch

    40 - 40 inch

    S - Silicone

    E - EPDM

    V - Viton





    TEM particle analysis

    Glass Microfiber Cartridge Filter Vessels For Air And Gas Filter , Steaming Sterilize

    Competitive advantage

    Our membrane pleated filter cartridge are absolute-rated filtration media for prefiltration. All components are thermally bonded without adhesives or hot-melts. These filter cartridges deliver high flow rates with low pressure drops. They can withstand repeated heat & steam sterilizations and sanitizations, while providing extremely low extractables and high dirt-holding capacity. The graded-density microfiber filters are distinguished by their absolute particulate ratings, which are maintained even under the most severe process conditions. Fully automated production gives our filter cartridges the most uniform, consistent construction and performance available anywhere. Assembly, testing and packaging are in cleanroom. Pleated membrane filter cartridges are available in PVDF, PES, PP, PTFE. Pleated prefilter cartridges are also available in PP microfiber media and glass microfiber media, as well as PP microfiber depth media.
