Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP

Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP

    • Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP
    • Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP
  • Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: FS10-04C

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Negotiable
    Packaging Details: carton
    Delivery Time: 4 weeks
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description

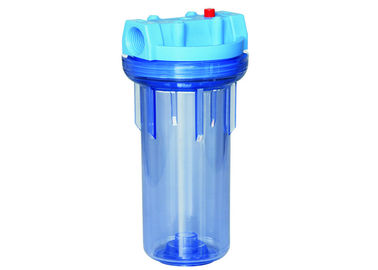

    Product Name: PP Cartridge Filter Housing Material Of Construction: Polypropylene PP
    Operation Pressure: 0.8 Mpa Seal: Single O-ring
    Port Connect: Threaded BSP , NPT Gasket: Buna-N , EPDM
    Filter Element: Dia. 2.5" X 20", Application: 5 Stage RO 50GPD

    Plastic cartridge filter housing for wall mount water filter 1/4" inlet/outlet sediment cartridge PP



    Data sheet

    Model Description Dimensions Pressure difference @ flow rate (L/minute)
    FSI10BB 10" Big blue black HFPP with vent 3/4" 324 x 187 mm 0.14 bar @ 57 LPM
    FSI20BB 20" Big blue balck HFPP with vent 3/4 " 585 x 187 mm 0.14 bar @ 57 LPM
    FSI10BB1 10" Big blue black HFPP with vent 1" 338 x 189 mm 0.07 bar @ 57 LPM
    FSI20BB1 20" Big blue black HFPP with vent 1" 590 x 189 mm 0.07 bar @ 57 LPM



    Technical Parameters

    Parameters Data
    Max. operation pressure 150PSI
    Max. design temperature 50℃
    Construction materials Housing body: polypropylene, cover: ABS
    Inlet/outlet  NPT, or FNPT, BSP, Flange, Victaulic, Tri-clamp
    Vent  1/4" NPT
    Drain 1/4" NPT



    Descriptions

    The slim plastic cartridge filter housing are widely used for water filtration, reverse osmosis, under sink water filter, count top water filter. It can be with Dia. 2.5" x L 10" melt blown  PP filter cartidge, wound filter cartridge, membrane filter cartridge. End seal type: DOE, 222 O-ring, 226 O-ring, 226 Fin.



    Accessories

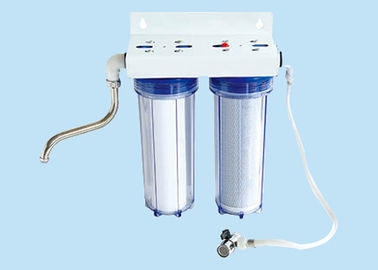

    -Count top water filter

    Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP

    Mount Bracket

    Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP

    Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP

    Filter cartridge element

    Plastic Cartridge Filter Vessels For Wall Mount Water Filter 1/4" Inlet/Outlet Sediment Cartridge PP

    Features:

    • Polypropylene molded construction
    • FNPT / BSP thread connection
    • Suitable for PP spun filter cartidge, string wound filter cartridge, membrane pleated filter cartridge
    • Double o-ring seals
    • Cover vent and drain valve

    Applications

    Water Treatment Oil & Gas Automobiles Cement
    Refineries Textiles Petro Chemicals Power Plant
    Pharma & Biotech Steel Industries Dyes & Intermediates Paints & Inks
    Sugar Industry Electronics Mining Food & beverage
    Edible Oil Aeronautics Fertilizers Pipe
    Pulp & Paper Electoplating Aerospace Chemicals
    Dairy, Food & Beverage Aerospace , Defence & Marine





    Competitive advantage

    Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
