Hydrophobic PTFE Membrane Pleated Cartridge Filter Vessels For Gas Filtration

Hydrophobic PTFE Membrane Pleated Cartridge Filter Vessels For Gas Filtration

Hydrophobic PTFE Membrane Pleated Cartridge Filter Vessels For Gas Filtration

Product Details:

Place of Origin: China
Brand Name: Purescience
Certification: ISO9001/SGS
Model Number: GPF

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: USD50
Packaging Details: carton
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, D/P
Contact Now
Detailed Product Description
Product Name: Polysulphone Filter Cartridge Filter Media: Assymetric Polysulphone
Support Layer: Polypropylene Core/Cage/End Caps: Polypropylene
End Cap Type: DOE, 222 O-ring, 222/Fin, 226 O-ring Diameter: 68mm / 71mm
Length: 5" , 10" , 20", 30", 40" Seal: Silicone, EPDM, Viton, PFA / Viton

PS membrane pleated filter cartridge for semi conductor filtration 0.02μm



Description

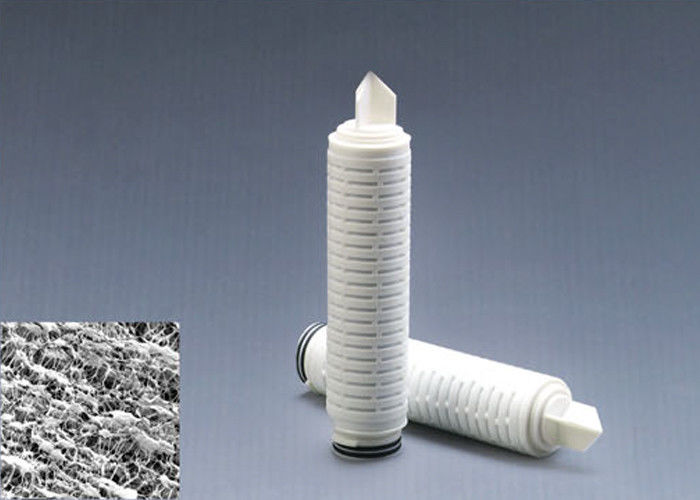

Hydrophobic PTFE Membrane Filter Cartridge for Gas(GPF), manufactured with hydrophobic PTFE membranes, are specially designed for the removal of micro-organisms and particles from air and gases.

Due to their permanent hydrophobicity, GPF offer the highest process security, even with high volume gas streams, extreme humidity and stringent in-line steam sterilizations.



Features and Benefits

  • 100% integrity tested to released assuring absolute reliability
  • Enhanced steaming resistance
  • Stainless steel inner core
  • Exceptionally high flow rates with low pressure drops
  • Materials meet US FDA Title 21 and USP Class VI requirements

Materials of construction

Filter media Hydrophobic PTFE membrane
Support layer Polypropylene (PP)
Cage Polypropylene (PP)
Core 304SS stainless steel / Polypropylene
End caps Polypropylene with 304SS insert
O-rings Silicone / EPDM / Viton / PFA & Viton
End type DOE , 222 O-ring, 222/Fin, 226 O-ring



Operation conditions

Max operate temperature 194℉(90℃)
Max operate Pressure 72.5 psi (5 bar)/70℉(21℃)
34.8psi(2.4bar)/158℉(70℃)
Steam sterilize 121℃/30min



Applications

Fermentation inlet gas Tank vents process gas compressed air
Sterile CO2 filtration bulk and point of use gas ventilation steam
Large Volume Parenterals (LVP) Buffers DI water wine
cleaning and sanitizing agents food & beverage beer chemical
bulk pharmaceuticals terminal filtration bacteria removal mineral water



Order selection

Hydrophobic PTFE Membrane Pleated Cartridge Filter Vessels For Gas Filtration

Competitive advantage

Our membrane pleated filter cartridge are absolute-rated filtration media for prefiltration. All components are thermally bonded without adhesives or hot-melts. These filter cartridges deliver high flow rates with low pressure drops. They can withstand repeated heat & steam sterilizations and sanitizations, while providing extremely low extractables and high dirt-holding capacity. The graded-density microfiber filters are distinguished by their absolute particulate ratings, which are maintained even under the most severe process conditions. Fully automated production gives our filter cartridges the most uniform, consistent construction and performance available anywhere. Assembly, testing and packaging are in cleanroom. Pleated membrane filter cartridges are available in PVDF, PES, PP, PTFE. Pleated prefilter cartridges are also available in PP microfiber media and glass microfiber media, as well as PP microfiber depth media.



Laboratory

Hydrophobic PTFE Membrane Pleated Cartridge Filter Vessels For Gas Filtration

Instrument - SEM

Hydrophobic PTFE Membrane Pleated Cartridge Filter Vessels For Gas Filtration

FTIR

Hydrophobic PTFE Membrane Pleated Cartridge Filter Vessels For Gas Filtration
