Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

    • Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological
    • Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological
  • Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: APS

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD50
    Packaging Details: carton
    Delivery Time: 2 weeks
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: PS Membrane Pleasted Filter Cartridge Filter Media: Assymetric Polysulphone
    Support Layer: Polypropylene Core/Cage/End Caps: Polypropylene
    End Cap Type: DOE, 222 O-ring, 222/Fin, 226 O-ring Diameter: 68mm / 71mm
    Length: 5" , 10" , 20", 30", 40" Seal: Silicone, EPDM, Viton, PFA / Viton

    Asymmetric polysulfone PS membrane pleated filter cartridge for pre filter pharmaceutical and biological



    Description

    Asymmetric Polysulfone PS Membrane Filter Cartridges-APS, feature a unique single layer, asymmetric hydrophilic polysulphone membrane. This membrane is characterized by excellent throughput and higher durability in many applications such as pharmaceutical and biological filtration and beverage filtration. Higher flow-rates than any other sterilizing grade filter cartridge offers, so APS assures thereby most economic design of filtration systems.



    Features and Benefits

    • Provides broad chemical compatibility
    • Asymmetric polysulphone membrane makes high dirt holding and long service life
    • High surface area design provides excellent flow rates
    • Available in absolute ratings from 0.2 to 1.2 microns for a range of precise size removal

    Materials of construction

    Filter media Asymmetric polysulphone (PS)
    Support layer Polypropylene (PP)
    Core / Cage / End caps Polypropylene (PP)
    O-rings Silicone / EPDM / Viton / PFA & Viton
    End type DOE , 222 O-ring, 222/Fin, 226 O-ring



    Operation conditions

    Max operate temperature 194℉(90℃)
    Max operate Pressure 58psi(4bar)/70℉(21℃)
    34.8psi(2.4bar)/158℉(70℃)
    Hot water sterilization 85℃/30min
    Steam sterilize 121℃/30min



    Applications

    Large Volume Parenterals (LVP) Buffers DI water wine
    cleaning and sanitizing agents food & beverage beer chemical
    bulk pharmaceuticals terminal filtration bacteria removal mineral water



    Flow curve

    Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

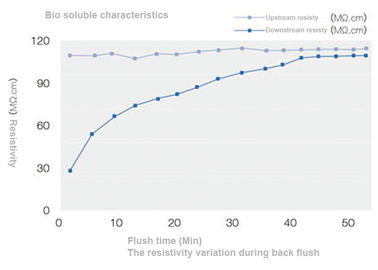

    Extractables characteristics

    Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

    Order selection

    Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

    Competitive advantage

    Our membrane pleated filter cartridge are absolute-rated filtration media for prefiltration. All components are thermally bonded without adhesives or hot-melts. These filter cartridges deliver high flow rates with low pressure drops. They can withstand repeated heat & steam sterilizations and sanitizations, while providing extremely low extractables and high dirt-holding capacity. The graded-density microfiber filters are distinguished by their absolute particulate ratings, which are maintained even under the most severe process conditions. Fully automated production gives our filter cartridges the most uniform, consistent construction and performance available anywhere. Assembly, testing and packaging are in cleanroom. Pleated membrane filter cartridges are available in PVDF, PES, PP, PTFE. Pleated prefilter cartridges are also available in PP microfiber media and glass microfiber media, as well as PP microfiber depth media.



    Laboratory

    Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

    Instrument - SEM

    Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological

    FTIR

    Asymmetric Polysulfone PS Membrane Pleated Filter Cartridge Filter Vessels For Pre Filter Pharmaceutical And Biological
