Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White

Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White

    • Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White
    • Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White
  • Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: FS20-03W

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Negotiable
    Packaging Details: carton
    Delivery Time: 4 weeks
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: PP Cartridge Filter Housing Material Of Construction: PP
    Operation Pressure: 0.8 Mpa Seal: Single O-ring
    Port Connect: Threaded BSP , NPT Gasket: Buna-N , EPDM
    Filter Element: Dia. 2.5" X 20", Application: Counter Top Water Filter
    High Light:

    industrial filter cartridges

    ,

    stainless steel filter cartridges

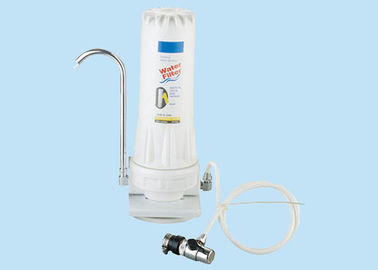

    Counter top water filter with white plastic PP cartridge filter housing 10" / 2.5" white



    Features

    • Polypropylene sturdy construction and O-Ring seals
    • Max operation pressure:
      - Standard 10" & 20" slim cartridge filter housings: 125psi (8.8 kg/cm2)
      - Big Blue 10" BB: 100psi (7kg/cm2)
      - Big Blue 20" BB: 90psi (6.3kg/cm2)
    • Female NPT Inlet / outlet port connections
    • Pressure Relief Valve as option for industrial applications

    Data sheet

    Model Inlet/outlet Thread port

    Pressure

    relief

    Cartridge

    Length

    House/cap

    color

    Dimensions Package
    FS20LB 3/8" NPT yes 20" blue / black 580 x 136 mm 6 pcs
    FS20CB 3/8" NPT yes 20" clear / black 580 x 136 mm 6 pcs
    FS20LB12 1/2" NPT yes 20" blue / black 580 x 136 mm 6 pcs
    FS20CB12 1/2" NPT yes 20" clear / black 580 x 136 mm 6 pcs



    Technical Parameters

    Parameters Data
    Max. operation pressure 150PSI
    Max. design temperature 50℃
    Construction materials Housing body: polypropylene, cover: ABS
    Inlet/outlet  NPT, or FNPT, BSP, Flange, grooved, Tri-clamp
    Vent  1/4" NPT
    Drain 1/4" NPT



    Descriptions

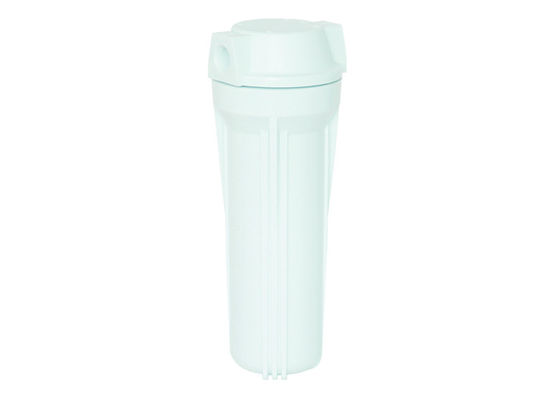

    This 20" slim plastic cartridge filter housings are finely made of sturdy polypropylene. It's for pretreatment of residential RO water purifier, commercial reverse osmosis system, water filter.



    Accessories

    -Count top water filter

    Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White 0Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White 1

    Mount Bracket

    Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White 2

    Filter cartridge element

    Counter Top Water Filter Cartridge Filter Vessels With White Plastic PP Cartridge Filter Housing 10" / 2.5" White 3

    Features:

    • Polypropylene molded construction
    • FNPT / BSP thread connection
    • Suitable for PP spun filter cartidge, string wound filter cartridge, membrane pleated filter cartridge
    • Double o-ring seals
    • Cover vent and drain valve

    Applications

    Water Treatment Oil & Gas Automobiles Cement
    Refineries Textiles Petro Chemicals Power Plant
    Pharma & Biotech Steel Industries Dyes & Intermediates Paints & Inks
    Sugar Industry Electronics Mining Food & beverage
    Edible Oil Aeronautics Fertilizers Pipe
    Pulp & Paper Electoplating Aerospace Chemicals
    Dairy, Food & Beverage Aerospace , Defence & Marine





    Competitive advantage

    Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
