Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements

Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements

    • Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements
    • Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements
  • Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: CH2018

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: carton
    Delivery Time: 3 weeks
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 2000 pieces per month
    Contact Now
    Detailed Product Description
    Name: PVDF Chemical Filtration Systems Material: FRPP / PVDF / CPVC
    Flow: 375 L/min Filtration Area: 1.8 - 4.8 M2
    Suitable Plating Tank: 4000 L - 6000 L Temperature: 90 ℃
    Pump Power: 1 HP - 5 HP Inlet/out Port Size: 1.5" - 2"
    Filter Media: Cartridge, Filter Paper, Below,

    Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements

    General Description
    These chemical filtration system are for liquid handling of various chemicals, surface finishing and other wet process applications. It's corrossion resistant, include pumps by self priming, magnetic coupled, non self priming, filter cartridge element, filter media and agitation systems.

    Specifications:

    Model

    Flow

    (L/min)

    Filter

    area

    Type

    Cartridge

    specification

    Temp.

    (C)

    Motor

    (pole)

    Power

    (hp)

    Inlet/outlet
    CBC-2006 150 0.60 Screw 20" x 6 90 2 1 1.5"
    CHC-2006 150 0.60 pressure core 20" x 6 90 2 1 1.5"
    CPC-2333 240 1.37 paper D23cm * 33 90 2 1 1.5"
    CBC-2008 240 0.80 Screw 20" x 8 90 2 1 1.5"
    CHC-2008 240 0.80 pressure core 20" x 8 90 2 1 1.5"
    CPC-3033 330 2.47 paper D30cm * 33 90 2 2 1.5"
    CKC-4524 330 2.64 below L45cm * 24 90 2 2 1.5"
    CBC-2012 330 1.20 screw 20" x 12 90 2 2 1.5"
    CHC-2012 330 1.20 pressure core 20" x 12 90 2 2 1.5"
    CKC-3740 375 4.30 below D37cm * 40 90 2 3 2"
    CPC-5928 375 4.80 paper L59cm * 28 90 2 3 2"
    CHC-2018 375 1.80 pressure core 20" x 18 90 2 3 2"
    CBC-2018 375 1.80 screw 20" x 18 90 2 3 2"
    CBC-2024 450 2.4 screw 20" x 24 90 2 5 2"


    Features:

    • Made of Polypropylene (PP) / PVDF Filter
    • Machined PP chamber for cartridge or disc
    • Optional purification chambers with a reusable canister
    • Corrosion resistant PP 4-pillar base
    • Viton / NBR / EPDM elastomers
    • Magnetic coupled pump (PP/Carbon/Ceramic), self priming pump or non-self priming pump
    • Stainless steel external fasteners
    • PP vent valve
    • Pressure gauge guard assembly
    • Union connections

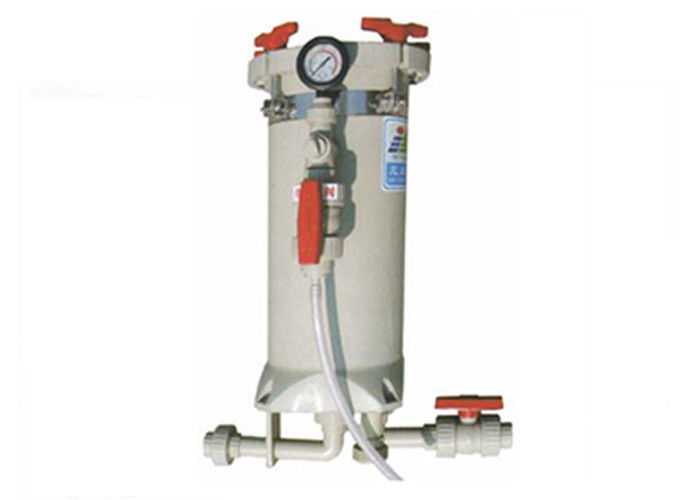

     Complete view
    Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements

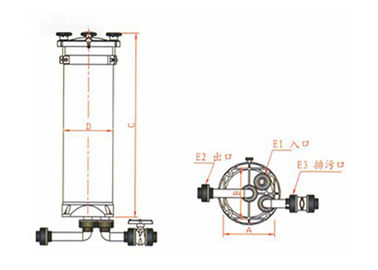

    Filter tank
    Chemical filtration systems with PVDF cartridge filter housing 20" by 18 elements

    Applications:

    Electroplating solution

    PCB industry

    Dyeing industry

    Pharmaceutical

    Waste water treatment

    Effluent treatment plant

    Water treatment

    Food processing cleaning

    Photographic

    Chemical

    Petrochemical

    beverage

    Waste gas scrubber

    Waste gas absorption tower

    Reaction tank


    Competitive advantage
    These filter chambers are designed for filtering process solutions where clarification will extend operating life and
     improve quality. The filtration vessels and chemical pumps are made by one piece injection non-
    metallic soultion contact plastic, CPVC, FRPP (Fiber glass reinforced polyepropylene), PVDF, which features
     heavy duty construction, chemical, acid/alkali resistance.
