PVDF Chemical Filtration Systems For Nickel Plating Solution Filter And Surface Finish Industry

PVDF Chemical Filtration Systems For Nickel Plating Solution Filter And Surface Finish Industry

PVDF Chemical Filtration Systems For Nickel Plating Solution Filter And Surface Finish Industry

Product Details:

Place of Origin: China
Brand Name: Purescience
Certification: ISO9001/SGS
Model Number: CB2018

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: carton
Delivery Time: 3 weeks
Payment Terms: L/C, T/T, D/P
Supply Ability: 2000 pieces per month
Detailed Product Description
Product Name: Chemical Filtration System CB-2004 Material: FRPP / PVDF / CPVC
Flow: 375 L / Min Filtration Area: 1.8 M2 / 4.3m2
Suitable Plating Tank: 4 - 6 KL Temperature: 65 ℃
Pump Power: 180w / 260w Inlet/out Port Size: 2"
Filter Media Type: Cartridge / Paper / Below / Pressure Core

PVDF Chemical Filtration System for nickel plating solution filter and surface finish industry



Introduction

The chemical filtration chamber are with single open ended or double open ended depth type, wound, pleated, melt-blown, or carbon cartridges. Our range of filter chambers also includes those that accept horizontal disc, bag, bulk resins and carbons. Materials of construction range from PVC to FRPP, PVDF.

For applications from sulfuric acid to seawater and with flow ranges from 1 to 13,000 gpm and pressure ratings to 300 psi, nearly every liquid purification and liquid filtration chambers application.



Specifications:

Model CB-2018 CH-2018 CP-3740 CK-5928
Filtration area (m2) 1.8 1.8 4.3 4.3
Flow (L/Min) 375 375 375 375
Tank volume (KL) 4-6 4-6 4-6 4-6
Temperature (℃) 65 65 65 65
Motor (HP) 3 3 3 3
Inlet/outlet port size 2" 2" 2" 2"
Weight (kg) 114 115 117 116



Description:

1. Excellent application to circulated filtration operations for plating solution, chemical solution, and many

corrosion liquid solution

2. Various filter cartridge elements available for choice and easy operate: lock core filter, pressure core filter,

 pressure layered core filter, filter bag, paper filter, and bellow filter

3. One piece plastic injection filter chambers, the filter housings feature the high temperature resistance and acid

 / alkali corrosion resistance

4. Motor guard avoids corrosion of motor in acid environment

5. The filter vessels provides high precision with wide filtration area, high efficiency, easy to operate and clean

6. Ergonomics design, the modular structure ensure simple interchangeability for filtering cartridge elements

replacement.

7. Motor overload and phase loss protection

8. Equipped with self-priming chemical pump or magnetic chemical pump upon requirement, leak proof,

higher performance and lower power consumption

9. Protecting cover prevent chemical corrosion damage

10. Standard accessories: flange

11. Optional parts: switch with guard, foot valve, check valve, look through tube, filter bag,

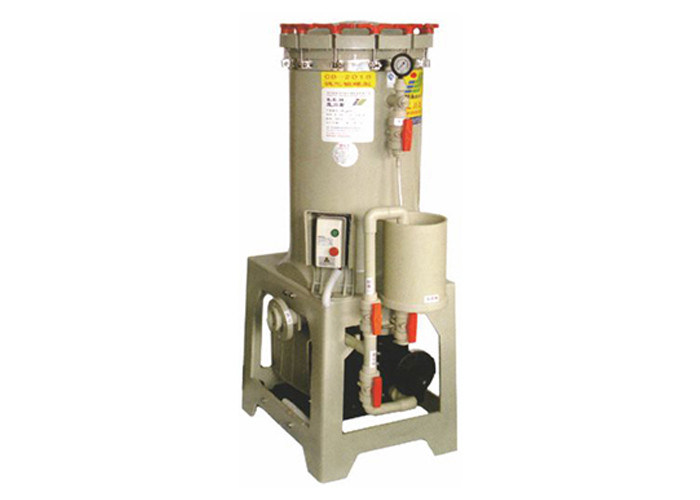

Complete view

PVDF Chemical Filtration Systems For Nickel Plating Solution Filter And Surface Finish Industry



Filter tank

PVDF Chemical Filtration Systems For Nickel Plating Solution Filter And Surface Finish Industry



Applications:

Electroplating solution

PCB industry

Dyeing industry

Pharmaceutical

Waste water treatment

Effluent treatment plant

Water treatment

Food processing cleaning

Photographic

Chemical

Petrochemical

beverage

Waste gas scrubber

Waste gas absorption tower

Reaction tank



Competitive advantage

These filter chambers are designed for filtering process solutions where clarification will extend operating life

and improve quality. The filtration vessels and chemical pumps are made by one piece injection non-

metallic soultion contact plastic, CPVC, FRPP (Fiber glass reinforced polyepropylene),

PVDF, which features heavy duty construction, chemical, acid/alkali resistance.
