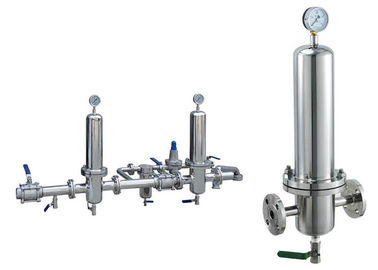

Steam & gas cartridge filter housing systmes for autoclaves in pharmaceutical 1Mpa 121℃

Steam & gas cartridge filter housing systmes for autoclaves in the health care / pharmaceutical 1Mpa 121℃

Specifications:


Description:
The steam & gas filter is designed to help remove both moisture and solid particles, such as pipe scale and rust from the steam supply. It is an stainless steel unit with a removable sinterred austenitic stainless steel element. A single closure nut allows for ease of maintenance, while a cleanable element ensures optimum efficiency and prolonged life.
The main application of the steam & gas filter is to clean up factory or plant steam to reduce containmation level, such as boiler feed chemicals carried over from the boiler off take, so that the end products not adversely affected.

Product Dimensions:


Technical data

• Cartridge adaptor: 222 O-ring / Fin , 226 O-ring / Fin
• Nos of filter cartridge: 3-12
• Length of filter cartridge: 5" / 10" / 20" / 30" / 40"
• Connection port: F BSP /  DIN / CLAMP / JIS / F NPT / F PT
• Inlet / outlet port size: 1", 1.5" , 2" , 2.5" , 3", 4"
• Materials of construction: SS304, 316L
• Gasket seal / O-ring materials: EPDM, Viton, Silicone, PTFE
• Surface finish: Electro polish , Mirrow polish, Sand blasted, Matt Polish, Acid passivation

Application fields:

• Highly corrosive pure steam for sterilization of products and equipment in the bio-technology and pharmaceutical industries
• Steam for direct cooking of food products and sterilization of food and beverage containers.
• Filtered / pure steam for autoclaves in the health care / pharmacy / medicine

Typical applications:

• Natural gas filtration
• CNG & LPG fas filtration
• Oxygen gas
• Nitrogen gas
• H2S gas

Competitive advantage:
A wide range of gas filtration systems for removal of dirt, dust, rust, condensates, moisture contents, oil impurities & exhaust fumes. Filtered gas results low down time & reduces the production loss. These filtration systems are designed depending on their flow requirement, line size, working pressure, working temperature & level of filtration rating. Filter housings can be made of SS 316, SS 304, carbon Steel or aluminum. Filter elements are made of varieties of selective fiber media to achieve desired filtration level.
