Vacuum pressure reducing concentration tank Seawater RO Plant for liquid in pharmacy 1000L

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	ZN-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	wooden pallet
Delivery Time:	6-8 weeks
Payment Terms:	T/T, L/C, D/P
Supply Ability:	10 pieces per month

Contact Now

Detailed Product Description

Product Name:	Vacuum Pressure Reducing Concentration Tank	Model:	ZN
Volume:	50L Up To 1000Liters	Evaporation Capacity:	Up 160 L/h
Dissolved By The Liquid Tank Volume:	Up To 165L	Pressure In Jacket:	< 0.09Mpa
Vacuum (mmHg):	600mmHg - 700mmHg	Heating Area:	0.25 M2 To 2.2m2
Condensing Area:	1.2 M2 To 4.1 M2	Cooling Area:	0.29m2 To 1.05m2
High Light:	industrial filter cartridges , stainless steel filter cartridges

Vacuum pressure reducing concentration tank for concentration of liquid material in pharmacy 1000L

Specifications:

Material of construction: 304ss / 316L
Volume: 50L to 1000L
Evaporation capacity : 20 kg/h to 160kg/h
Dissolved by the liquid tank volume: 15L to 165L
Pressure in jacket: < 0.09Mpa
Vacuum (mmHg): 600 - 700 mmHg
Heating area: 0.25 m2 to 2.2m2
Condensing area: 1.2 m2 to 4.1m2
Cooling area: 0.29 m2 to 1.05m2

Description:

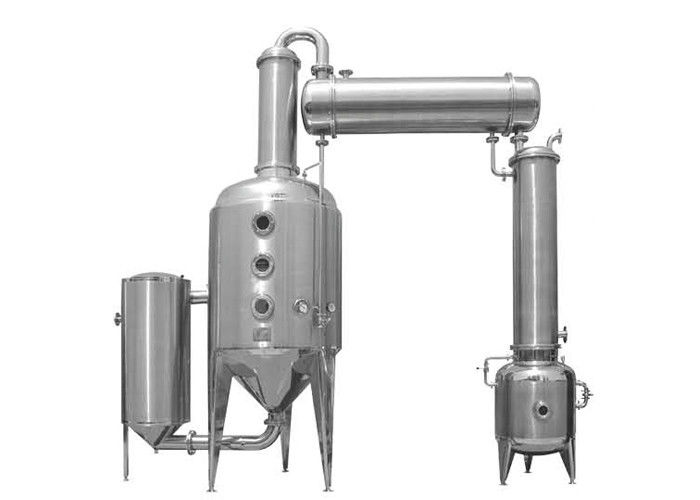

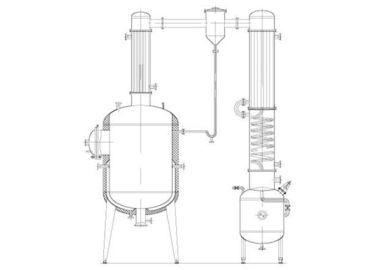

The device mainly includes concentration container, condenser, gas-liquid separator, cooler and liquid receiving barrel. The concentration can is clip-sleeve structure; the condenser is of row-pipe type; the cooler is coiled type. The device is suitable for the concentration of the material liquid in the industrial application, such as: pharmacy, food, chemistry, etc. It serves for the recycle of alcohol, simple returning distillation. The adoption of pressure reducing condensation and scrapper to wall protects the effective components of heat sensitive material. The wet part of the concentrator are made with stainless steel, and corrosion resistance by compliance to GMP standard.

Technical data

Parameters	ZN-50	ZN-100	ZN-200	ZN-300	ZN-500	ZN-700	ZN-1000
Volume (L)	50	100	200	300	500	700	1000
Evaporation capacity ( kg/h )	20	40	60	80	100	130	160
Dissolved by liquid pool volume (L)	15	45	60	76	100	125	165
Pressure in jacket ( Mpa )	<0.09
Vacuum ( mmHg )	600 - 700
Heating area ( ㎡ )	0.25	0.59	0.8	1.1	1.45	1.8	2.2
Condensing area ( ㎡ )	1.2	1.7	2.4	3	3.3	3.6	4.1
Cooling area ( ㎡ )	0.29	0.35	0.45	0.6	0.7	0.85	1.05
Length (mm)	1200	1700	1700	1700	2100	2400	2490
Depth (mm)	600	800	800	1000	1200	1300	1300
Height (mm)	2200	2700	2700	3400	3400	3400	3720

Competitive advantage

Professional skills, high-tech equipment ensure we can provide the best and high quality products. Our compact work process and years of professional experience, enable us to offer you reasonable price and perfect after sale service
