All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001 / ISO14001 |
Model Number: | P3-15 |
Minimum Order Quantity: | 5 |
---|---|
Price: | USD40 |
Packaging Details: | carton |
Delivery Time: | 2 weeks |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 10000 |
Description: | Inline UF Water Filter | Operate Pressure: | 0.1 - 0.3 Mpa |
---|---|---|---|
Filter Media: | UF (PAN) | Inlet / Outlet Port: | 3/4" Thread |
Capacity: | 300 LPH - 2500 LPH | Micron Rating: | 0.1 Micron |
Housing Material: | SS304 | Housing Diameter: | 130 Mm |
High Light: | reverse osmosis equipment,ro water treatment |

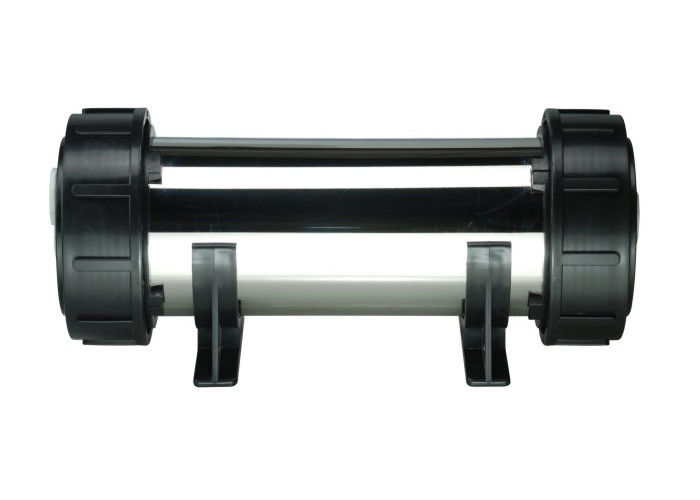

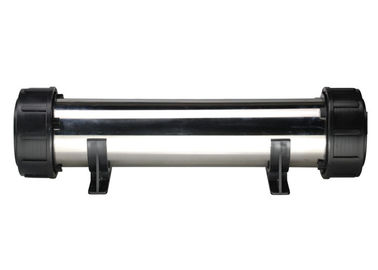

Ultrafiltration water filter, Pipeline type SS304 PAN UF, 1500LPH
Description
The Ultrafiltration water filters are designed to produce potable, purified water from tap or well water, these UF water purification systems use high efficiency ultrafiltration membranes. The filtered product water can be used in commercial and residential drinking applications such as water stores, RO pretreatment, whole house, laboratories, bottled water and other similar applications.
Key features
Specification
Model |
Dimensions (mm) |
Housing material |
Water pressure (Mpa) |
Flow rate (L/H) |
Filter media |
Inlet outlet |
P3-F05 | Dia. 130 * L 385 | SS304 | 0.1 - 0.3 | 500 | UF | 1/2" Male |
P3-F10 | Dia. 130 * L 560 | SS304 | 0.1 - 0.3 | 1000 | UF | 1/2" Male |
P3-F15 | Dia. 130 * L 765 | SS304 | 0.1 - 0.3 | 1500 | UF | 3/4" Male |
P3-F20 | Dia. 130 * L 965 | SS304 | 0.1 - 0.3 | 2000 | UF | 3/4" Male |
Different capacity available
