Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ANSI/AWWA/ASTM/ANSI/ |
Model Number: | YZF4-11A |
Minimum Order Quantity: | 200 pieces |
---|---|
Price: | negotiable |
Packaging Details: | carton and pallet |
Delivery Time: | 2 to 3 weeks |
Supply Ability: | 100000 pieces per month |
Product Name: | Socket Connection Weld Stop Valve YZF4-11A | Model: | YZF4-11A |
---|---|---|---|
Diameter: | 25mm To 65mm | Pressure Rating: | PN0.6 Mpa To PN80 Mpa |
Temperature Range: | -190 ℃ To 220 ℃ ( 70 ℃ To 570 ℃ ) | Material: | 1Cr18Ni9Ti , SS304 , 316, 316L , 12Cr1Mov , TA2 , F55 , C-276 , F51 |
Standards: | ANSI / ASME / BSP / DIN | Media Type: | Water, Oil, Gas, Many Types Of Liquid Fluid Media |
End Port Connect: | Flange | ||
High Light: | high pressure needle valve,water stop valve |

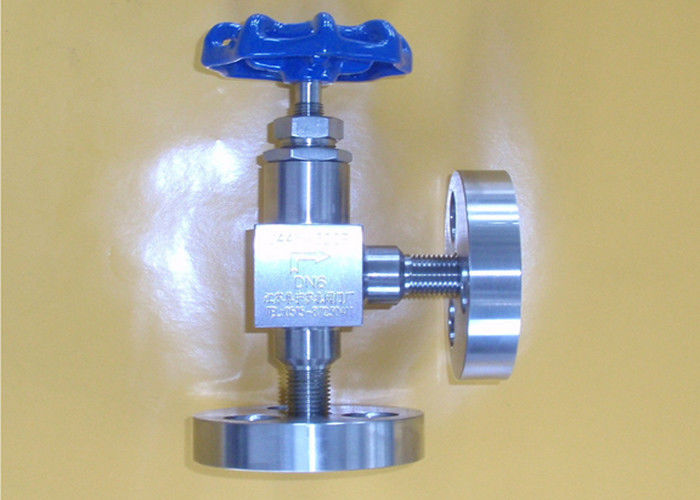

Flange angle type stop valve for swimming pools PN0.6 Mpa to PN80 Mpa DN10 to DN65
Specifications
No | Pipe connection Dia. | Pressure rating | D1 | D2 | D | H1 | H2 | D0 | L |
1 | DN6mm | PN0.6 Mpa to PN80 Mpa | 42 | - | 70 | 80 | 88 | - | 60 |
2 | DN10mm | PN0.6 Mpa to PN80 Mpa | 70 | 35 | 105 | 105 | 113 | 75 | 170 |
3 | DN15mm | PN0.6 Mpa to PN80 Mpa | 75 | 40 | 110 | 120 | 132 | 100 | 170 |
4 | DN20mm | PN0.6 Mpa to PN80 Mpa | 90 | 51 | 130 | 135 | 146 | 130 | 190 |
Description
No end to applications of pipe fittings, so long no end to the applications of pipes . The list of piping applications continues to expand, its strength, flexibility, very good flow rates and high chemical resistance are qualities which are uniquely suited for the movement or transfer of liquids, steam, solids and air from one point to another. With piping, pipe fittings have many other uses like as follows:
Materials used:
Applications
Competitive advantage
Cast Process Design by by Castsoft CAD and CAE
Strict Manufacturing Process control
Quality Control Of The Casting Material
Metal Material Laboratory for test of compositional, metallographic & mechanical property
Perfect apperance
