Super duplex high pressure pump sea water ro plant for seawater purification 550000 GPD

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	SWR-550K

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiation
Packaging Details:	Container or wooden pallet
Delivery Time:	60 working days after receipt of payment
Payment Terms:	T/T or LC, D/A
Supply Ability:	5 pcs per month

Contact Now

Detailed Product Description

Product Name:	Reverse Osmosis Seawater Desalination Equipment	Production Capacity:	2000m3/day
Feed TDS:	Up To 42000 Ppm	Operation Pressure:	700-1000 Psi
Pressure Exchange Energy Recovery:	PX / PI (available To 100m3/day Or Above)	Permeate TDS:	<500 Ppm
High Pressure Pump:	Super Duplex	Control:	PLC
High Light:	reverse osmosis desalination plant , seawater desalination equipment

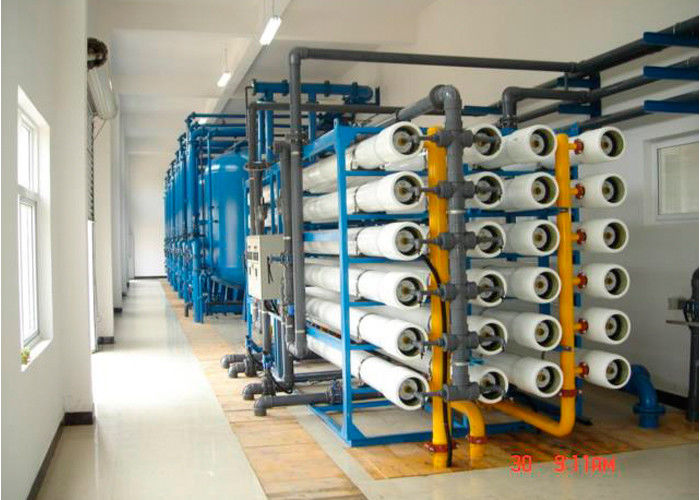

High TDS seawater RO plant for drinking water production 360m3/hr

1. Operation Specifications:

Feed TDS	10,000-42000 ppm
Feed temperature	2-40℃
Feed PH	3-11
Operation pressure	600-1000 psi / 4-6.5 Mpa
Desalination rate	>98%
Permeate water salinaty	<500 mg/L
Capacity	500-750 m3/day
Electricity	380V/50HZ/3PH, other volt please specify upon order
Power	95 Kw
Tonnage electricity consumption	3.5 Kwh/T
Feed water pressure	40-80 psi / 0.1-0.3Mpa

2. Description:
A seawater desalination RO plant requires a number of subsystems in order to function. These include:

Intake System
Pretreatment System
High Pressure Pumps
Reverse Osmosis System
Post Treatment System
Electrical System
Chemical System
Cleaning System
Control and SCADA System
Water Reservoir
Transfers systems

3. Standard features:

Powder coated carbon steel frame

Heavy duty 5 micron cartridge prefilter

Chemical dosing (for 100TPD or above)

Seawater corrosion resistant stainless steel pumps

PLC based controller panel

Liquid filled 316L pressure gauges

Product and reject flow meters

Spriral wound RO membranes

FRP membrane pressure housings up to 1200 psi

Low and high pressure switch

Permeate TDS monitor

Stainless steel high pressure piping

4. Options

PH/ORP controller

Clean-in-place CIP skid

Multimedia prefilter

Activated carbon prefilter

UV sterilization

Mineralization device

Integrated water purification device

Containerized mobile seawater desalination plant

5. Applications

Island-based business	Coastal developments
Work boats	Villages & cities
Hotel and resorts	Fish processing plants
Cargo ships	Seaside work sites
Seaside villas	Oil tankers

6. Competitve advantage
We can assist in all or any number of areas required to plan, implement, operate and maintain your seawater RO desalination plant. Defining the Plant Scope refers to establishing the overall project limits that define who is responsible for each part of the Plant, and where the boundaries exist between client and supplier.
