All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001/SGS |
Model Number: | WE23H |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | negotiation |
Packaging Details: | wooden pallet |
Delivery Time: | 40 working days after receipt of payment |
Payment Terms: | T/T or LC, D/A |
Supply Ability: | 100 pcs per month |
Product Name: | High Pressure Pump | Type: | Self Lubricating Axial Piston Pump |
---|---|---|---|
Lubrication: | Self Lubricating Pump | Category: | Axial Piston Pump |
Capacity: | 23 M3/hour @ 1200rpm | High Pressure Pump: | Super Duplex |
Max Pressure: | 80 Bar / 8 Mpa | ||
High Light: | seawater desalination equipment,sea water reverse osmosis plant |

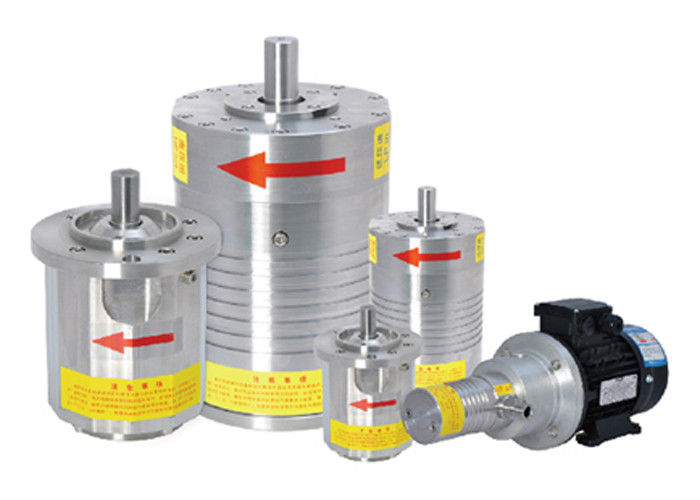

Super Duplex high pressure pump for seawater RO desalination plant 23.2m3/hour 80bar
1. Specifications
Model No. | WE13H | WE15H | WE17H | WE19H | WE21H | WE23H |
Geometric capacity (cm3/rpm) | 191 | 218 | 248 | 280 | 310 | 338 |
Rated flow capacity @1200rpm (m3/hour) | 12.9 | 14.7 | 16.9 | 19.1 | 21.3 | 23.2 |
Min outlet pressure (bar) | 30 | 30 | 30 | 30 | 30 | 30 |
Max continuous outlet pressure (bar) | 80 | 80 | 80 | 80 | 80 | 80 |
Min inlet pressure (bar) | 2 | 2 | 2 | 2 | 2 | 2 |
Max continuous inlet pressure (bar) | 5 | 5 | 5 | 5 | 5 | 5 |
Max peak inlet pressure (bar) | 10 | 10 | 10 | 10 | 10 | 10 |
Max continuous RPM (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Min continuous RPM (rpm) | 700 | 700 | 700 | 700 | 700 | 700 |
Power @rated RPM & 60bar outlet pressure (kw) | 25.4 | 28.3 | 32.7 | 37.1 | 41.3 | 44.6 |
Torque @ 60bar outlet pressure (Nm) | 202 | 225 | 260 | 295 | 341 | 354 |
Weight (kg) | 87.6 | 87.2 | 88.4 | 88 | 88.9 | 88.5 |
2. Descriptions
Inside the pump, there're nine pistons which are parallel to the driven shaft. The nine pistons reciprocate inside the rotating cylinder along the slopping cam plate, then the fluid are conveyed by the volume change incurred by that reciprocating motions.
Curve
3. Key features
4. Applications
5. Parts | accessories
6. Competitive advantage
The self lubricating axial piston pump features its smaller size, but macro energy efficiency. Highest outlet pressure is up to 80 bars (8Mpa), All components are made of corrosion resistance materials: Duplex, Super Duplex, carbon fiber reinforced PEEK. The WE series high pressure pump are widely used in high TDS seawater RO desalination, landfill leachate treatment, waste water treatment, etc.
