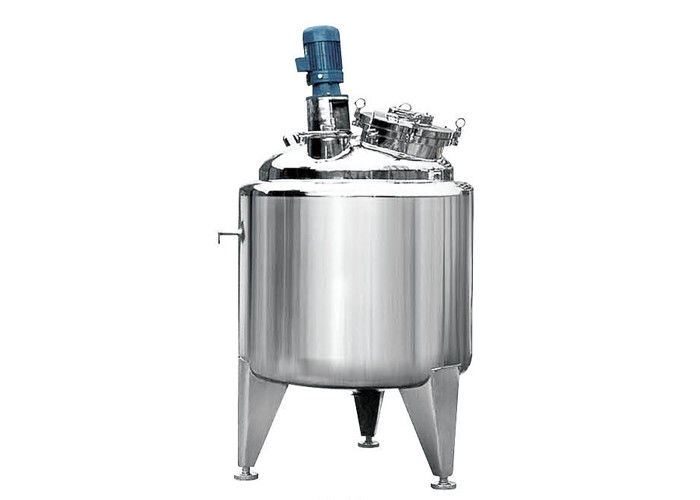

Stainless steel vertical single layer storage tank for thick preparation tank 8000L

Contact Now

Detailed Product Description

Product Name:	Thick Preparation Tank	Material Of Construction:	Stainless Steel SS304, 316L
Capacity:	200L To 8000Liters	Outer Surface Finish:	Mirror Polished, Matt Polished
Inner Surface Finish:	Mirror Polished Ra 0.28-0.45um,	Insulation Protection:	High Temperature Resistant Foam
High Light:	cartridge filter housing , stainless steel filter cartridges

Stainless steel vertical single layer storage tank for thick preparation tank 8000L

Specifications:

Description:

The storage tanks have heat preservation function, are manufactured, pressure tested and accepted according to "Stainless steel pressure containers", and " Manufacture of technical requirement on chemical industry"
The capacity range: 200L to 8000L, customized design available for option.
The instant joint on tank body is ISO standard, instant clamp, attached by high precision level meter, digital temperature meter, tank cleaner, man-hole, sight glass, and several insttant joints, etc
The body is made of imported 316L or SS304. Internal surface finish is mirror polished Ra0.28-0.45um, the external surface finish is mirror polished.
The heat preservation materials are high temperature resistant.

Optional types:

Stainless steel vertical single layer storage tank for thick preparation tank 8000L 0

Stainless steel vertical single layer storage tank for thick preparation tank 8000L 1

Application:

Technical data:

Model	CG SS storage tank / WFI storage tank / PW tank
Volume	200 - 8000 L
Materials of construction	SS304, 316L
Structure type	single layer, double layers, tri layers
Insulation materials	Rock wool, Polyurethane, Aluminum silicate
Jacket type	Full jacket, Coil jacket, Dimple Jacket,
Intallation type	Vertical, horizontal, support legs
Outernal surface finish	Mechanical polish, electro polish, Matt, Sand blast, 2B
Inner surface finish	Mirror polished Ra 0.28µm - 0.45µm
Accessories	Vent filter, Clean ball, Temperature gauge, Sight glass, Rupture Disk
