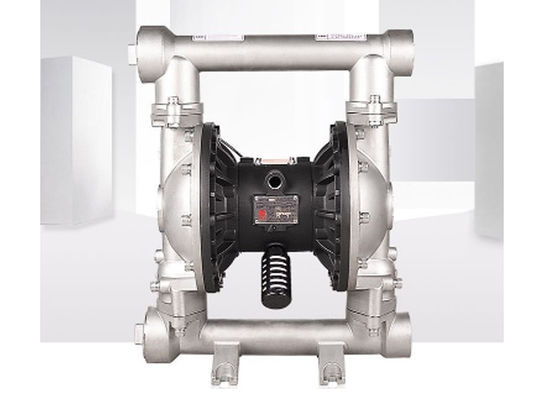

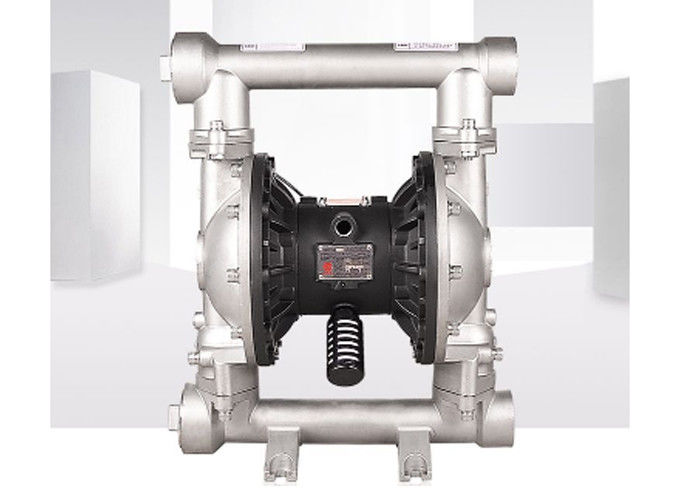

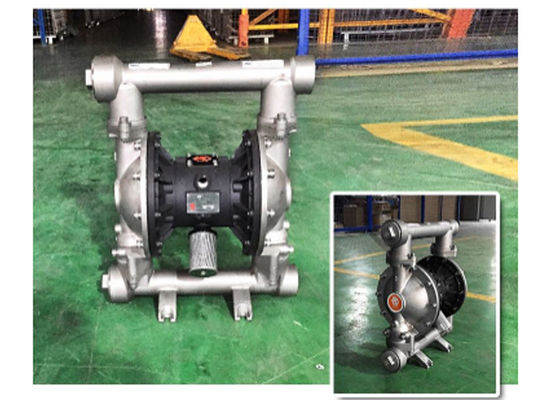

Dual diaphragm pump/Pneumatic Operated Diaphragm Pump: Viton/Tefon/PTFE/N Ruber
Descriptions
This 2 inch diaphragm pump is air powered diaphragm pump, or pneumatic double diaphragm pump. It's designed for large flow transfer of many kinds of liquid: flammable or explosive oil, paint, pigment, paper pulp, or viscous fluid such as syrup, cement, slurry, sewage, etc. The wet part options are: PP plastic, PVDF, stainless steel, aluminum alloy, cast steel, ductile iron.
Specification
| Max working pressure: |
100psi ( 0.7Mpa , 7bar) |
| Max flow rate: |
150 gpm ( 570 lpm ) |
| Max reciprocating speed: |
145cpm |
| Max suction height: |
5m |
| Max permitted grain: |
6mm |
| Max air consumption: |
175scfm ( 4.9m³/min ) |
| Air inlet size: |
1/2 in.npt (f) |
| Air outlet size: |
1/2 in.npt(f) |
| Fluid inlet size: |
2in.npt(f) |
| Fluid outlet size: |
2in.npt(f) |
| Weight: |
AL 29.0kg SST 47.0kg |
- Dry proof
- High suction capacity
- No electric components
- Discharge outlet with protection
- Solid external sturcture
- Vast compatibility of fluid media
- Reduced internanal volume minimize the waste and easily clean
- Stainless steel bolt are corrosion resistant, and offer you reasonable positioing and conveniently reassemble
- Unique designed three way control valve ensure no block operation, easily parts maintenance, no need lubrication for air pipeline
- Worn resistance parts ensures precisely positioning of stem and fast replacement
Product drawing:
Applications:
|
Waste water treatment, sludge, screening
|
Effluent treatment plant
|
Pharmaceutical feeds, transfer
|
|
Automotive wash, lube, oil
|
Ceramics mix & cast, glaze
|
Chemical injection, process
|
|
Pulp & paper batching, bleaching
|
Construction coating, dewatering
|
Food processing transfer, packaging
|
|
Marine bilge, cleaning
|
Mining utility, dewatering
|
Oil & gas transfer, clean up
|
FAQ
How much does a pneumatic diaphragm pump weigh?
The Air Operated Pneumatic Diaphragm Pumps weight depends on its port diameter, wet part material.
Where are the diaphragm pumps available?
We can offer a wide variety of diaphragm pump options to you, such as low pressure, high pressure, different diaphragm and wet part material.
Comptetitve advantage
The air-driven double diaphragm transfer pumps. No electrical components are required because the pumps are
air-driven. RD series pumps are run-dry safe and self-priming. The pump capacity can be controlled by changing
the pressure in the air supply. The air control is designed for oilfree operation. The RD series pumps are ideally
suited for the transport of liquid chemicals. It transports media at up 6,700 l/h and up to a discharge lift of 70 m.
As the pump capacity is highly dependent on the back pressure, the performance curve must always be observed.
At the sametime, the differential pressure between the hydraulic and pneumatic sides should not exceed 2 bar.
Higher values reduce the service life of the pump. When selecting pumps, check the material compatibility.
In addition, consider the density, viscosity and temperature of the transported medium.
