All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001 QMS / ISO14001 |
Model Number: | 252-2 |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD2500 - USD10000 |
Packaging Details: | wooden case |
Delivery Time: | 4-6 weeks |
Payment Terms: | L/C, , T/T, D/P |
Supply Ability: | 20 pieces per month |
Type: | Screw Press Dewatering Machine | DS Volume: | 2000 X 2000 Mm |
---|---|---|---|
Sludge Concentration: | 2000 Mg/L - 50000 Mg/L | Feed Reducer Motor: | 1.5 Kw |
Agitator Reducer Motor: | 0.18 Kw | Flush Pump: | 2 Kg / Cm2 |
Flush Water Flow: | 43 L/h | DS Water Content: | 75 - 80 % |
High Light: | industrial filter press,fully automatic filter press |

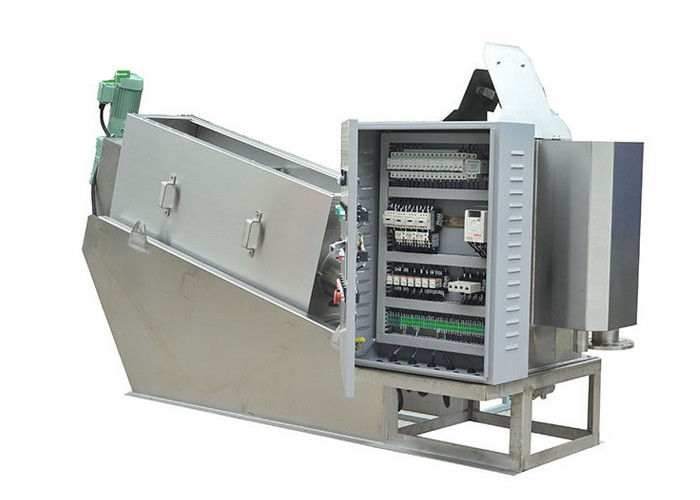

Stainless multi-disc dewatering machine for sewage treatment plant and slurry dewatering
The screw press dewatering machine starts running, the slurry is pushed into the filter cartridge from the feed inlet and then moves to the sludge cake outlet under the pushing of the helical axis blades.Because the gaps among the helical axis baldes will gradually getting narrower,the sludge is undering heavier pressure.Then the water gradually comes out from it as a result of pressure differential and issues from the filtering space between the fixed plates and the moving plates.Relying on the self-cleaning function of the fixed plates and the moving plates,block can be well avoided.At last,the sludge cakes are pushed by helical axis after being fully dewatered and then discharged from the outlet.
Description
The device is mainly used for sludge dewatering, the moisture content of sludge after dehydration can be down to 75% - 85%.
Volute sludge dewatering machine integrates full automatic control cabinet, flocculation conditioning tank, concentrated sludge dewatering ontology and collecting tank, can realise high efficiency flocculation under the condition of fully automatic operation, ensure continuous enrichment and squeezing sludge dewatering work, eventually collect the filtrate or discharge.
Features:
Specification
Model | DS treatment capacity(DS.KG/H) | Slurry Flow rate (M³/h) | ||||
10000mg/l | 20000mg/l | 25000mg/l | 50000mg/l | |||
(low concentration) | (High concentration) | |||||
KTDL131 | 5 | 10 | 0.5 | 0.5 | 0.4 | 0.2 |
KTDL132 | 10 | 20 | 1 | 1 | 0.8 | 0.4 |
KTDL251 | 15 | 30 | 1.5 | 1.5 | 1.2 | 0.6 |
KTDL252 | 30 | 60 | 3 | 3 | 2.4 | 1.2 |
KTDL301 | 30 | 60 | 3 | 3 | 2.4 | 1.2 |
KTDL302 | 60 | 120 | 6 | 6 | 4.8 | 2.4 |
KTDL303 | 90 | 180 | 9 | 9 | 7.2 | 3.6 |
KTDL304 | 120 | 240 | 12 | 12 | 9.6 | 4.8 |
KTDL351 | 50 | 100 | 5 | 5 | 4 | 2 |
KTDL352 | 100 | 200 | 10 | 10 | 8 | 4 |
KTDL353 | 150 | 300 | 15 | 15 | 12 | 6 |
KTDL354 | 200 | 400 | 20 | 20 | 16 | 8 |
KTDL401 | 80 | 160 | 8 | 8 | 6.4 | 3.2 |
KTDL402 | 160 | 320 | 16 | 16 | 12.8 | 6.4 |
KTDL403 | 240 | 480 | 24 | 24 | 19.2 | 9.6 |
KTDL404 | 320 | 640 | 32 | 32 | 25.6 | 12.8 |
Options
The Sludge Dewatering Press offers a completely operational, skid mounted and self-contained system which can include:
• Screw Press
• PLC Controls
• Sludge Pumps
• Back Wash System
• Flocculation System
• Polymer Dosing Unit
• Sludge Cake Conveyor

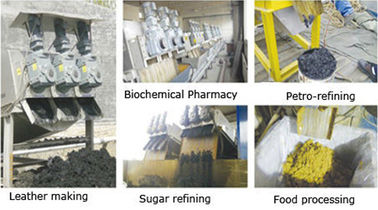

Applications
Municipal sewage | petro refining | leather making | printing and dyeing paper | paper & pulp | ||||||
coalification dressing | biochemical | pharmacy | steel pickling | chemicals | ||||||
sugar | food processing | food & beverage | mining | sludge treatment |
Competitive advantage
Multi-Disk Screw Press is a cutting edge sludge dewatering equipment with non-clogging design and low energy consumption, especially applicable for oily sludge.
