Stainless Electromagnetic Water Meter / Flow Meter For Sewage Water 1-15 M/S

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
Model Number:	EMF80

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	negotiable
Packaging Details:	carton
Delivery Time:	3 weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Application:	Waste Water	Tube Material:	Stainless
Liner Material:	Hard Rubber, PTFE	Flow Velocity Range:	1-15 M/s
Pressure Rating:	PN16, PN25, PN40 Mpa	Accuracy:	0.5% R
Pipe Dia.:	DN25-DN300	Connect Port:	Flange
Enclosure Protection:	IP68	Power Supply:	100-240 VAC / 18-36 VDC
High Light:	liquid flow meter , ultrasonic water meter

Battery powerred electromagnetic water meter, utilities, ISO4064

Basic introduction

Electromagnetic flowmeters are the best solution to measure conductive liquids with minimum conductivity of 5μS/cm, as they offer rapid response time, high measuring accuracy and long term stability.
No moving parts in the pipe and no obstruction to the liquid, with great advantage of no-pressure loss and virtually maintenance free system.
Our electromagnetic flowmeters cover a wide range of applications and satisfy every customer demand: flanged, wafer, threaded and insertions DN40 to DN1200 with pressure up to PN40.

Product Features

High accuracy and wide flow rate range measurement
Bi-directional measure
Empty pipe electrode supplied as a standard (≥ DN50)
Coupled with any Euromag converters
Pressure port integrated (on request)
In house wet calibration for all diameters (up to DN2000)
Robust, fully welded and potted construction
Standard solution for the widest range of industrial applications
Certified for use in ballast systems
External coating for offshore or subsoil installation. Optional paint certified for C4 class environment
Wide choice of materials for housing and flanges including SS304 and SS316

Applications

MUNICIPAL WATER
INDUSTRIAL LIQUID
WASTEWATER
IRRIGATION
CHEMICALS
POWER SUPPLY
PHARMACEUTICALS
FOOD
PAPER PLANTS
METALLURGICAL MINES

Technical parameters:
1. Diameter: DN50 - DN500
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID

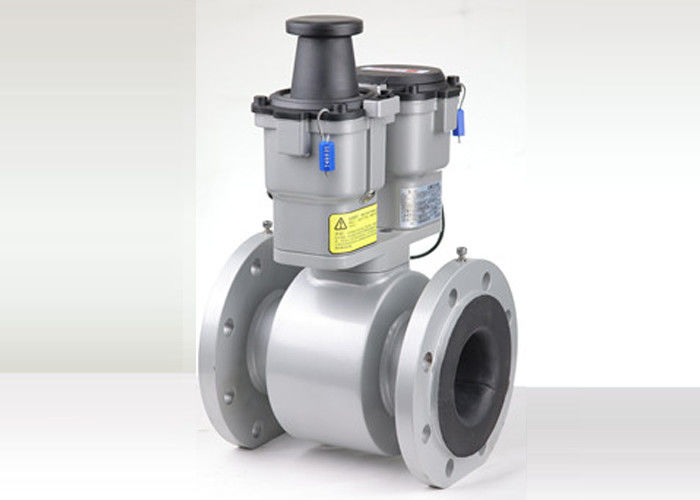

Stainless Electromagnetic Water Meter / Flow Meter For Sewage Water 1-15 M/S 0

Parameters

Product name	Electromagnetic flowmeter
Product type	Local\|compact display	Remote display	Signal converter
Model	IYF-E	IYF-F	IRT
Pipe Diameter (mm)	DN10-DN2000
Power supply	100-240 VAC / 18-36 VDC
Accuracy	+ 0.5%	+ 0.5%	+ 0.5%
Power consumption	<6w	<6w	<6w
Enclosure rating	IP65	IP68	IP65
Liquid temperature	-25-120℃	-25-120℃	-25-120℃
Ambient temperature	-25-50℃	-25-50℃	-25-50℃
Relative humidity	10-90%	10-90%	10-90%
Meter ratio	1:100	1:100	1:100
Flow direction	Bi-direction flow	Bi-direction flow	Bi-direction flow
Communication	RS485 / Bacnet	RS485 / Bacnet	RS485 / Bacnet
Signal Output	4-20mA/Pulse/Frequency	4-20mA/Pulse/Frequency	4-20mA/Pulse/Frequency

Measure Accuracy

Pipe Dia (mm)	Velocity (m/s)	Accuracy
3-20	<0.3	+ 0.25% FS
	0.3-1	+ 1.0% Readout
	1-15	+ 0.25% Readout
25-600	0.1-0.3	+ 0.25% FS
	0.3-1	+ 0.5% Readout
	1-15	+ 0.3% Readout
700-3000	<0.3	+ 0.25% FS
	0.3-1	+ 1.0% Readout
	1-15	+ 0.25% Readout

Applications:
Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities
