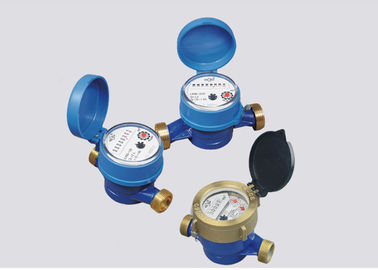

Single / Multi Jet Water Meter for residential measurements DN15 DN20

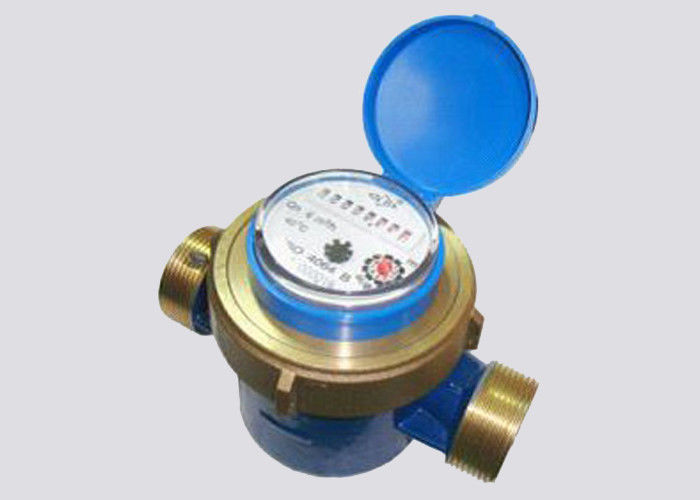

Single jet dry dial water meter for residential measurements of volumetric water flow Port DN25 Grey iron

This single jet water meter is dry dial type, vane wheel. Available in sizes 15mm to 25 mm with nominal flow rates of Qn 1.5m³/h to Qn 15m³/h. It's for cold water volumetric measurement, or hot water up to 90 ℃.

Feature:

• Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
• R value is R80
• Suitable for both cold and warm water applications
• Replaceable meter inserts available
• Good readability even at extreme operational conditions
• Optionally retrofittable with pulse contactors

Working condition:

• Water temperature:0.1℃～40℃ for cold water
  30℃～90℃ for hot water meter.
• Water pressure: ≤1.0 Mpa

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1)  Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

Flow error curve

Flow curve

Data sheet

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team
